XR 50 A - Weed Eater String Trimmer STARTER & SHROUD Parts Diagram

String Trimmer

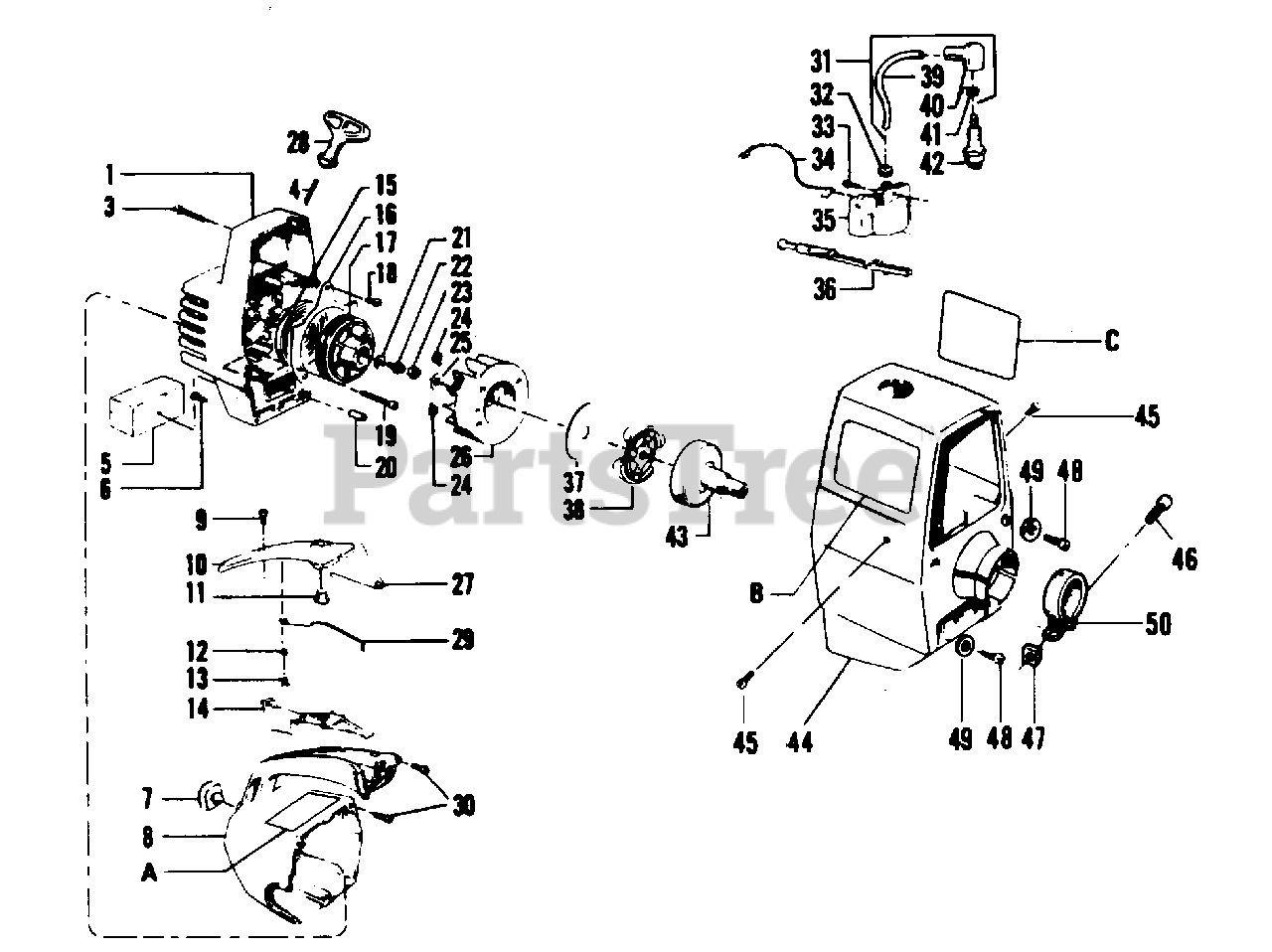

STARTER & SHROUD Parts Diagram

  • Title

1

Poulan 530069178

Fan Housing Kit

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 530015706

Screw-10-16 x 1-5/8"-Plastite Fan Housing-Top

$

$

Not available

4

Poulan 530069231

Rope Kit

$

$

Not available

5

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 530015582

Screw-10-24x5/8"-Sems-Fan Housing-Bottom

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530024436

Bumper-Fuel Tank Housing

$

$

Not available

8

Poulan 530024656

Handle & Fuel Tank Housing

$

$

Not available

9

Poulan 530015247

Screw-8-16x3/4" - Pan Hd.-Handle Cover

$

$

Not available

10

Poulan 530024661

Handle Cover

$

$

Not available

11

Poulan 530026679

Kill Switch Button

$

$

Not available

12

Poulan 530015412

Washer

$

$

Not available

13

Poulan 530015407

Screw-8-16x3/8-Pan Hd.-Kill Switch

$

$

Not available

14

Poulan 530024365

Throttle Trigger

$

$

Not available

15

Poulan 530042067

Starter-Recoil Spring
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

16

Poulan 530026035

Air Baffle

$

$

Not available

17

Poulan 530026048

Starter Pulley

$

$

Not available

18

Poulan 530015544

Screw #10-24x3/8"-Pan Hd.-Air Baffle

Note: If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563.

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530015563

Screw-#10-24x1-3/16"-Plastite

Note: If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563.

$

$

Not available

20

Poulan 530026122

Spacer-Air Baffle

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530015123

Washer-Starter Pulley

$4.99

$

In Stock, only 4 left!

0

22

Poulan 530015479

Screw-#10-24x3/4"-Hex Washer Hd.-Starter Pulley
(Superseded to 530071620)

$34.99

$

In Stock, Qty 9

0

23

Poulan 530626605

Nut-Flywheel

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530042059

Spring-Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

25

Poulan 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530039114

Flywheel Assembly (Inc.24)

$

$

Not available

27

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530026735

Starter Handle
(Superseded to 530027569)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 530024407

Kill Switch Spring

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530015367

Screw-10-14x3/4"-Pan Hd.-Fan Hsg. to Handle and Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 20+

0

31

Poulan 502039103

High Tension Lead Ass'y (Inc.39, 40, & 41)
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

32

Poulan 530024435

Grommet-Plug Wire

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015128

Screw-8-32x3/4"-Fil. Hd.-Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530024158

Lead Wire-Switch

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530069181

Module Kit

$

$

Not available

36

Poulan 530024303

Choke Knob

$

$

Not available

37

Poulan 530069196

Clutch Washer Kit

$

$

Not available

38

Poulan 530069194

Clutch Ass'y Kit (Incl. Clutch Washer)

$21.99

$

Usually ships in 3-10 days

0

39

Poulan 530039082

High Tension Lead Wire

$

$

Not available

40

Poulan 530003934

Spark Plug Boot

$

$

Not available

41

Poulan 530003933

Connector-Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

42

Poulan 530030077

Spark plug

$

$

Not available

43

Poulan 530010797

Coupling and Bearing Assembly

$

$

Not available

44

Poulan 530026547

Shroud

$

$

Not available

45

Poulan 530015590

Screw

$

$

Not available

46

Poulan 530015609

Bolt

$2.49

$

Usually ships in 3-10 days

0

47

Poulan 530015610

Nut

$0.99

$

Usually ships in 3-10 days

0

48

Poulan 530015163

Screw

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530015274

Washer

$0.99

$

Usually ships in 3-10 days

0

50

Poulan 530026560

Shroud Clamp

$2.49

$

Usually ships in 3-10 days

0

A

Poulan 530027633

Decal-Starting Instructions

$

$

Not available

B

Poulan 530027645

Decal-Shroud (Right)

$

$

Not available

C

Poulan 530027646

Decal-Shroud (Left)

$

$

Not available
