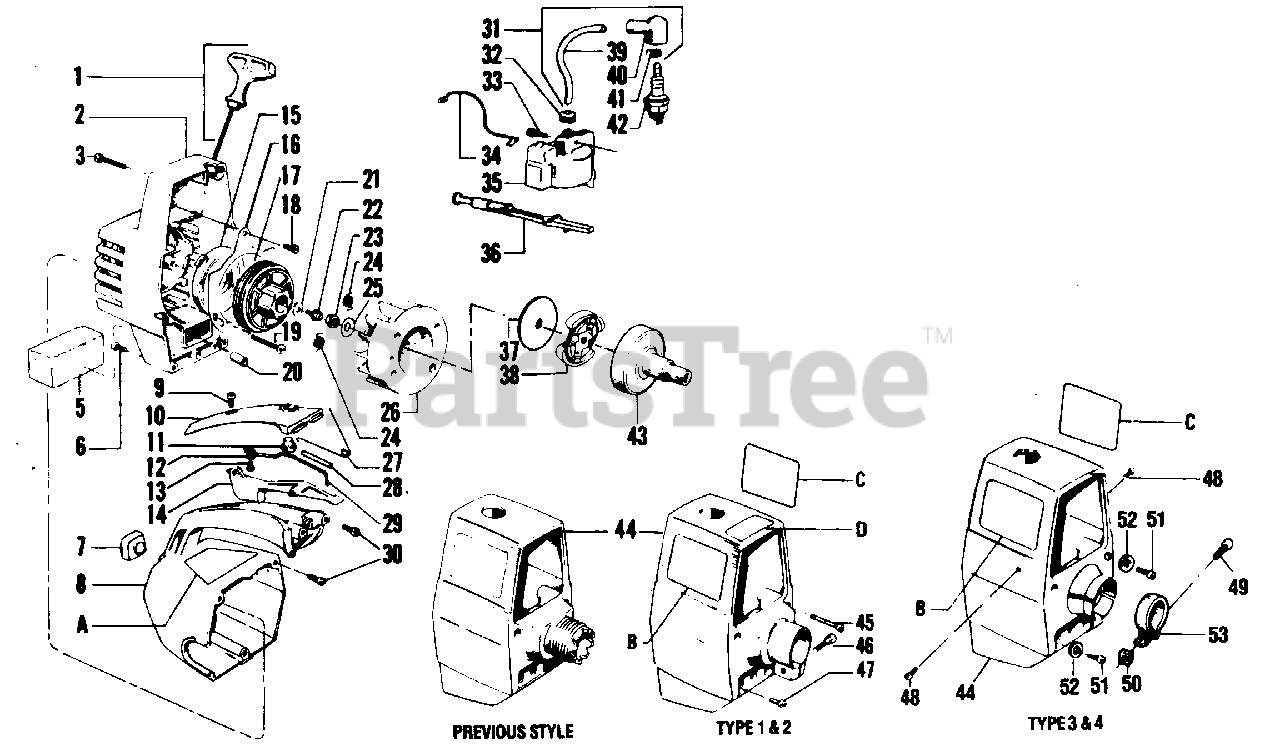

XR 50 - Weed Eater String Trimmer STARTER & SHROUD Parts Diagram

String Trimmer

STARTER & SHROUD Parts Diagram

  • Title

1

Rope & Handle - Starter, Models XR-50,XR-70 Type 1 - See Ser. Ref. 3

$

$

Not available

1

Rope & Handle - Starter, Model XR-50 Type 2, 3 & 4 See Ser. Ref.10

$

$

Not available

2

Poulan 530069178

Fan Housing (Incl. #16, 18, 19, 20 & 28) See Service Ref. 8

$46.99

$

Usually ships in 3-10 days

0

5

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 530024436

Bumper - Fuel Tank Housing

$

$

Not available

8

Poulan 530024656

Handle and Fuel Tank Housing

$

$

Not available

9

Poulan 530015247

Screw - 8 - 16x3/4" - Pan Hd. - Handle Cover

$

$

Not available

10

Poulan 530024661

Handle Cover

$

$

Not available

11

Poulan 530026679

Button - Kill Switch

$

$

Not available

12

Poulan 530015412

Washer - Kill Switch

$

$

Not available

13

Poulan 530015407

Screw - 8 - 16x3/8"-Pan Head -

$

$

Not available

14

Poulan 530024365

Trigger - Throttle

$

$

Not available

15

Starter Recoil Spring -, Models XR-50,XR-70 Type 1 - See Ser. Ref. 3

$

$

Not available

15

Poulan 530042067

Models XR-50 Type 2, 3 & 4
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

16

Poulan 530026035

Air Baffle

$

$

Not available

17

Starter Pulley (Incl. #21), Models XR-50,XR-70 Type 1 - See Ser. Ref. 3

$

$

Not available

17

Poulan 530026048

Starter Pulley (Incl. #21), Model XR-50 Type 2, 3 & 4

$

$

Not available

20

Poulan 530026122

Spacer

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530015123

Washer - Starter Pulley

$4.99

$

In Stock, only 4 left!

0

23

Poulan 530626605

Nut - Flywheel - 5/16x24" - Fil. Hd.

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

25

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530039114

Flywheel Assembly (Incl. #24)

$

$

Not available

27

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530021036

Insulation - Switch Spring

$

$

Not available

29

Poulan 530024407

Spring - Kill Switch

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530015367

Screw - 10 - 14x3/4" Pan Head Fan Hsg. to Handle & Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 20+

0

31

Poulan 502039103

BEVEL GEAR COMPLETE
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

Poulan 530039103

HIGH TENSION LEAD NLA

$

$

Not available

32

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015128

Screw - 8 - 32x3/4-Fil. Hd. -Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530024158

Lead Wire - Switch

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530069181

Kit - Ignition Module

$

$

Not available

36

Poulan 530024303

Knob - Choke

$

$

Not available

37

Poulan 530069196

Kit - Clutch - Washer

$

$

Not available

38

Poulan 530069194

Kit - Clutch Ass'y

Note: (Inc. Clutch Washer) See Ser. Ref.7, (For XR-50,XR-70 Type 1 Ref #1)

$21.99

$

Usually ships in 3-10 days

0

39

Poulan 530039082

High Tension Lead Wire

$

$

Not available

40

Poulan 530003934

Boot - Spark Plug

$

$

Not available

41

Poulan 530003933

Connector - Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

42

Poulan 530030077

Spark Plug - CJ-14

$

$

Not available

43

Poulan 530010797

Coupling and Bearing Assembly

$

$

Not available

44

Poulan 530011641

Previous Style

$

$

Not available

44

Poulan 530011778

Type 1 & 2

$

$

Not available

44

Poulan 530026547

Type 3 & 4

$

$

Not available

45

Poulan 530015376

Screw - Shroud (Top) - Type 1 & 2

$

$

Not available

46

Poulan 530093802

Bolt - Pinch Clamp - Type 1 & 2

$

$

Not available

47

Poulan 530015168

Screw - Shroud (Bottom) - Type 1 & 2

$

$

Not available

48

Poulan 530015590

Screw - Type 3 & 4

$

$

Not available

49

Poulan 530015609

Bolt - Type 3 & 4

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 530015610

Nut - Type 3 & 4

$0.99

$

Usually ships in 3-10 days

0

51

Poulan 530015163

Screw - Type 3 & 4

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 530015274

Washer - Type 3 & 4

$0.99

$

Usually ships in 3-10 days

0

53

Poulan 530026560

Clamp - Shroud - Type 3 & 4

$2.49

$

Usually ships in 3-10 days

0

A

Poulan 530026442

Models XR-50,XR-70 - Type 1

$

$

Not available

A

Poulan 530026636

Model XR-50 Type 2

$

$

Not available

A

Poulan 530027345

Model XR-50 Type 3

$

$

Not available

A

Poulan 530027452

Model XR-50 Type 4

$

$

Not available

B

Poulan 530024583

Model XR-50

$

$

Not available

B

Poulan 530024585

Model XR-70

$

$

Not available

C

Poulan 530024584

Model XR-50

$

$

Not available

C

Poulan 530024586

Model XR-70

$

$

Not available

D

Poulan 530024592

Decal - Shroud (Top) - Model XR-7Q

$

$

Not available
