XR 88 - Weed Eater String Trimmer CARBURETOR, FUEL TANK, & STARTER Parts Diagram

String Trimmer

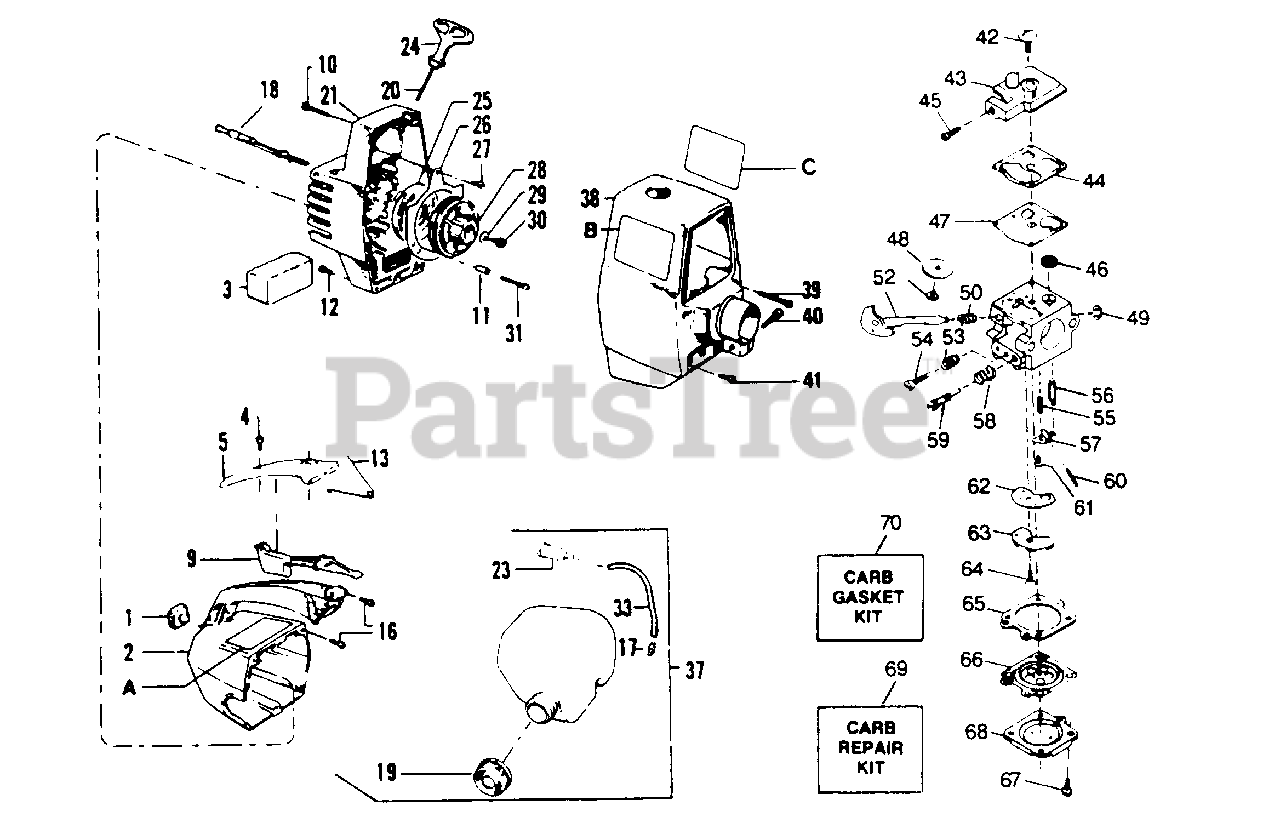

CARBURETOR, FUEL TANK, & STARTER Parts Diagram

  • Title

1

Poulan 530024436

Bumper-Fuel Tank Housing

$

$

Not available

2

Poulan 530024656

Handle & Fuel Tank Housing

$

$

Not available

3

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

4

Poulan 530015247

Screw-#8-16x3/4-Pan Hd. Handle Cover

$

$

Not available

5

Poulan 530024665

Handle Cover

$

$

Not available

9

Poulan 530024365

Throttle Trigger

$

$

Not available

10

Poulan 530015583

Screw-# 10-24x1-1/2"-Sems-Fan Housing Top

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530026122

Air Baffle Spacer

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530015582

Screw-# 10-24x5/8"-Sems Fan Housing-Bottom

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530024461

Spring-Trigger

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 530015367

Screw-# 10-14x3/4"-Pan Head-Fan Hag. to Handle & Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 20+

0

17

Poulan 530026981

Fuel Line Fitting

$6.49

$

In Stock, Qty 7

0

18

Poulan 530024303

Choke Knob

$

$

Not available

19

Poulan 530010729

Fuel Cap Assembly (incl. O-Ring)
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

20

Poulan 530069231

Rope Kit

$

$

Not available

21

Poulan 530069178

Fan Housing Kit

$46.99

$

Usually ships in 3-10 days

0

23

Poulan 530010897

Fuel Pick-up Assembly
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

24

Poulan 530026792

Handle Rope Kit

$

$

Not available

25

Poulan 530042067

Starter Recoil Spring
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

26

Poulan 530026035

Air Baffle

$

$

Not available

27

Poulan 530015544

Screw-# 10-14x3/8"-Pan Hd-Air Baffle

Note: If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544,

$0.99

$

Usually ships in 3-10 days

0

28

Poulan 530026048

Starter Pulley

$

$

Not available

29

Poulan 530015123

Washer-Starter Pulley

$4.99

$

In Stock, only 4 left!

0

30

Poulan 530015479

Screw-# 10x3/4" Hex Washer Hd.-Starter Pulley
(Superseded to 530071620)

$34.99

$

In Stock, Qty 9

0

31

Poulan 530015563

Screw-# 10-14x1-3/16" Air Baffle/Pump Mounting

Note: If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544,

$

$

Not available

33

Poulan 530069247

Line Kit

$6.49

$

In Stock, Qty 20+

0

37

Poulan 530010776

Fuel Tank Assembly (inc. 17-19,23,33)

$

$

Not available

38

Poulan 530011778

Shroud

$

$

Not available

39

Poulan 530015376

Screw- # 10-24 x 1-1/3"-Fil Hd.-Shroud (Top)

$

$

Not available

40

Poulan 530093802

BOLT

$

$

Not available

Poulan 506093802

HAND GUARD

$

$

Not available

41

Poulan 530015168

Screw- # 10-24x5/8"-Fil Hd.-Shroud Bottom

$

$

Not available

42

Poulan 530035017

Screw-Pump Cover

$0.99

$

Usually ships in 3-10 days

0

43

Poulan 530035191

Pump Cover Ass'y (incl #4)

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530035164

Gasket-Pump
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

45

Poulan 530035156

Screw-Idle Adjustment

$1.99

$

Usually ships in 3-10 days

0

46

Poulan 530035189

Screen-Inlet
(Superseded to 530035178)

Note: Included in Carburetor Kwik Repair Kit.

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530035166

Diaphragm-Pump
(Superseded to 504130807)

$6.49

$

In Stock, Qty 9

0

51

Poulan 530035015

Screw-Throttle Valve

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

52

Poulan 530035132

Shaft Assembly Throttle

$

$

Not available

53

Poulan 530035023

Spring-Idle Needle
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

54

Poulan 530035141

Needle-Idle

$2.99

$

Usually ships in 3-10 days

0

55

Poulan 530035139

Spring-Metering Lever
(Superseded to 530035188)

Note: Included in Carburetor Kwik Repair Kit.

$4.99

$

In Stock, Qty 11

0

56

Poulan 530035008

Valve-Inlet Needle

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

57

Poulan 530035031

Lever-Metering
(Superseded to 505520127)

Note: Included in Carburetor Kwik Repair Kit.

$5.99

$

Usually ships in 3-10 days

0

58

Poulan 530035036

Spring-Hi Speed Needle

$

$

Not available

59

Poulan 530035142

Needle-Hi Speed
(Superseded to 501782201)

$

$

Not available

60

Poulan 530035028

Pin-Metering Lever
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$3.49

$

In Stock, only 3 left!

0

61

Poulan 530035016

Screw-Metering Lever Pin

$3.49

$

In Stock, Qty 6

0

62

Poulan 530035147

Gasket-Circuit Plate
(Superseded to 501781301)

$

$

Not available

63

Poulan 530035042

Plate-Circuit

$

$

Not available

64

Poulan 530035137

Screw-Circuit Plate

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

65

Poulan 530035151

Gasket-Metering Diaphragm

$3.99

$

In Stock, Qty 8

0

66

Poulan 530035014

Diaphragm Assembly-Metering
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

67

Poulan 530035153

Screw Assembly-Metering Cover & Throttle Shaft Clip

$

$

Not available

68

Poulan 530035149

Cover-Metering Diaphragm

$

$

Not available

69

Poulan 530035185

Kit-Carb Kwik Repair

$36.99

$

In Stock, only 2 left!

0

70

Poulan 530035186

Kit-Carb Gasket/Diaphragm
(Superseded to 530069844)

$18.99

$

Usually ships in 3-10 days

0

A

Poulan 530027770

Start Inst. Fr./Eng.

$

$

Not available

B

Poulan 530027772

Model No. (R)

$

$

Not available

C

Poulan 530027771

Model No. (L)

$

$

Not available
