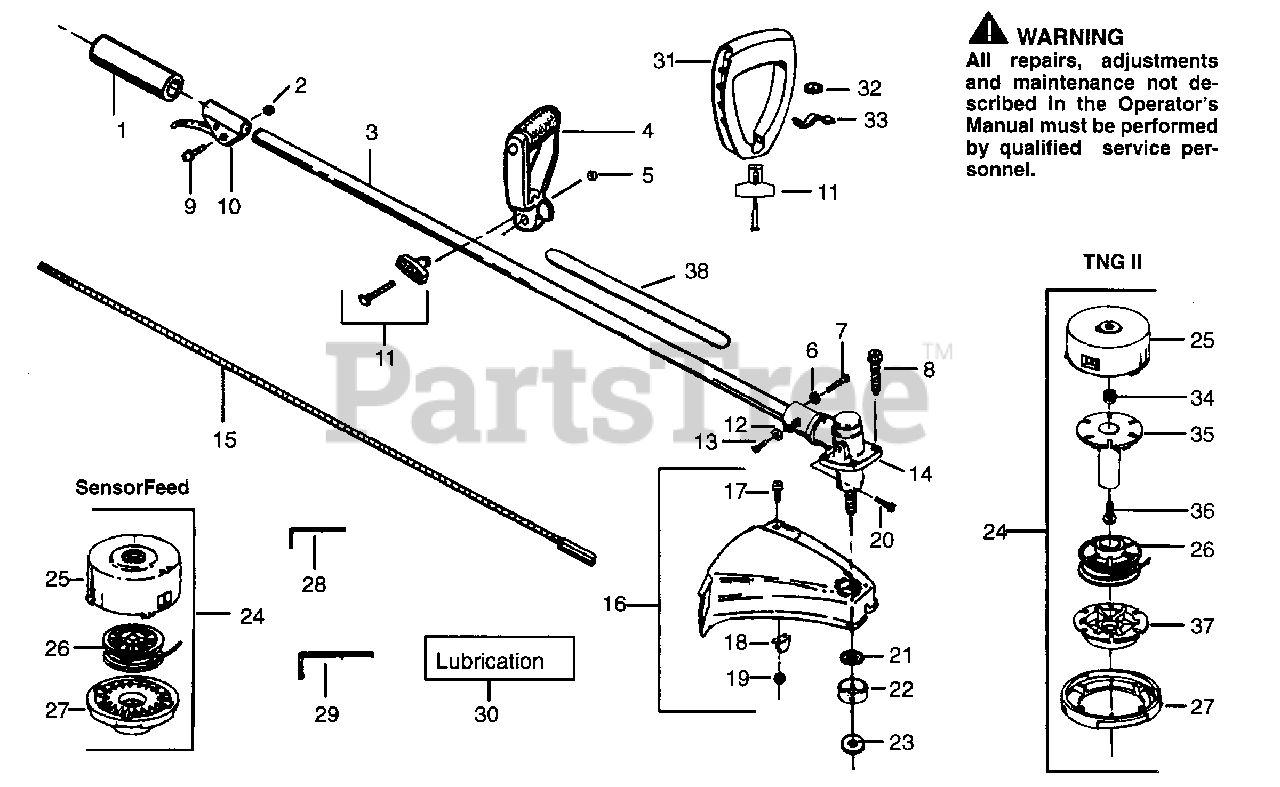

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530029445

Drive Shaft Grip

$

$

Not available

2

Poulan 530015768

Nut

$3.49

$

In Stock, Qty 12

0

3

Poulan 530094684

Drive Shaft Housing

$

$

Not available

4

Poulan 530010957

Handle

$

$

Not available

5

Poulan 530015197

Nut

$3.49

$

In Stock, only 3 left!

0

6

Poulan 530001642

Lockwasher

$

$

Not available

7

Poulan 530001711

Screw

$2.49

$

In Stock, only 1 left!

0

8

Poulan 530016107

Screw

$3.49

$

In Stock, Qty 11

0

9

Poulan 530015774

Screw

$3.99

$

In Stock, only 3 left!

0

10

Poulan 530010959

Throttle Lever Ass'y. w/ Lock

Note: (Incl. 2 & 9)

$

$

Not available

11

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

12

Poulan 530015328

Lockwasher

$

$

Not available

13

Poulan 530094612

Screw

$

$

Not available

14

Poulan 530094568

Gear Box Ass'y.
(Superseded to 530071781)

$

$

Not available

15

Poulan 530094585

Drive Shaft

$

$

Not available

16

Poulan 530069256

Shield Kit Ass'y.

Note: (Incl. 17-19)

$

$

Not available

17

Poulan 530015037

Screw

$

$

Not available

18

Poulan 530094570

Line Limiter

$7.99

$

In Stock, only 2 left!

0

19

Poulan 534235901

Locknut
(Superseded to 530403094)

$

$

Not available

20

Poulan 530094616

Screw

$

$

Not available

21

Poulan 530094640

Seal

$

$

Not available

22

Poulan 530094639

Dust Cup

$

$

Not available

23

Poulan 530094571

Grass Washer

$

$

Not available

24

Poulan 952701608

SensorFeed
(Superseded to 952701643)

$

$

Not available

24

Poulan 530094954

TNG II Single Exit

$

$

Not available

25

Poulan 530094557

SensorFeed
(Superseded to 952711550)

$

$

Not available

25

Poulan 530014274

TNG II

$

$

Not available

26

Poulan 952701607

SensorFeed

$7.99

$

Usually ships in 3-10 days

0

26

Poulan 952701606

TNG II
(Superseded to 952708510)

$

$

Not available

27

Poulan 530094494

Sensorfeed

$

$

Not available

27

Poulan 530094521

TNG II

$

$

Not available

28

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$3.49

$

In Stock, only 1 left!

0

29

Poulan 530031098

Hex Wrench (3/16)

$

$

Not available

30

Poulan 952030139

Shaft Lubrication
(Superseded to 952701570)

$

$

Not available

31

Poulan 530014222

Handle

$

$

Not available

32

Poulan 530015610

Nut

$

$

Not available

33

Poulan 530094742

Clamp

$

$

Not available

34

Poulan 530094956

Spring

$

$

Not available

35

Poulan 530069312

Locking Plate

$

$

Not available

36

Poulan 530015542

Screw

$

$

Not available

37

Poulan 530094522

Release Button

$

$

Not available

38

Poulan 530029159

Decal-Shaft Warning

$

$

Not available

Poulan 530067465

Operator's Manual

$

$

Not available
