XT 125 KT - Weed Eater String Trimmer CUTTING HEAD & SHROUD ASSEMBLIES Parts Diagram

String Trimmer

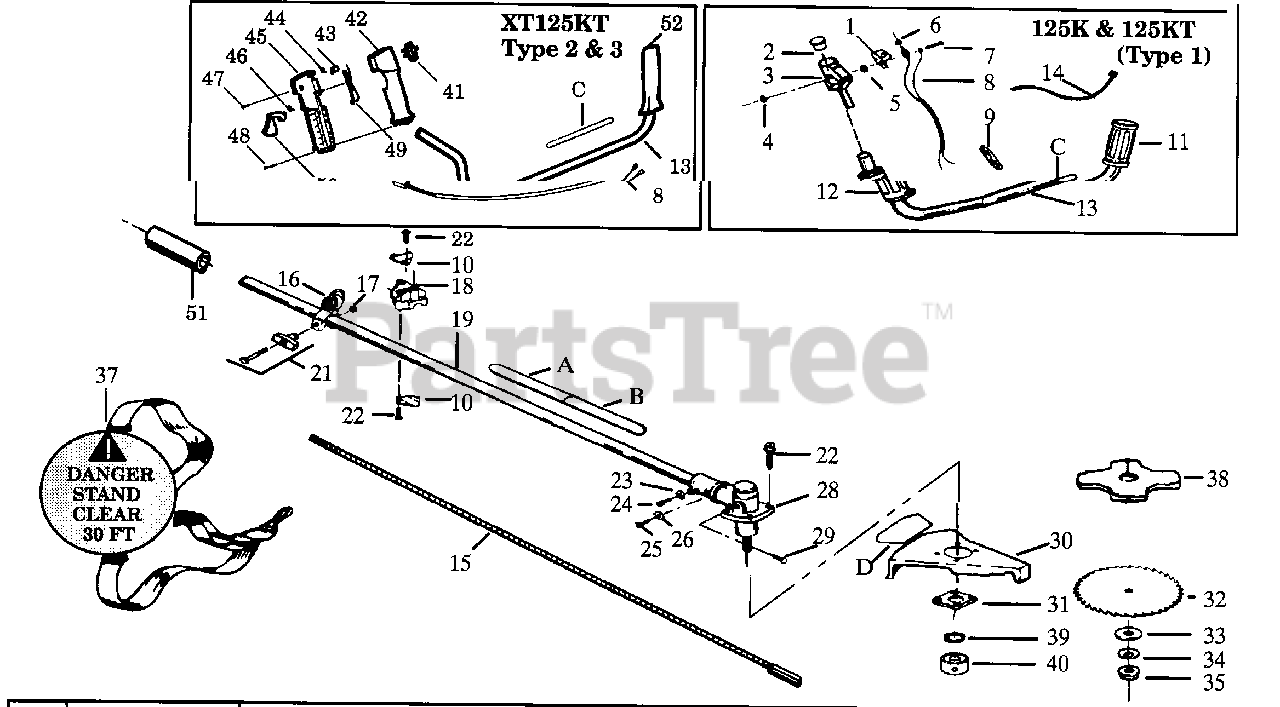

CUTTING HEAD & SHROUD ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530027900

Switch Bracket Type 1 Model XT125K,XT125KT

$

$

Not available

2

Poulan 530027588

Handlebar Cap Type 1 Model XT125K,XT125KT

$0.99

$

Usually ships in 3-10 days

0

3

Poulan 530010965

Throttle Lever Ass'y. w/Lock Type 1 Model XT125K,XT125KT

$

$

Not available

4

Poulan 530015768

Nut Type 1 Model XT125K,XT125KT

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530027689

Spacer Type 1 Model XT125K,XT125KT

$1.99

$

Usually ships in 3-10 days

0

6

Poulan 530023575

Nut Type 1 Model XT125K,XT125KT
(Superseded to 530002582)

$

$

Not available

7

Poulan 530015767

Screw Type 1 Model XT125K,XT125KT

$3.99

$

In Stock, only 2 left!

0

8

Poulan 530027726

Type 1 Model XT125K,XT125KT

$

$

Not available

8

Poulan 530047144

Types 2 & 3 Model XT125KT

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530027893

Terminal Lock Type 1 Model XT125K,XT125KT

$0.99

$

Usually ships in 3-10 days

0

10

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

11

Poulan 530027766

Handlebar Grip-Left Type 1 Model XT125K, XT125KT

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530027736

Handlebar Grip-Right Type 1 Model XT125K, XT125KT

$

$

Not available

13

Poulan 530014103

Type 1 Model XT125K,XT125KT

$21.99

$

Usually ships in 3-10 days

0

13

Poulan 530047139

Types 2 & 3 Model XT125KT

$

$

Not available

14

Poulan 530091426

Tie Strap Type 1 Model XT125K,XT125KT

$0.99

$

Usually ships in 3-10 days

0

15

Poulan 530094566

Drive Shaft

$78.99

$

Usually ships in 3-10 days

0

16

Poulan 530094686

Clamp Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

18

Poulan 530012207

Handlebar Clamp

$8.99

$

Usually ships in 3-10 days

0

19

Poulan 530094650

Drive Shaft Housing

$84.99

$

Usually ships in 3-10 days

0

21

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

22

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015328

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530094612

Screw

$0.99

$

Usually ships in 3-10 days

0

25

Poulan 530001711

Screw

$1.99

$

In Stock, only 1 left!

0

26

Poulan 530001642

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530094568

Gear Box Ass'y.
(Superseded to 530071781)

$

$

Not available

29

Poulan 530094616

Screw

$

$

Not available

30

Poulan 530094627

Shield
(Superseded to 530094633)

$

$

Not available

31

Poulan 530027615

Shield Retention Plate

$7.49

$

Usually ships in 3-10 days

0

32

Poulan 952701610

Brush Blade
(Superseded to 952711585)

$

$

Not available

33

Poulan 530015792

Washer

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, Qty 5

0

35

Poulan 530015793

Nut

$6.49

$

In Stock, Qty 10

0

37

Poulan 530094417

Shoulder Strap

$

$

Not available

38

Poulan 952701611

4 Point Blade (Optional)
(Superseded to 952711585)

$

$

Not available

39

Poulan 530094640

Seal

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 530094639

Dust Cup

$7.99

$

Usually ships in 3-10 days

0

41

Poulan 503718201

Rocker Switch Types 2 & 3 Model XT125KT

$13.99

$

In Stock, Qty 9

0

42

Poulan 502208502

Throttle Housing Left Types 2 & 3 Model XT125K
(Superseded to 502208507)

$24.99

$

Usually ships in 3-10 days

0

43

Poulan 502209602

Throttle Lock Types 2 & 3 Model XT125KT

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 502209701

Throttle Spring Types 2 & 3 Model XT125KT
(Superseded to 530403152)

$3.99

$

In Stock, only 4 left!

0

45

Poulan 502208602

Throttle Housing Right Types 2 & 3 Model XT125

$6.49

$

Usually ships in 3-10 days

0

46

Poulan 502199301

Trigger Spring Types 2 & 3 Model XT125KT
(Superseded to 503794101)

$6.99

$

In Stock, Qty 6

0

47

Poulan 503210719

Screw Types 2 & 3 Model XT125KT

$2.49

$

In Stock, only 1 left!

0

48

Poulan 503210738

Screw Types 2 & 3 Model XT125KT

$3.99

$

In Stock, only 4 left!

0

49

Poulan 502199403

Throttle Lockout Types 2 & 3 Model XT125KT

$

$

Not available

50

Poulan 502199203

Trigger Types 2 & 3 Model XT125KT

$

$

Not available

51

Poulan 530027706

Pad-Drive Shaft Housing

$

$

Not available

52

Poulan 502145101

Grip-Handlebar
(Superseded to 502145103)

$26.99

$

Usually ships in 3-10 days

0

53

Poulan 952701661

Brush Blade Kit

$

$

Not available

A

Poulan 530029162

Decal-Shaft Warning (Upper)

$

$

Not available

B

Poulan 530029163

Decal-Shaft Warning (Lower)

$

$

Not available

C

Poulan 530027884

Type 1 Model XT125K,XT125KT

Note: Not Shown.

$

$

Not available

C

Poulan 530037589

Types 2 & 3 Model XT125KT

Note: Not Shown.

$

$

Not available

D

Poulan 530027749

Decal-Blade Direction (Not a serviceable part)

Note: Not Shown.

$

$

Not available
