XT 24H42 LT (960120042-01) - Poulan Pro Lawn Tractor (2005) Seat Assembly Parts Diagram

Lawn Tractor

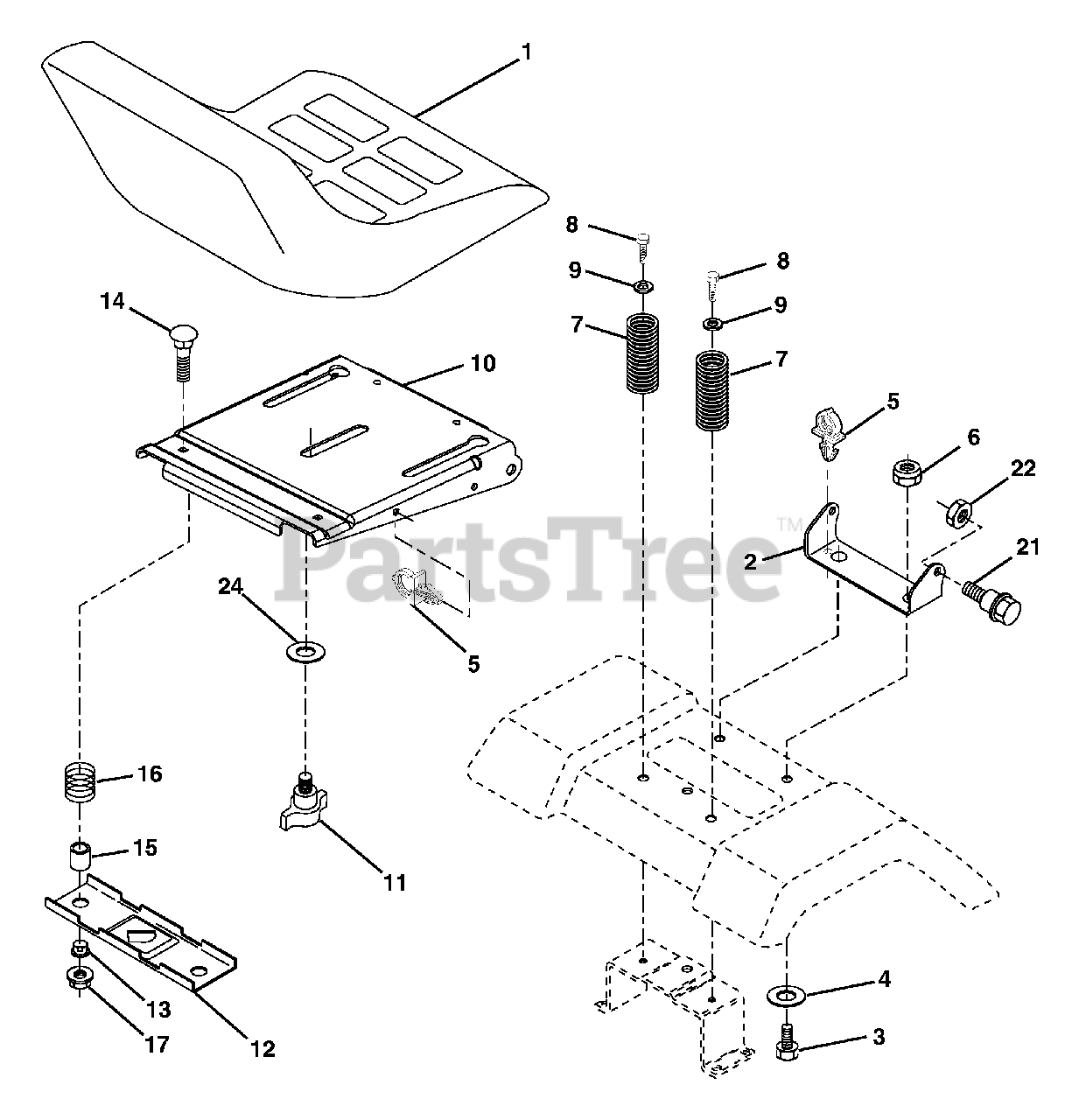

Seat Assembly Parts Diagram

  • Title

1

Electrolux/AYP 188705

Seat
(Superseded to 188704)

$109.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 180166

Bracket Pivot Seat
(Superseded to 532180166)

$10.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 71110616

Bolt Fin Hex 3/8-16 unc x 1
(Superseded to 871110616)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 19131610

Washer 13/32 x 1 x 10 Ga.
(Superseded to 819131610)

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 145006

Clip Push-In
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Nut Hex w/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 17000616

Screw 3/8-16 x 1.5 Smgml
(Superseded to 817000616)

$7.49

$

In Stock, Qty 13

0

9

Murray 19131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 180186

Pan Seat
(Superseded to 583227501)

$14.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 166369

Knob Seat
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 174648

Bracket Mounting Switch
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 121248X

Bushing Snap Blk Nyl 50 Id
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 72050412

Bolt Rdhd Sqnk 1/4-20 x 1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 134300

Spacer Split 28 x 96
(Superseded to 532134300)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 121250X

Spring Cprsn
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123976X

Nut Lock 1/4 Lge Flg Gr. 5 Zinc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 171852

Bolt Shoulder 5/16-18 unc
(Superseded to 532171852)

$4.99

$

In Stock, Qty 14

0

22

Electrolux/AYP 73800500

Nut Hex Lock W/Ins 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 19171912

Washer 17/32 x 1-3/16 x 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0
