XT 30 D - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

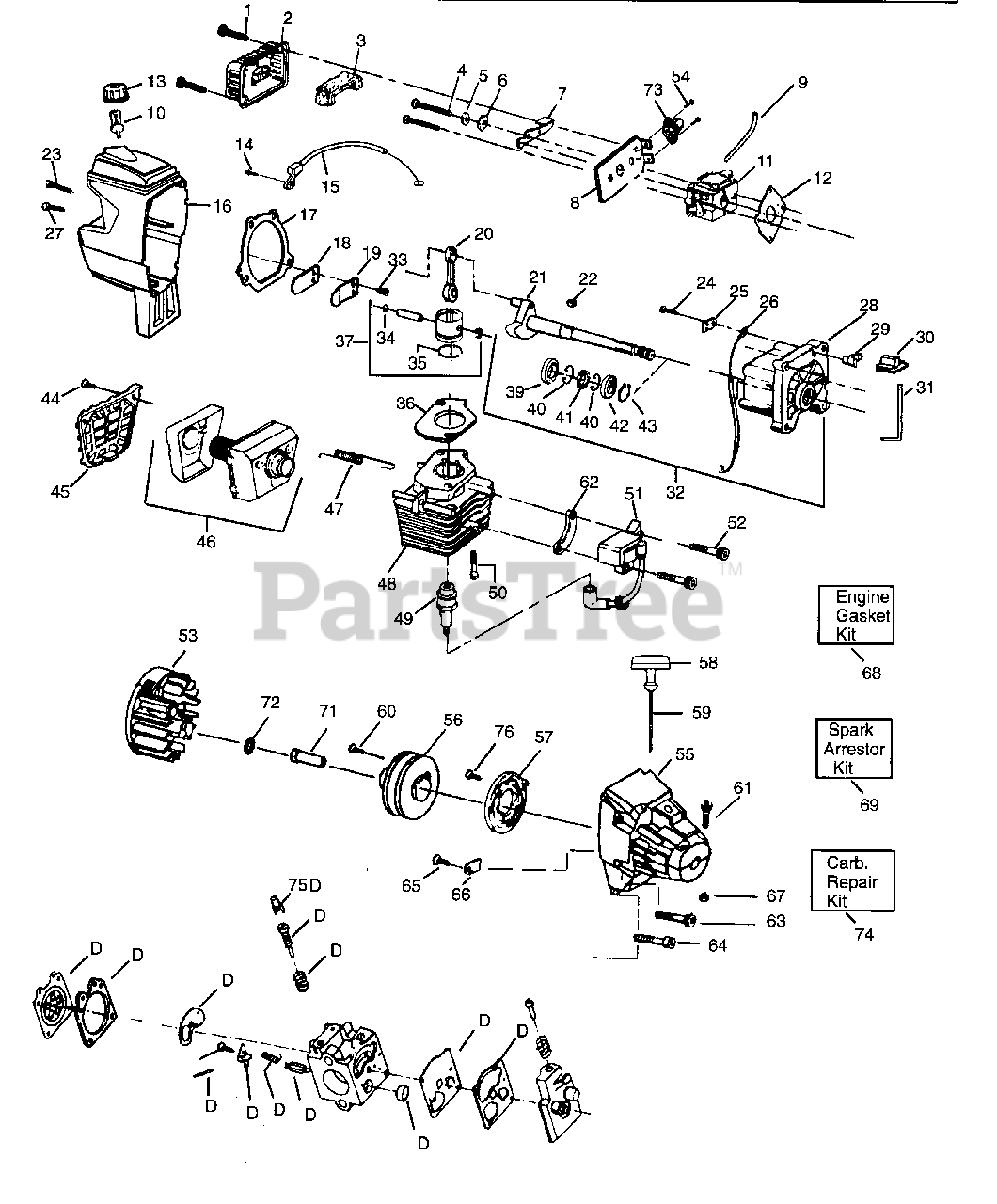

POWER UNIT Parts Diagram

  • Title

1

Poulan 530015773

Screw -Air Filter Cover

$3.99

$

In Stock, Qty 6

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 15

0

4

Poulan 530015849

Screw-Carburetor

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530038103

Choke Shutter

$

$

Not available

8

Poulan 530037930

Air Filter Plate

$

$

Not available

9

Poulan 530069247

Fuel Line

$6.49

$

In Stock, Qty 20+

0

10

Poulan 530069571

Return Line

$6.49

$

In Stock, Qty 11

0

10

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

11

Poulan 530069648

Carburetor (WA 219B) w/Limiter Cap

$

$

Not available

12

Poulan 530019156

Carburetor Gasket

$8.99

$

In Stock, only 3 left!

0

13

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

14

Poulan 530015775

Screw-Throttle Cable

$6.49

$

In Stock, only 2 left!

0

15

Poulan 530037498

Throttle Cable Ass'y.

$

$

Not available

16

Poulan 530047086

Shroud & Tank Ass'y.

$

$

Not available

17

Poulan 530019154

Crankcase/Shroud Gasket

$3.99

$

In Stock, only 1 left!

0

18

Poulan 530027593

Reed

$6.49

$

In Stock, only 4 left!

0

19

Poulan 530027594

Reed Stop

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530010960

Connecting Rod Ass'y. (Inc. Bearings)

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530010945

Crankshaft Ass'y.

$43.99

$

Usually ships in 3-10 days

0

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015772

Screw-Shroud

$3.99

$

In Stock, only 2 left!

0

24

Poulan 530015780

Screw-Lead Wire

$6.49

$

In Stock, only 3 left!

0

25

Poulan 530027546

Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530027547

Lead Wire

$

$

Not available

27

Poulan 530015771

Screw-Shroud

$6.49

$

In Stock, Qty 6

0

28

Poulan 530014016

Crankcase Ass'y. (Inc. 39-42)

$

$

Not available

29

Poulan 530027545

Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530038309

Cover-Kill Switch

$4.99

$

In Stock, Qty 8

0

31

Poulan 530027959

Switch Spring

$

$

Not available

32

Poulan 530014004

Crankcase & Crankshaft Ass'y (Inc. 21, 28, & 39-43)

$

$

Not available

33

Poulan 530016064

Screw-Reed

$4.99

$

In Stock, Qty 6

0

34

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530025875

Piston Ring

$

$

Not available

36

Poulan 530019178

Cylinder Gasket
(Superseded to 530019267)

$4.99

$

In Stock, Qty 6

0

37

Poulan 530069275

Piston Kit (Inc. 34,35 & pin)
(Superseded to 530069899)

$

$

Not available

39

Poulan 530032103

Inner Bearing

$

$

Not available

40

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530032102

Outer Bearing

$

$

Not available

43

Poulan 530015789

Crankshaft Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 530015717

Screw-Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

47

Poulan 530036409

Muffler Attachment Spring

$

$

Not available

48

Poulan 530069626

Cylinder

$

$

Not available

49

Poulan 530030075

Spark Plug (RCJ-8Y)

$

$

Not available

50

Poulan 530001624

Screw-Cylinder

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 530039134

Ignition Module Kit

$

$

Not available

52

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530047198

Flywheel Ass'y.

$

$

Not available

54

Poulan 530016091

Screw-Primer Bulb

$4.99

$

In Stock, only 1 left!

0

55

Poulan 530014045

Fan Housing

$19.99

$

Usually ships in 3-10 days

0

56

Poulan 530069291

Starter Pulley (INC. 60)
(Superseded to 530071387)

$

$

Not available

57

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

58

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

59

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

60

Poulan 530016080

Screw-Rope Retaining

$6.49

$

In Stock, Qty 11

0

61

Poulan 530015767

Screw-Pinch Camp

$3.99

$

In Stock, only 2 left!

0

62

Poulan 530027525

Spacer

$0.99

$

In Stock, only 1 left!

0

63

Poulan 530015770

Screw-Fan Housing

$

$

Not available

64

Poulan 530015769

Screw-Fan Housing

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 530015496

Screw-Retainer

$3.99

$

Usually ships in 3-10 days

0

66

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

67

Poulan 530015768

Locknut-Pinch Clamp

$6.49

$

In Stock, only 2 left!

0

68

Poulan 530069276

Engine Gasket Kit

$

$

Not available

69

Poulan 952701612

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

71

Poulan 530027953

Drive Coupling

$

$

Not available

72

Poulan 530015828

Washer

$4.99

$

In Stock, only 1 left!

0

73

Poulan 530038874

Primer Bulb Ass'y.

$8.99

$

Usually ships in 3-10 days

0

74

Poulan 530069667

Carburetor Repair Kit

$21.99

$

Usually ships in 3-10 days

0

75

Poulan 530038404

Limiter Cap

$3.99

$

Usually ships in 3-10 days

0

76

Poulan 530015882

Screw-Starter Spring

$

$

Not available

Poulan 530047489

Ass'y. Parts Bag

Note: Not Shown.

$

$

Not available
