XT 400 - Weed Eater String Trimmer, Type 1 Engine Assembly Type 1 Parts Diagram

String Trimmer, Type 1

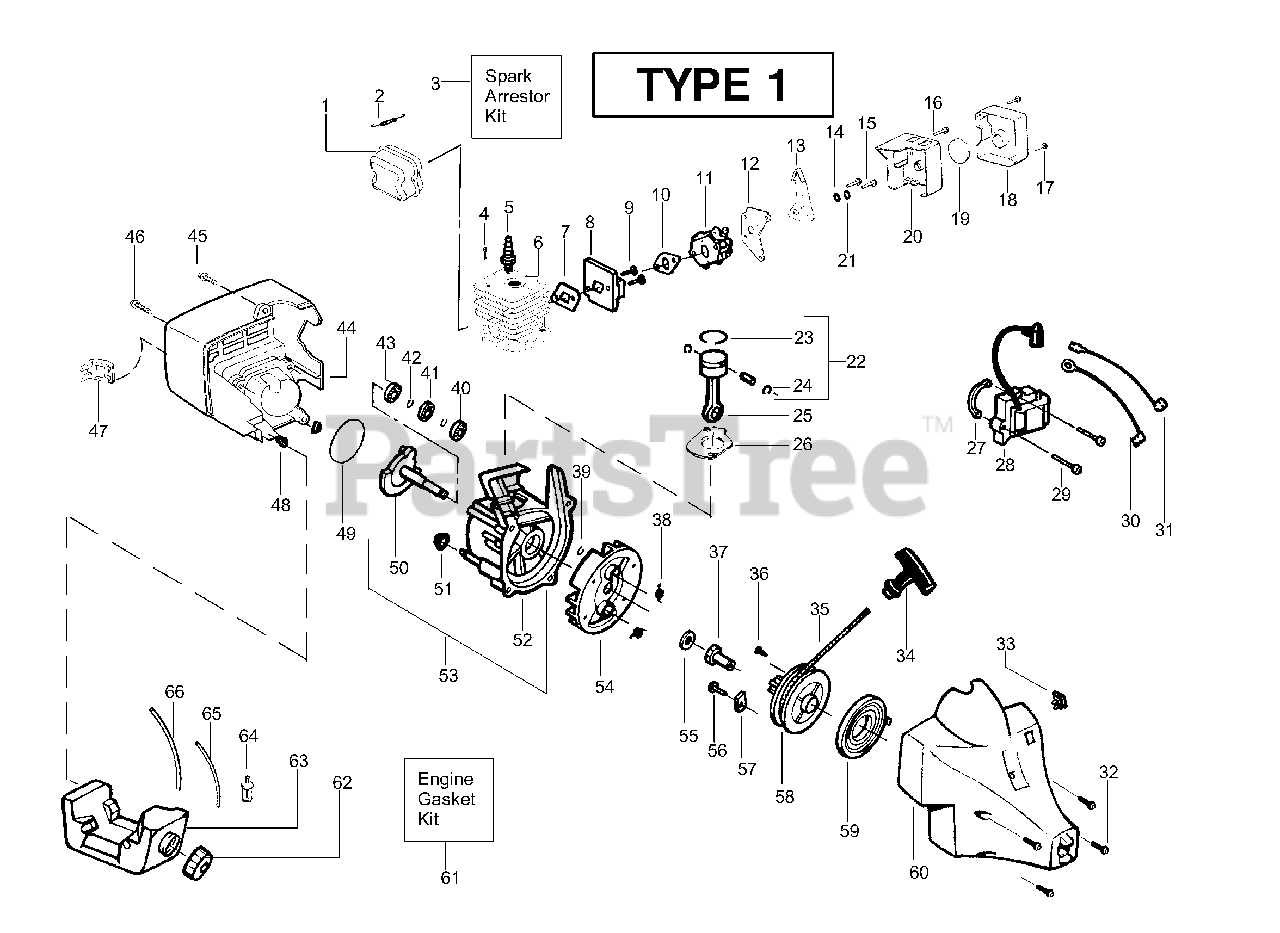

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530071390

Kit - Muffler

Note: (Incl. 2,3)

$18.99

$

Usually ships in 3-10 days

0

2

Poulan 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530071391

Kit-Spark Arrestor

$

$

Not available

4

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

5

Poulan 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

6

Poulan 530069757

Kit - Cylinder
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

7

Poulan 530071253

Gasket-Cylind./Carb.

$

$

Not available

8

Poulan 530069991

Kit - Carb. Adaptor

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

10

Poulan 530071253

Gasket-Carb.

$

$

Not available

11

Poulan 530069754

Kit - Carburetor Ass'y Walbro-(WA-226)

Note: (Incl. Limiter Cap)

$

$

Not available

11

Poulan 530069971

Kit - Carburetor Ass'y Zama-(C1U-W7)

Note: (Incl. Limiter Cap)

$

$

Not available

12

Poulan 530047914

Choke Plate Mounting

$

$

Not available

13

Poulan 530047916

Choke Lever

$

$

Not available

14

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

15

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

16

Poulan 530016141

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 530049079

Cover-Air Box

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530047932

Foam-Air Filter

$4.99

$

In Stock, Qty 12

0

20

Poulan 530047908

Box-Air

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

22

Poulan 530069987

Kit - Piston

Note: (Incl. 23, 24 & Pin)

$27.99

$

Usually ships in 3-10 days

0

23

Poulan 530012472

Piston Ring
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

24

Poulan 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 530069615

Assy-Connecting Rod

$24.99

$

Usually ships in 3-10 days

0

26

Poulan 530071253

Gasket-Cylinder

$

$

Not available

27

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

28

Poulan 530055160

Ignition Module

$46.99

$

Usually ships in 3-10 days

0

29

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 530049389

Assy-Ground Wire

$

$

Not available

31

Poulan 530049390

Assy-Leadwire

$

$

Not available

32

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

33

Poulan 530071356

Kit-Momentary Switch

$8.99

$

Usually ships in 3-10 days

0

34

Poulan 530027569

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

35

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

36

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

37

Poulan 530027953

Coupling-Drive

$

$

Not available

38

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

39

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530032124

Bearing-Outer

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 530019179

Seal-C'case

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 530015945

Retainer Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

44

Poulan 530049233

Shroud

$

$

Not available

45

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

46

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

47

Poulan 530054536

Guard-Muffler

$

$

Not available

48

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

49

O-Ring-C'case/Shrd

Note: See "Service Reference"

$

$

Not available

50

Poulan 530054083

Assy-Crankshaft

$

$

Not available

51

Poulan 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

52

Poulan 530012414

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl. 40-43)

$26.99

$

Usually ships in 3-10 days

0

53

Poulan 530014729

Assy-C'case & C'shaft

Note: (Incl. 39,50,52)

$

$

Not available

54

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

55

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

56

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

57

Poulan 530016226

Retainer-Can

$

$

Not available

58

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

Note: (Incl. 36)

$7.49

$

In Stock, Qty 12

0

59

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

60

Poulan 530049468

Assy-Fan Housing

$19.99

$

Usually ships in 3-10 days

0

61

Poulan 530071253

Kit-Engine Gasket

Note: (Incl. 7,10,26,49)

$

$

Not available

62

Poulan 530014347

Assy-Fuel Cap

$8.99

$

In Stock, Qty 5

0

63

Poulan 530049299

Assy-Fuel Tank

Note: (Incl. cap,filter,lines)

$

$

Not available

64

Poulan 530095646

Assy-Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

65

Poulan 530069247

Kit-Fuel Line

$6.49

$

In Stock, Qty 20+

0

66

Poulan 530069599

Kit-Fuel Line

$7.49

$

In Stock, Qty 20+

0
