XT 600 - Weed Eater String Trimmer, Type 1 Engine Assembly Type 1 Parts Diagram

String Trimmer, Type 1

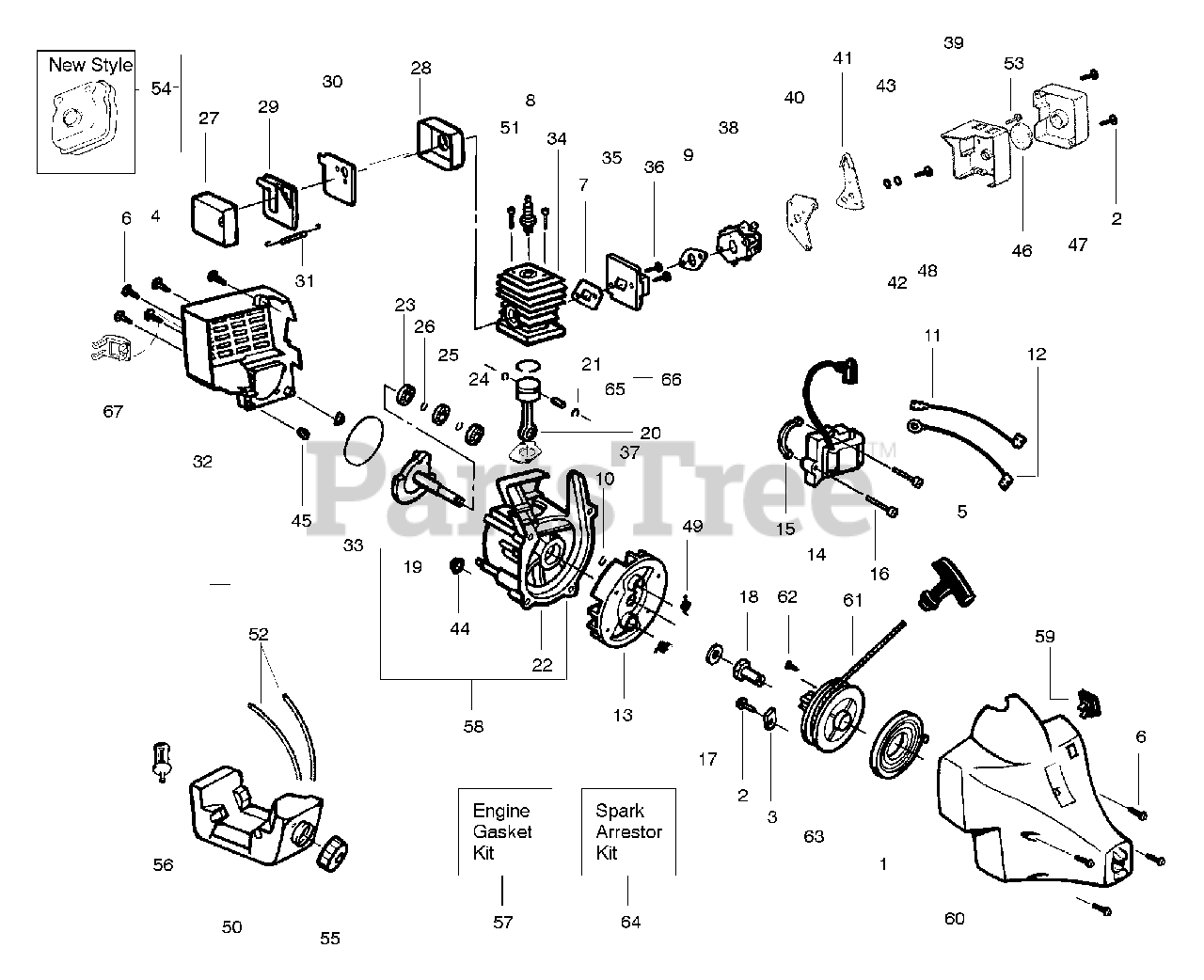

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530042086

Starter Spring
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

2

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530016226

Retainer-Pulley

$

$

Not available

4

Poulan 530015880

Screw-Shrd/Fan Hsg.

$4.99

$

In Stock, Qty 8

0

5

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Poulan 530071253

Gasket-Cyl./Carb.(kit)

$

$

Not available

8

Poulan 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

9

Poulan 530071253

Gasket-Carb.(kit)

$

$

Not available

10

Poulan 530015941

Retainer Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530049390

Lead Wire

$

$

Not available

12

Poulan 530049389

Ground Wire

$

$

Not available

13

Poulan 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Poulan 530055160

Ignition Module

$46.99

$

Usually ships in 3-10 days

0

15

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw-Module

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015828

Washer-Thrust

$4.99

$

In Stock, only 1 left!

0

18

Poulan 530027953

Drive Coupling

$

$

Not available

19

Poulan 530054083

Crankshaft Ass'y.

$

$

Not available

20

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 530012472

Piston Ring
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

22

Poulan 530012414

Crankcase Ass'y.
(Superseded to 530071627)

Note: (Incl 23-26)

$26.99

$

Usually ships in 3-10 days

0

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 530015945

Retain. Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 530053500

Muffler Baffle-Exit

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530053499

Muffler Baffle-First

$1.99

$

Usually ships in 3-10 days

0

31

Poulan 530016197

Muffler Spring Old Style

$4.99

$

In Stock, Qty 6

0

31

Poulan 530042088

Muffler Spring New Style

$3.99

$

In Stock, only 1 left!

0

32

Poulan 530049233

Rear Shroud

$

$

Not available

33

Poulan 530071253

Gasket-C'case (kit)

$

$

Not available

34

Poulan 530069757

Cylinder Kit
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

35

Poulan 530069991

Carb. Adaptor Kit

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530071253

Gasket-Cylinder (kit)

$

$

Not available

38

Poulan 530069754

Carburetor Ass'y Kit Walbro (WA226)

Note: (Incl. Limiter Cap)

$

$

Not available

38

Poulan 530069971

Carburetor Ass'y Kit Zama (C1U-W7)

Note: (Incl. Limiter Cap)

$

$

Not available

39

Poulan 530047908

Air Box

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530047914

Choke Plate

$

$

Not available

41

Poulan 530047916

Choke Lever

$

$

Not available

42

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

43

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

44

Poulan 530036792

Isolator-C'case

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

46

Poulan 530047932

Air Filter Foam

$4.99

$

In Stock, Qty 12

0

47

Poulan 530049079

Air Filter Cover

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

49

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

50

Poulan 530049299

Fuel Tank Ass'y

Note: (Incl. 55, 56, 70 &71)

$

$

Not available

51

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

52

Poulan 530069599

Fuel Line Kit

Note: (Incls. Vent Line)

$7.49

$

In Stock, Qty 20+

0

53

Poulan 530016141

Screw

$4.99

$

Usually ships in 3-10 days

0

54

Poulan 530069989

Muffler Kit Old Style

Note: (Incl. 27-31)

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 530071390

Muffler Kit New Style

Note: (Incl. 27-31)

$18.99

$

Usually ships in 3-10 days

0

55

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

56

Poulan 530095646

Fuel Pickup Ass'y.

$4.99

$

In Stock, Qty 20+

0

57

Poulan 530071253

Engine Gasket Kit

Note: (Incl. 7,9,33,37)

$

$

Not available

58

Poulan 530014729

C'case & C'shaft Assy.

Note: (Incl. 10,19,22-26)

$

$

Not available

59

Poulan 530071356

On/Off Switch

$8.99

$

Usually ships in 3-10 days

0

60

Poulan 530049468

Fan Housing Ass'y

$19.99

$

Usually ships in 3-10 days

0

61

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

62

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

63

Poulan 530069400

Starter Pulley Kit
(Superseded to 530071786)

Note: (Incl. 62)

$7.49

$

In Stock, Qty 12

0

64

Poulan 530069380

Spark Arrestor Kit Old Style

$6.49

$

Usually ships in 3-10 days

0

64

Poulan 530071391

Spark Arrestor Kit New Style

$

$

Not available

65

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 530069987

Piston Kit

Note: (Incl. 21, 65 & Pin)

$27.99

$

Usually ships in 3-10 days

0

67

Poulan 530054536

Guard-Muffler

$

$

Not available
