XT 600 - Weed Eater String Trimmer, Type 6 Handle, Chassis & Bar Assembly Type 6 Parts Diagram

String Trimmer, Type 6

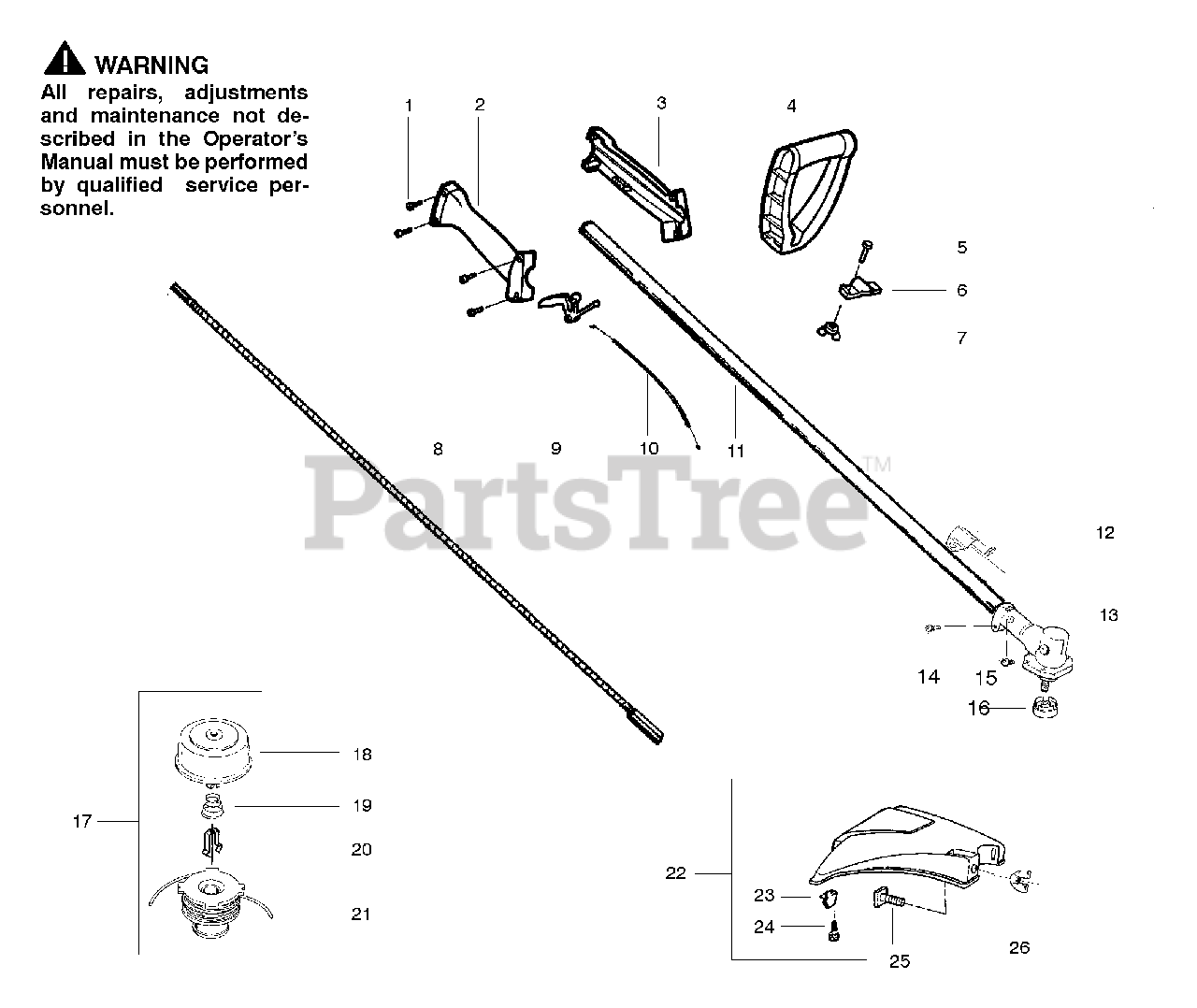

Handle, Chassis & Bar Assembly Type 6 Parts Diagram

  • Title

1

Poulan 530016179

Screw-Throttle Hsg.

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 530054990

Throttle Hsg. (Right)

$24.99

$

Usually ships in 3-10 days

0

3

Poulan 530054989

Throttle Hsg. (Left)

$

$

Not available

4

Poulan 530094673

Assist Handle
(Superseded to 530055699)

$11.99

$

Usually ships in 3-10 days

0

5

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 530094742

Clamp-Handle

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

8

Poulan 530095982

Shaft- Flex-52"

$13.99

$

Usually ships in 3-10 days

0

9

Poulan 530038682

Trigger

$3.99

$

In Stock, Qty 13

0

10

Poulan 530055546

Throttle Cable Ass'y.

$

$

Not available

11

Poulan 530071575

Assy-Drive Shaft

$43.99

$

Usually ships in 3-10 days

0

12

Poulan 530095812

Bracket

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530071584

Kit-Gear Box Assy.

$

$

Not available

14

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

15

Poulan 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

16

Poulan 530095814

Dust Cup

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 952711550

Cutting Head Ass'y.

Note: (incl. # 18-21)

$

$

Not available

18

Poulan 530095772

Hub Ass'y.

$

$

Not available

19

Poulan 530053241

Spring-Return

$

$

Not available

20

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 6

0

21

Poulan 952711551

Spool w/Line

$

$

Not available

22

Poulan 530069779

Kit-Shield Assy.

Note: (incl.# 23-26)

$

$

Not available

23

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530015805

Screw-Line Limiter
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

25

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

Poulan 530163441

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available
