XT 65 - Weed Eater String Trimmer Gas Trimmer/Cutting Head & Drive Shaft Parts Diagram

String Trimmer

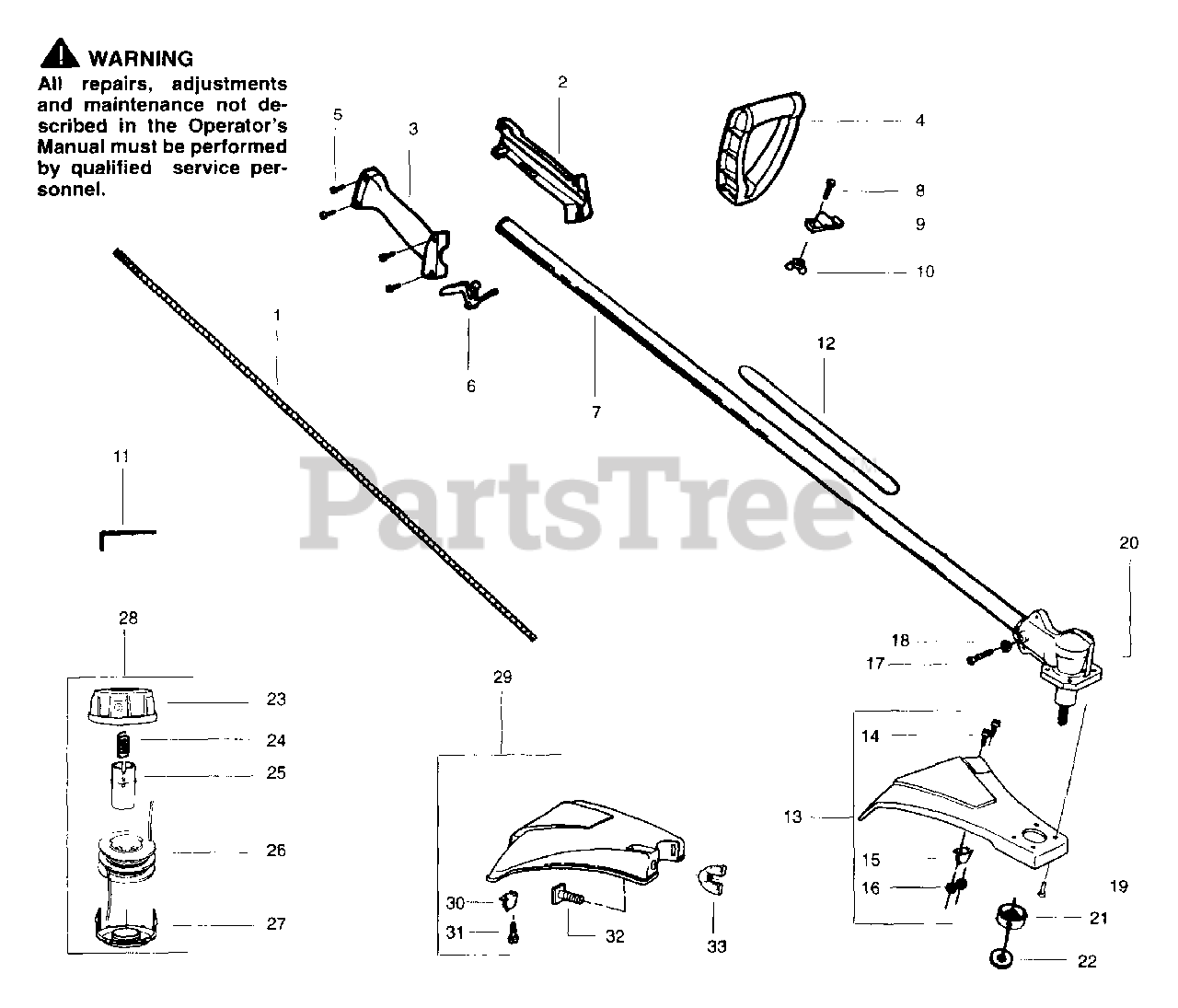

Gas Trimmer/Cutting Head & Drive Shaft Parts Diagram

  • Title

1

Poulan 530095151

Drive Shaft - 52"

$12.99

$

In Stock, only 1 left!

0

2

Poulan 530036514

Throttle Hsg (Left)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530036515

Throttle Hsg (Right)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530014222

Handle Ass'y

$

$

Not available

5

Poulan 530015966

Screw - Throttle Hsg

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530036556

Throttle Lever

$3.99

$

In Stock, only 2 left!

0

7

Drive Shaft Hsg Ass'y

$

$

Not available

7

Poulan 530095345

Drive Shaft Hsg Ass'y

Note: Use with metal shield

$

$

Not available

7

Poulan 530069781

Drive Shaft Hsg Ass'y
(Superseded to 530069782)

Note: Use with plastic shield

$72.99

$

Usually ships in 3-10 days

0

8

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530094742

Clamp

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530401992

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530031159

Hex Wrench 5/32

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530038908

Shaft Warning Decal

$

$

Not available

13

Poulan 530069681

Shield Kit Ass'y - Metal Shield

Note: Incl items 14, 15, 16 & 19

$

$

Not available

14

Poulan 530015636

Screw - Line Limiter

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

16

Poulan 530015768

Locknut - Line Limiter

$6.49

$

In Stock, only 2 left!

0

17

Poulan 530016140

Screw - Gear Box

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 530015328

Lockwasher - Gear Box

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530016141

Screw - Gear Box/Shield

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530047291

Gear Box Ass'y

$

$

Not available

21

Poulan 530095351

Dust Cup

$9.99

$

Usually ships in 3-10 days

0

22

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

23

Poulan 530047378

Hub Ass'y

$21.99

$

Usually ships in 3-10 days

0

24

Poulan 530094830

Spring

$3.99

$

In Stock, Qty 20+

0

25

Poulan 530094827

Release Button

$

$

Not available

26

Poulan 952701665

Spool w/Line
(Superseded to 530095255)

$

$

Not available

27

Poulan 530094828

Cover

$

$

Not available

28

Poulan 952701667

Cutting Head Ass'y
(Superseded to 530047298)

Note: Incl items 23-27

$34.99

$

Usually ships in 3-10 days

0

29

Poulan 530069779

Shield Kit Ass'y - Plastic Shield

Note: Incl items 30, 31, 32 & 33

$

$

Not available

30

Line Limiter

$

$

Not available

30

Poulan 530052285

Line Limiter - 17"

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530095387

Line Limiter - 18"

$1.99

$

Usually ships in 3-10 days

0

31

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

32

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 530401992

Wing Nut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

Poulan 530083781

Operator Manual

Note: Not Shown

$

$

Not available
