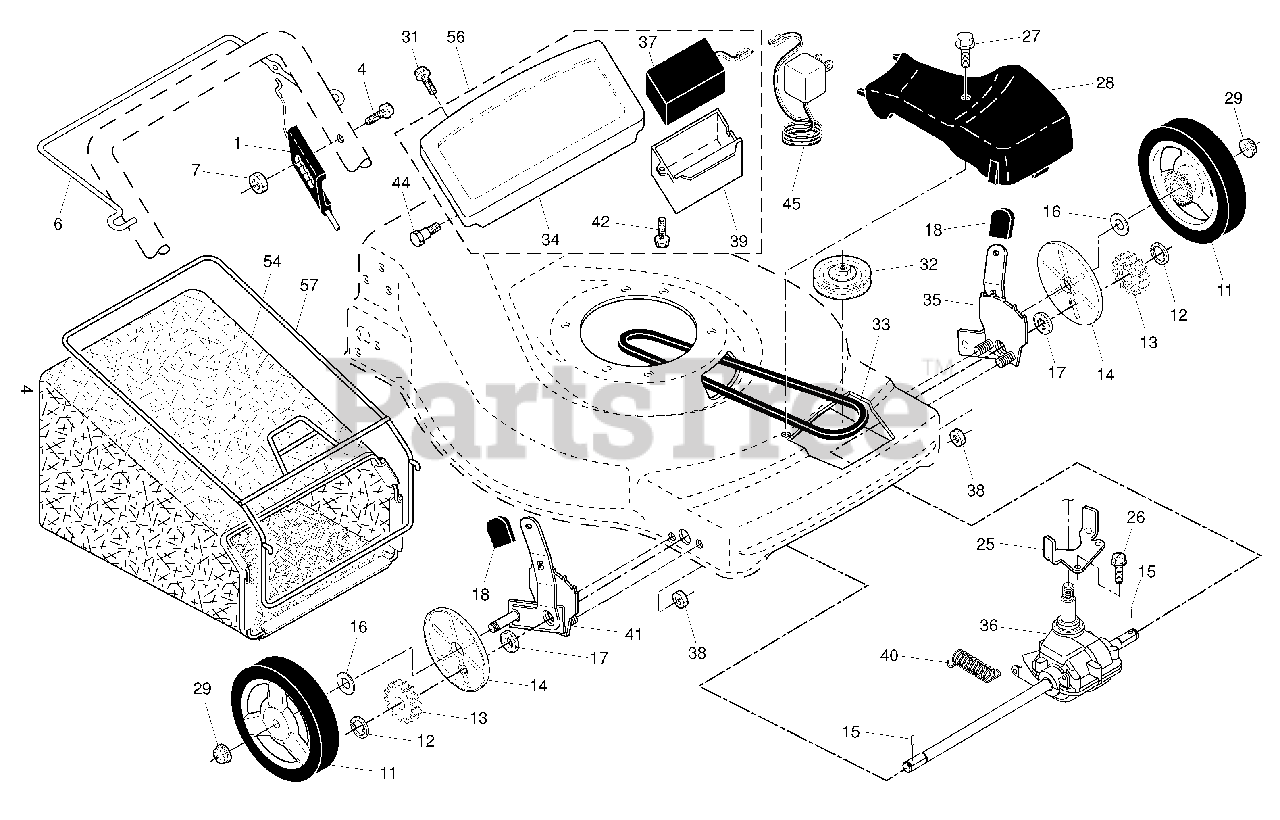

XT 722 FE (961430058-00) - Husqvarna 22" Walk-Behind Mower (2009-11) Drive Parts Diagram

22" Walk-Behind Mower

Drive Parts Diagram

  • Title

1

Husqvarna 532407816

Drive Control Assembly

Note: (Includes Cable)

$37.99

$

In Stock, only 2 left!

0

4

Husqvarna 532199687

Screw

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532199093

Bar, Drive Control

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191730

Nut, Hex

$7.49

$

In Stock, Qty 6

0

11

Husqvarna 532411081

Wheel & Tire Assembly
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-Ring

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

Gear, Pinion

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

Pawl, Drive

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

Washer, Flat 3/8

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532191039

Ball Bearing
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532411663

Belt Keeper
(Superseded to 532431711)

$

$

Not available

26

Husqvarna 532163409

Screw, Hi-Lo Thread

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

In Stock, only 4 left!

0

28

Husqvarna 532197370

Drive Cover
(Superseded to 532432666)

$

$

Not available

29

Husqvarna 532409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532141841

Screw, Torx Pan Head #20

$7.49

$

In Stock, only 2 left!

0

32

Husqvarna 532194018

Pulley, Drive
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

33

Husqvarna 532196857

V-Belt

$15.99

$

In Stock, Qty 13

0

34

Husqvarna 532411190

Trimplate

$34.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532424201

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532404834

Gear Case Assembly, Complete

$91.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532189589

Battery
(Superseded to 584353901)

$103.99

$

In Stock, only 4 left!

0

38

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532186237

Box, Battery

$7.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532406558

Spring

$8.99

$

In Stock, Qty 20+

0

41

Husqvarna 532424200

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$44.99

$

In Stock, only 3 left!

0

42

Husqvarna 817411308

Screw, Hex Head #13 x 1/2

$6.49

$

In Stock, only 1 left!

0

44

Husqvarna 532175551

Screw, Shoulder, Hex Head #10-28 x 5/8

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532190097

Charger, Battery
(Superseded to 532428626)

$24.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532425669

Grassbag Assembly

$

$

Not available

56

Husqvarna 532191252

Trimplate / Battery / Battery Box Assembly

$78.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532411952

Frame, Grassbag

$

$

Not available
