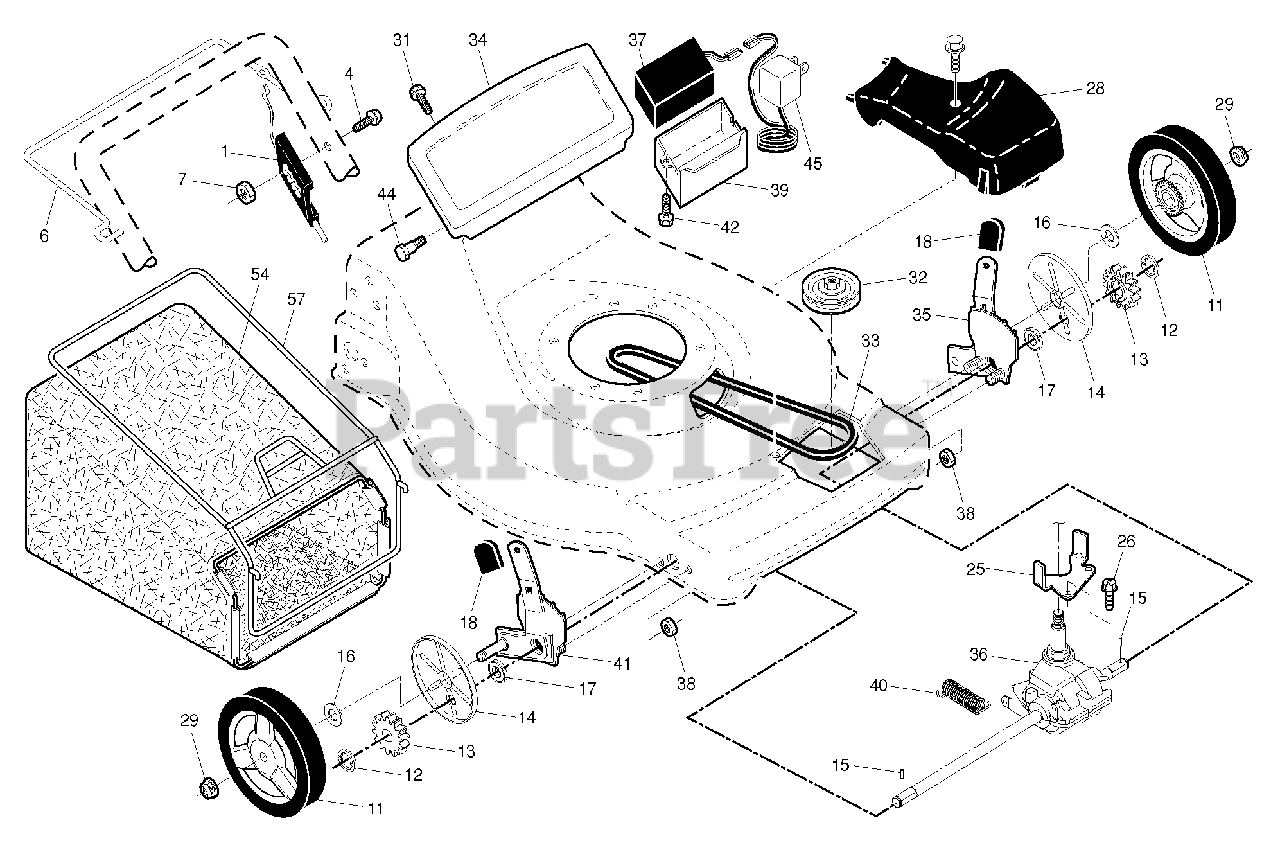

XT 722 FE (961430061-06) - Husqvarna 22" Walk-Behind Mower (2012-03) DRIVE Parts Diagram

22" Walk-Behind Mower

DRIVE Parts Diagram

  • Title

1

Husqvarna 532407816

CABLE.DR.VS.BOLT-ON.AUTO.FGD L

$37.99

$

In Stock, only 3 left!

0

4

Husqvarna 532199687

SCREW

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532199093

BAIL.CONT.DR.S/S.ROUND.ORG

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 9

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.49

$

In Stock, Qty 9

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532421836

RP BEARING.ASM.
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

28

Husqvarna 532432666

COVER.DR.ASM.194407X498.CE

$

$

Not available

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 4 left!

0

33

Husqvarna 532196857

BELT.DRIVE.FG

$15.99

$

In Stock, Qty 14

0

34

Husqvarna 532411190

PANEL.TRIM.21.FWGD.ES

$34.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532438485

KIT ADJUSTER ASM.438151.

Note: Includes Knob and Bearing

$44.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532404834

TRANSMISSION.22.VS.FWGD

$91.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532189589

BATTERY WITH AMP CONNECTOR
(Superseded to 584353901)

$103.99

$

In Stock, Qty 6

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532186237

BOX.BATTERY.TRIM

$7.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 20+

0

41

Husqvarna 532438486

KIT ADJUSTER ASM.438148

Note: Includes Knob and Bearing

$44.99

$

In Stock, only 3 left!

0

42

Husqvarna 817411308

SCREW.HWH.13-16X.50

$6.49

$

In Stock, only 1 left!

0

44

Husqvarna 532175551

SCREW.SHOULDER.HH.10X.281X.6

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532428626

RP CHARGER.12V.0.1A
(Superseded to 587007101)

$24.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532425669

GBAG.83230247T.SIL.HUSQ.BLU

$

$

Not available

57

Husqvarna 532411952

FRAME.GBAG.22.EZ.EMPTY.SC

$

$

Not available
