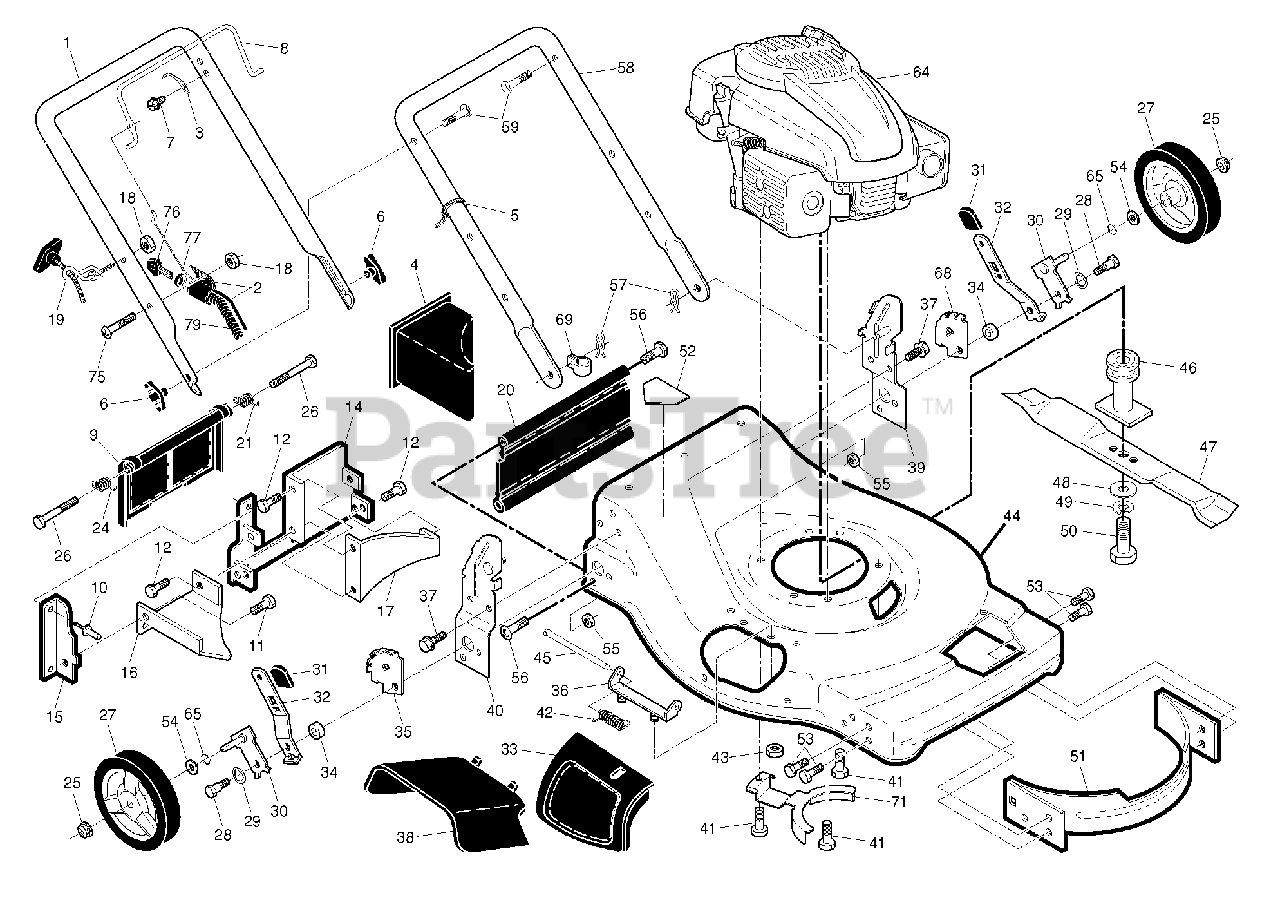

XT 722 FE (961430061-06) - Husqvarna 22" Walk-Behind Mower (2012-03) FRAME Parts Diagram

22" Walk-Behind Mower

FRAME Parts Diagram

  • Title

1

Husqvarna 532427663

HANDLE.ASM.UP.CREASED.GRE.W/GR

Note: Includes Foam Grip

$46.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532401994

CABLE.MZR.W/KEY.START SW.51.62

$31.99

$

In Stock, Qty 9

0

3

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 532166649

PLUG.MULCH.22RD

$

$

Not available

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532445019

KNOB.WING.PLASTIC.BLACK
(Superseded to 532185577)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

8

Husqvarna 532413185

BAIL.MZR.CREA.ORANGE

$34.99

$

In Stock, only 3 left!

0

9

Husqvarna 532408492

REAR DOOR ASSY
(Superseded to 532401813)

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 532197076

PLATE.BACK
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532411334

SIDE BAFFLE
(Superseded to 532410545)

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532177133

DISCHARGE BAFFLE
(Superseded to 532176655)

$

$

Not available

17

Husqvarna 532148941

REAR BAFFLE
(Superseded to 532140661)

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

20

Husqvarna 532413160

SKIRT.REAR.22RD/SD.FO/VE

$12.99

$

In Stock, Qty 9

0

21

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532184193

BOLT

$

$

Not available

27

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, Qty 20+

0

28

Husqvarna 532174719

BOLT SHOULDER 3/8 -16X1

$7.49

$

In Stock, Qty 5

0

29

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532407871

AXLE ARM ASSY.
(Superseded to 532401179)

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

33

Husqvarna 532197029

DOOR.MULCH.22.REAR.FWGD.GREY

$13.99

$

In Stock, only 2 left!

0

34

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER(2 2)3 2

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 532410624

WHEEL ADJUSTING BRACKET
(Superseded to 532407492)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

37

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

38

Husqvarna 532439430

DEFLECTOR.CLIPPING.22.FGD
(Superseded to 532403819)

$

$

Not available

39

Husqvarna 532419193

BRACKET.ASM.HDL.LT.EZEM.22.P

$12.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532419192

BRACKET.ASM.HDL.RT.EZEM.22.ORN

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532417405

HOUSING.22.TORUS.FWD.ORANGE.WA

Note: . 14 15 51

$182.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 20+

0

46

Husqvarna 532421248

RP ADAPTER.BLADE.25MM.21F
(Superseded to 532443950)

$

$

Not available

47

Husqvarna 532406713

BLADE.22.MULCH.STANDARD

$14.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532170031

FRONT BAFFLE KIT

$

$

Not available

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

54

Husqvarna 532088348

WASHER PM

$7.49

$

In Stock, Qty 9

0

55

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 4 left!

0

57

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

58

Husqvarna 532448694

HANDLE.LOWER.21FGD.ES.NB.PNT
(Superseded to 583757501)

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

64

000000000

Note: KOHLER XT173-3227-EA FOR SERVICE PARTS 1-800-544-2444

$

$

Not available

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 4 left!

0

68

Husqvarna 532410623

WHEEL ADJUSTING BRACKET LH
(Superseded to 532407493)

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

71

Husqvarna 532425711

BRACKET.KEEPER.BELT

$

$

Not available

75

Husqvarna 532186159

SCREW.(COMBINATION CONTROL)

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532180331

KEY.MOLDED

$8.99

$

In Stock, Qty 12

0

77

Husqvarna 532194848

NUT.CAP.SNAP-ON.KEY START

$7.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532409567

HARNESS.WIRING.CONTROL

$66.99

$

In Stock, only 1 left!

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)

$8.99

$

Usually ships in 3-10 days

0

Husqvarna 532425937

FUSE, 40A

Note: NOT SHOWN

$6.49

$

Usually ships in 3-10 days

0
