XT 85 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

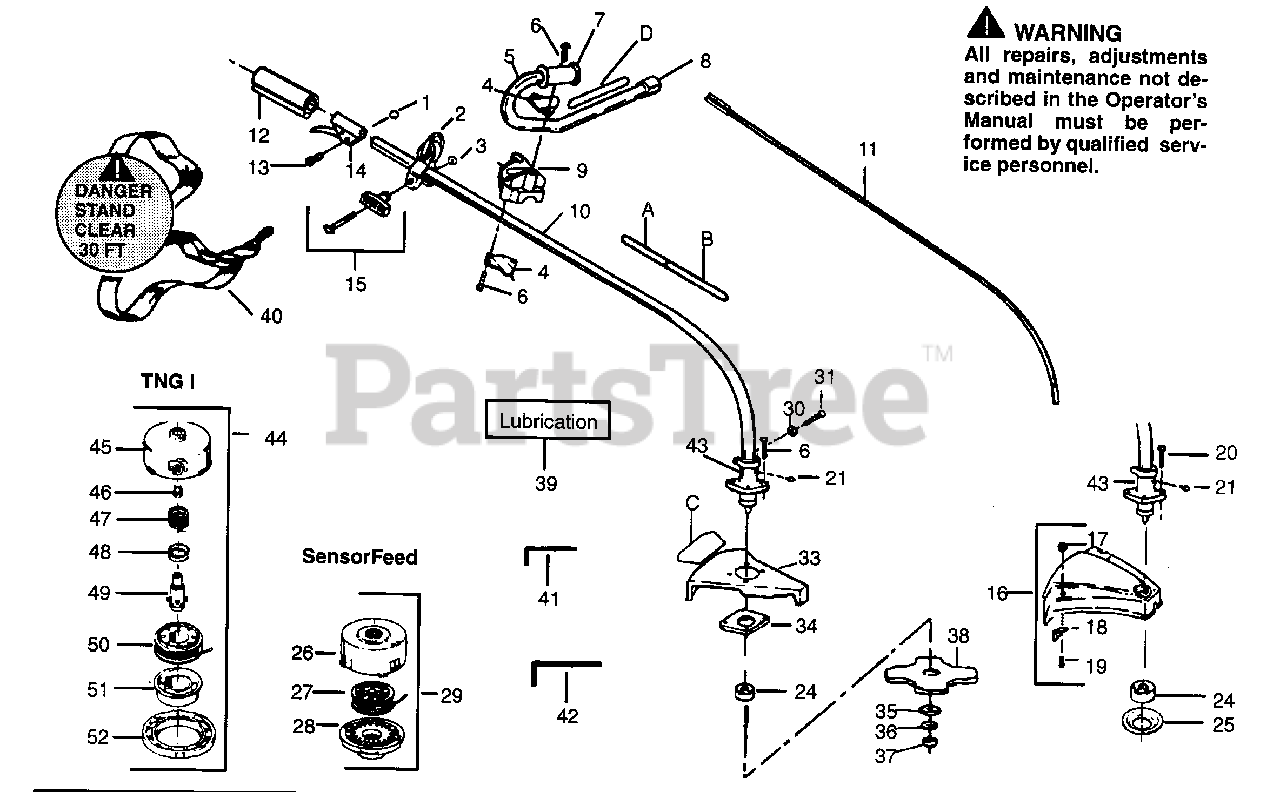

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530015768

Nut

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530094686

Clamp Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

3

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

4

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

5

Poulan 530010723

Handlebar

$

$

Not available

6

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530092086

Handlebar Grip

$

$

Not available

8

Poulan 530092192

Handlebar Cap

$0.99

$

Usually ships in 3-10 days

0

9

Poulan 530012207

Handlebar Clamp

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530014965

Type 1 & 2

$

$

Not available

10

Poulan 530095338

Type 3

$

$

Not available

11

Poulan 530094555

Drive Shaft

$

$

Not available

12

Poulan 530029445

Drive Shaft Grip

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 530015774

Screw

$6.49

$

In Stock, only 3 left!

0

14

Poulan 530010959

Throttle Lever Ass'y. (Inc. 1 & 13)

$

$

Not available

15

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

16

Poulan 530069256

Shield Kit Ass'y. (Inc. 17-19)

$

$

Not available

17

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

19

Poulan 530015037

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 530016107

Screw

$3.99

$

In Stock, Qty 11

0

21

Poulan 530015518

Screw

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 530092359

Dust Cup

$

$

Not available

25

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

26

Poulan 530094592

Hub Ass'y.

$

$

Not available

27

Poulan 952701607

Spool w/Line

$

$

Not available

28

Poulan 530094494

Cover

$

$

Not available

29

Poulan 952701605

Cutting Head Ass'y (Inc. 26-28)

$

$

Not available

30

Poulan 530092227

Washer

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 534828400

Screw

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 530094627

Shield
(Superseded to 530094633)

$

$

Not available

34

Poulan 530027615

Shield Retention Plate

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 530015792

Washer

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, Qty 5

0

37

Poulan 530093748

Nut

$

$

Not available

38

Poulan 952701546

Weed Blade

$

$

Not available

39

Poulan 952030139

Shaft Lubrication
(Superseded to 952701570)

$

$

Not available

40

Poulan 530094417

Shoulder Strap

$

$

Not available

41

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

42

Poulan 530031098

Hex Wrench (3/16)

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 530094581

Bearing Hsg. Ass'y. (Inc. 21 & 24)

$

$

Not available

44

Poulan 952701574

Cutting Head Ass'y. (Inc. 45-52)
(Superseded to 952711547)

$

$

Not available

45

Poulan 530093896

Hub Ass'y.
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

46

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530092068

Spring Cap
(Superseded to 530328929)

$

$

Not available

49

Poulan 530093897

Drive Gear

$9.99

$

Usually ships in 3-10 days

0

50

Poulan 952701523

Spool w/Line

$

$

Not available

51

Poulan 530401183

Release Button

$

$

Not available

52

Poulan 530092133

Cover

$

$

Not available

A

Poulan 530029160

Decal-Shaft Warning-Upper

$3.99

$

Usually ships in 3-10 days

0

B

Poulan 530029161

Type 1 & 2

$

$

Not available

B

Poulan 530038906

Type 3

$

$

Not available

C

Poulan 530027749

Decal-Blade Direction (Not a serviceable part)

$

$

Not available

D

Poulan 530027774

Decal-Handlebar

$

$

Not available
