XT1-LT 42 (13A6A9CS010) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2020) Electrical Parts Diagram

42" XT1 Enduro Lawn Tractor

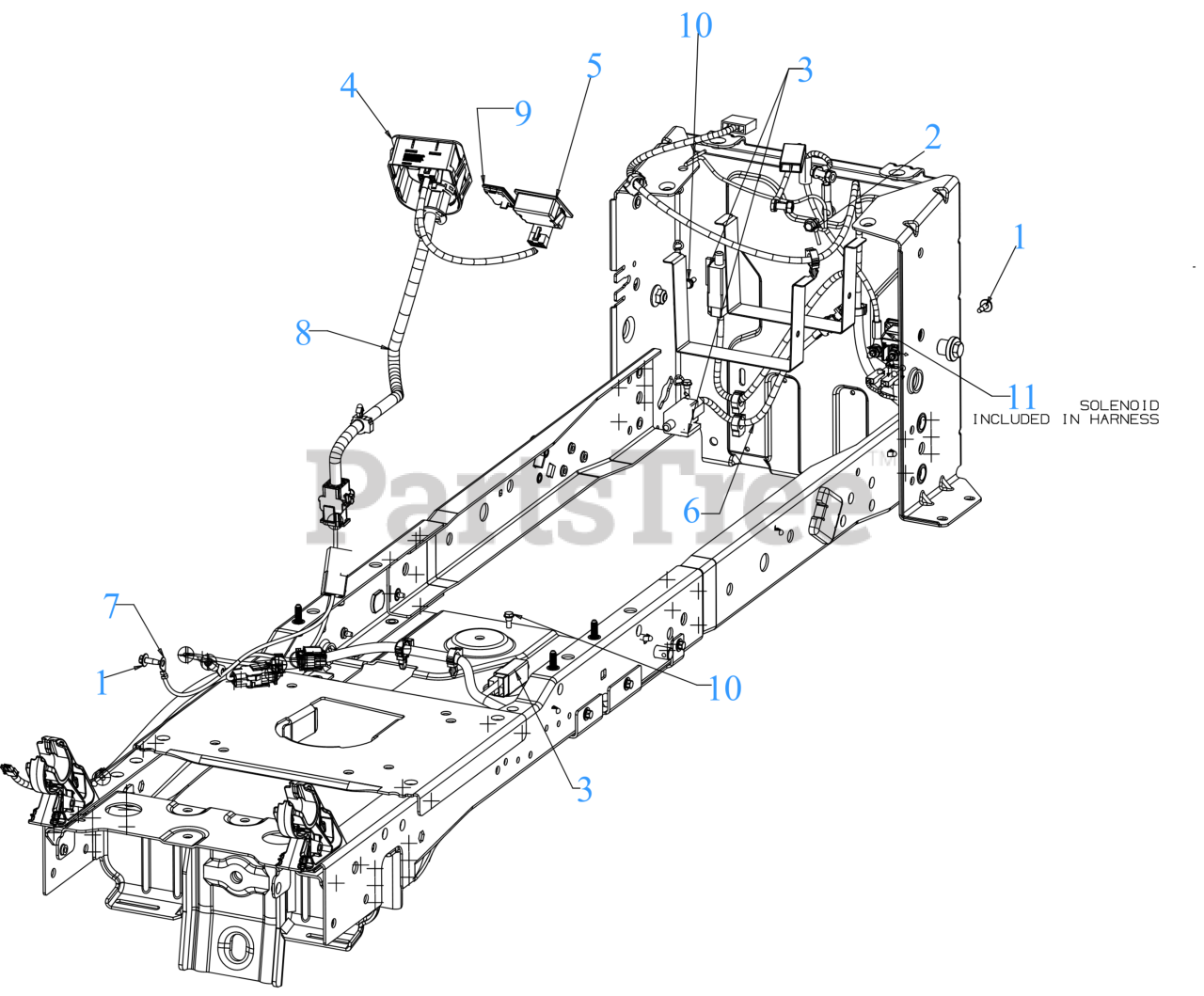

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 20+

0

4

Cub Cadet 925-06119C

IGNITION MODULE SWITCH RMC (MAN PTO BLK)

$116.99

$

In Stock, Qty 20+

0

5

Cub Cadet 925-06170A

HOUR METER/SERVICE MINDER
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

5

490-900-C075

Cub Cadet HOUR METER KIT

Note: Retail Packaged Part

$

$

Not available

5

Cub Cadet 490-900-Y075

Troy-Bilt HOUR METER KIT

Note: Retail Packaged Part

$53.99

$

In Stock, only 1 left!

0

6

Cub Cadet 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 2 left!

0

7

Cub Cadet 725P12566

JUMPER HARNESS (E GOV)

$35.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 925-1648A

RELAY

Note: (Not Shown)

$47.99

$

In Stock, Qty 19

0

8

Cub Cadet 725P13046

HARNESS (MPTO/RMC/HRMTR/DC)

$223.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-10634

DASH PLUG

$5.49

$

In Stock, Qty 9

0

10

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet 725-06153A

12V SOLENOID

$42.99

$

In Stock, Qty 20+

0
