XT1-LT 42 (13A8A1CS056) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2015) Engine Accessories Parts Diagram

42" XT1 Enduro Lawn Tractor

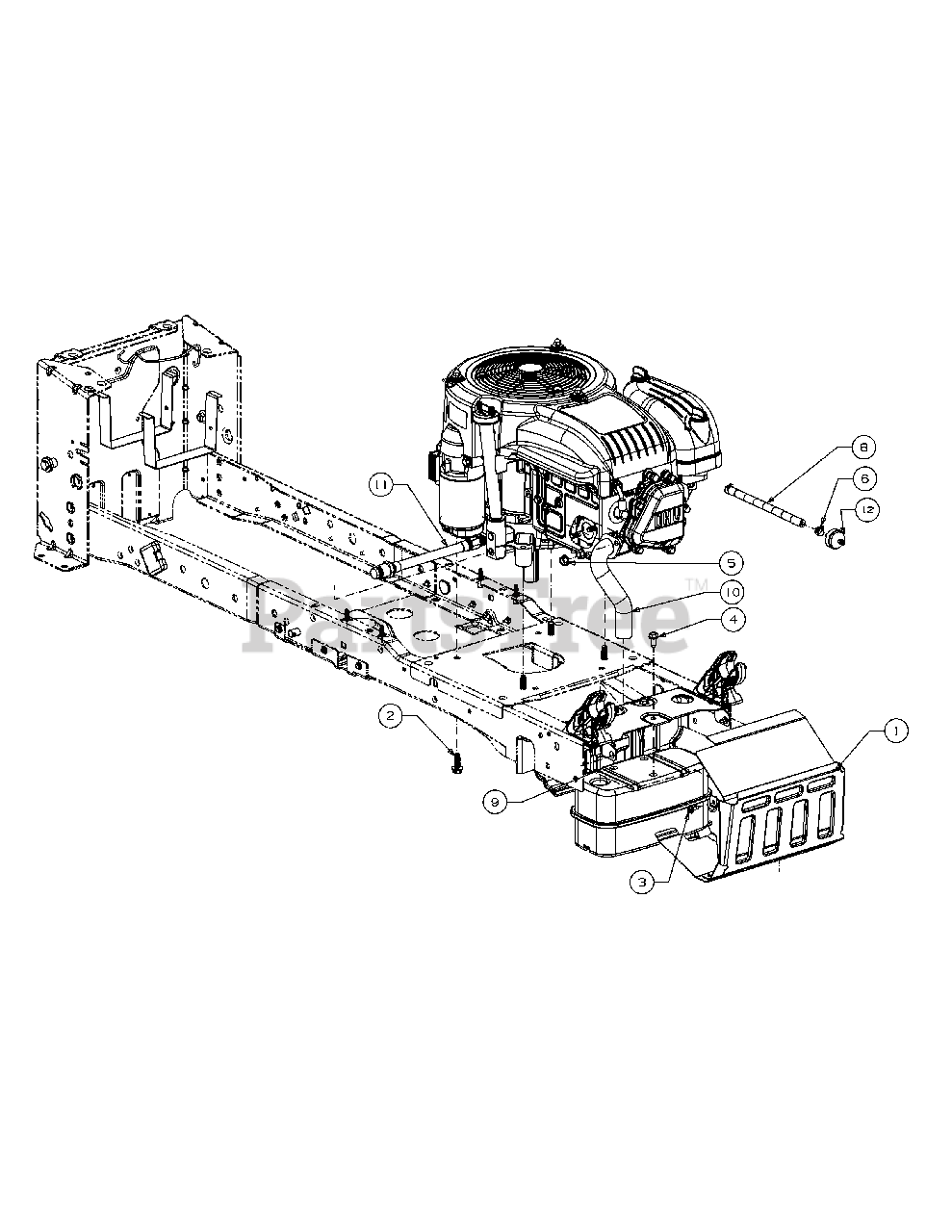

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 983-05253

Shield Asm, Exhaust Heat
(Superseded to 983-05142A)

$

$

Not available

2

Cub Cadet 710-04683C

Screw-Hxindwsh Tt 3/8-16 X 1.0

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-06133

Screw-Hxacrnwsh M6-

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-06256

Screw-Hxindwsh Tt M8

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3086

Nut-Hex Flange M8X

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 726-0205

Hose Clamp 1/20

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet CC-737-3030A

Oil:Sae 10W30
(Superseded to CC-737-3030A-B)

Note: (CC-737-3030A Cub Cadet quart oil 10W30)

$

$

Not available

8

Cub Cadet 751-10349-13

Hose:Fuel Low Perm

$18.99

$

In Stock, only 3 left!

0

9

Cub Cadet 751-14504A

Muffler-Exhaust
(Superseded to 951-14504D)

$78.99

$

In Stock, only 4 left!

0

10

Cub Cadet 751-14576

Pipe, Exhaust
(Superseded to 751-14576A)

$47.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 751-14836

Hose-Oil Drain

$

$

Not available

12

Cub Cadet 951-3013

Filter, Fuel

$5.49

$

In Stock, Qty 20+

0
