XT1-LT 42 (13A8A1CS056) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2015) Mower Deck Parts Diagram

42" XT1 Enduro Lawn Tractor

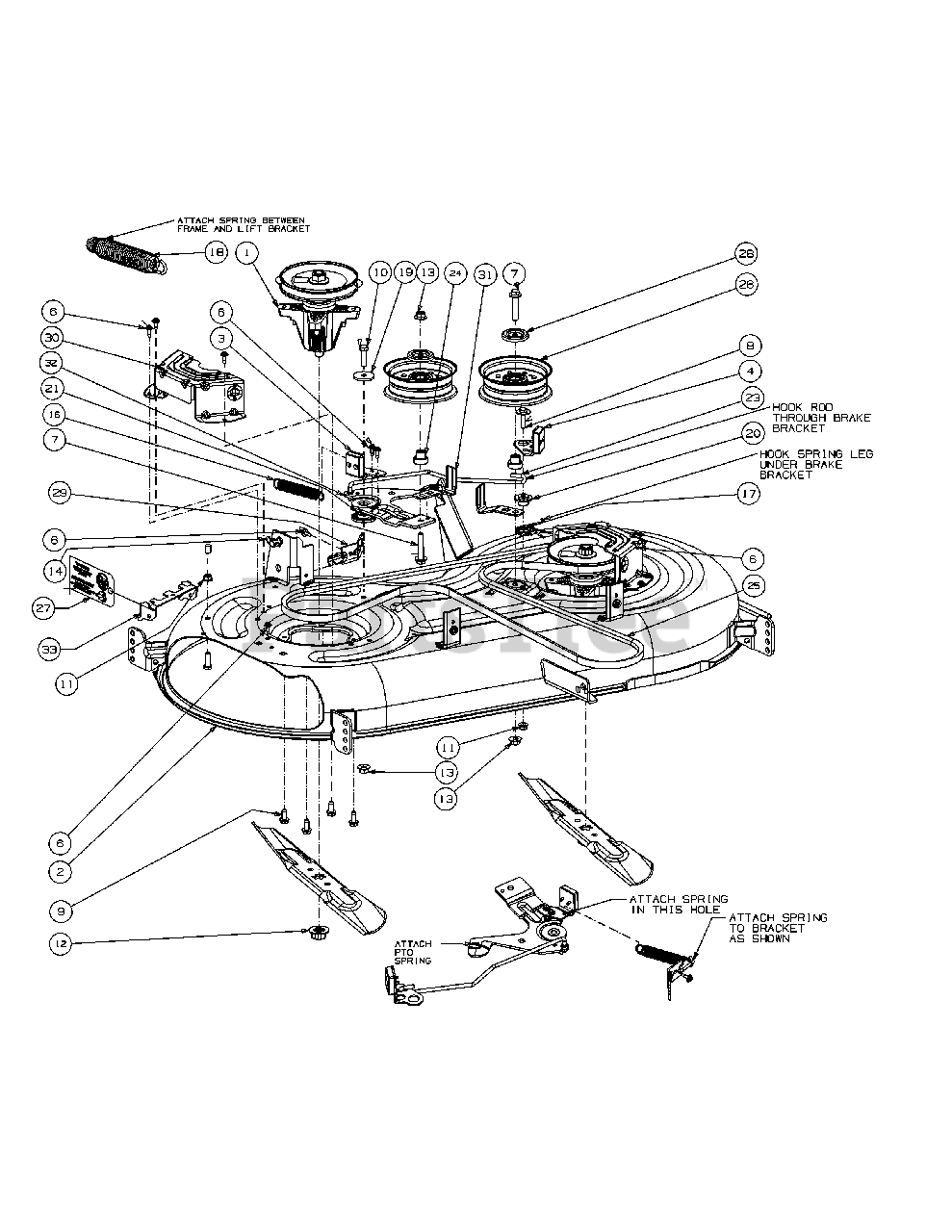

Mower Deck Parts Diagram

  • Title

1

Cub Cadet 918-06976

Spindle Asm:Pulley:6.3 Dia
(Superseded to 918-06976A)

$147.99

$

In Stock, Qty 20+

0

1

Cub Cadet 738-1010A

Shaft-Blade Spindle

$46.99

$

In Stock, Qty 13

0

1

Cub Cadet 941-0919B

Bearing, Ball

$20.99

$

In Stock, Qty 20+

0

1

Cub Cadet 750-04936

Spacer- .792 X 1.0

$6.49

$

In Stock, Qty 20+

0

1

Cub Cadet 619-04183B

Housing-Deck Spindle
(Superseded to 719-07293-M)

$44.99

$

In Stock, Qty 20+

0

1

Cub Cadet 756-05031

Pulley-Deck 5.4" D

$21.99

$

In Stock, Qty 6

0

1

Cub Cadet 783-08435

Shield-Brg

$6.99

$

In Stock, only 2 left!

0

1

Cub Cadet 750-06142

Spacer .800 X 1.1

$4.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 712-05134

Nut-Flange 5/8-18 Flex

$5.99

$

In Stock, only 4 left!

0

2

Cub Cadet 983-05076-0637

Deck 42"
(Superseded to 983-05076A-0637)

$793.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 983-05182

Brake Asm:Deck:RH
(Superseded to 983-05182B)

$92.99

$

In Stock, only 2 left!

0

3

Cub Cadet 761-05007

Pad-Deck Brake

$9.99

$

In Stock, Qty 20+

0

4

Cub Cadet 983-05183

Brake Asm:Deck:LH
(Superseded to 753-09904A)

$98.99

$

In Stock, only 3 left!

0

4

Cub Cadet 761-05007

Pad-Deck Brake

$9.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0376

Screw-Hex Cap

$3.99

$

In Stock, Qty 17

0

6

Cub Cadet 710-06133

Screw-Hxacrnwsh M6

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-06178

Screw Hhcs 3/8-16 X 2.0

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-06213

Screw Hhcs 5/16-18X1.25

$5.99

$

In Stock, Qty 10

0

9

Cub Cadet 710-1260A

Screw-Hex Wash Hd

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

Screw-Hex 3/8-16X1

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04063

Nut-Flglk 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0417A

Nut-Hex Flange 5/8

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04217

Nut-Flange Lock

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-05005

Pin-Bow Tie Cotter

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 720-05010

Cap-Vinyl

$3.99

$

In Stock, Qty 13

0

16

Cub Cadet 732-04629

Spring - Extension

$26.99

$

In Stock, Qty 20+

0

17

Cub Cadet 732-05151A

Spring-Torsion Lt5/Nx15

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 732-05241

Spring-Lift Assist
(Superseded to 732-05241A)

$19.99

$

In Stock, only 1 left!

0

19

Cub Cadet 936-0227

Wash:Flat:.390 X 1.500 X .134
(Superseded to 736-0227)

$

$

Not available

20

Cub Cadet 738-05088

Spacer-Shoulder .7

$4.49

$

In Stock, Qty 17

0

21

Cub Cadet 738-05099

Spacer-Shoulder

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet 942-04308

Blade:Cut:21.23" 2-In-1
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

23

Cub Cadet 747-06452

Rod-Deck Brake

$13.99

$

In Stock, Qty 9

0

24

Cub Cadet 748-05029A

Spacer-Shoulder

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 954-05021

Belt:V Typ:A Sec X 99.75

$50.99

$

In Stock, Qty 20+

0

26

Cub Cadet 756-05034

Pulley-Idler 4.50"
(Superseded to 756-05034A)

$42.99

$

In Stock, Qty 20+

0

27

Cub Cadet n/a

Tag

$

$

Currently unavailable

28

Cub Cadet 783-08389

Cap-Idler Pulley

$5.99

$

In Stock, Qty 20+

0

29

Cub Cadet 783-08406-0637

Bracket-Engage Cable

$8.99

$

In Stock, only 1 left!

0

30

Cub Cadet 783-08510-0637

Cover-Deck Belt 42
(Superseded to 783-08510A-0637)

$13.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 783-08690-0637

Keeper-Belt
(Superseded to 783-08690A-0637)

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet 783-08863-0637

Bracket-Idler Pivot 42"
(Superseded to 783E08863A)

$

$

Not available

33

Cub Cadet n/a

Bracket

$

$

Currently unavailable
