XT1-LT 42 (13AVA1CS009) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2015) Kohler SV541-3212 Oil Pan & Lubrication Parts Diagram

42" XT1 Enduro Lawn Tractor

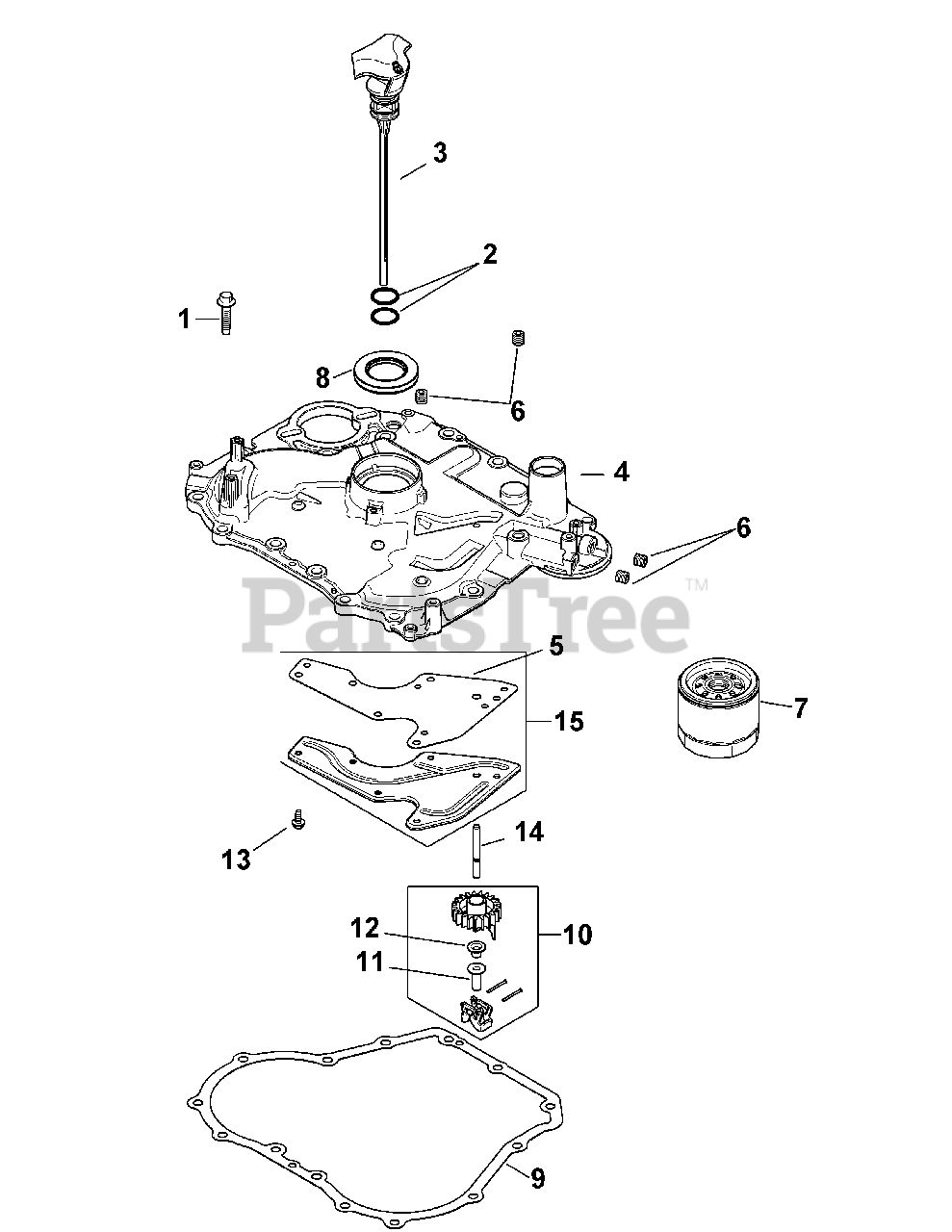

Kohler SV541-3212 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-25-086-421-S

Hex Flange Screw

$2.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-25-153-09-S

O-Ring

$4.99

$

In Stock, Qty 17

0

3

Cub Cadet KH-20-040-08-S

Dipstick Ass’y-Std Yellow (Incl. 2)

$7.99

$

In Stock, Qty 16

0

4

Cub Cadet KH-20-009-35-S

Closure Plate Assembly

$238.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-20-041-19-S

Oil Passage Gasket

$3.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-139-60-S

Countersink Pipe Plug, 1/8

$3.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

8

Cub Cadet KH-20-032-08-S

Oil Seal

$11.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-20-041-21-S

Closure Plate Gasket

$

$

Not available

10

Cub Cadet KH-25-310-08-S

Governor Gear Assembly (Incl. 11-12)
(Superseded to KH-25-310-09-S)

$13.99

$

In Stock, Qty 17

0

11

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

12

Cub Cadet KH-62-380-02-S

Governor Regulating Pin

$2.99

$

In Stock, only 2 left!

0

13

Cub Cadet KH-M-545013-S

Flg. Thd. Frm. Screw, M5 X 0.8 X 13

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-20-144-03-S

Governor Cross Shaft

$2.49

$

In Stock, Qty 12

0

15

Cub Cadet KH-20-096-21-S

Oil Passage Cover Kit (Incl. 5)

$9.99

$

In Stock, only 2 left!

0
