XT1-LT 42 e (33ABA7CS710) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2019) Dash Parts Diagram

42" XT1 Enduro Lawn Tractor

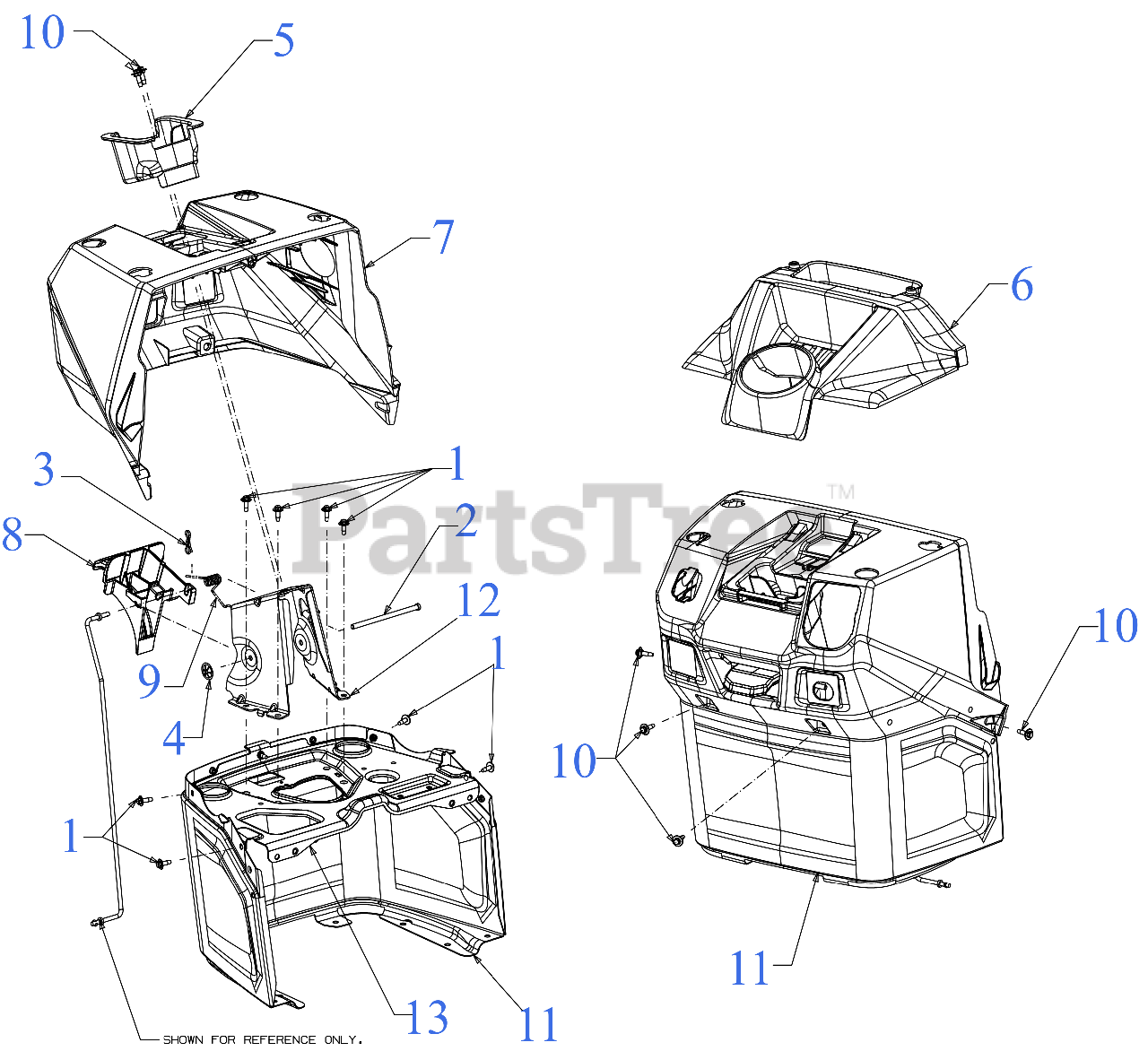

Dash Parts Diagram

  • Title

1

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet 711-06378

HINGE PIN .25 x 4.50

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

4

Cub Cadet 926-04012

PUSH NUT
(Superseded to 726-04012)

$

$

Not available

5

Cub Cadet 731-10618

STEERING SHAFT BEARING

$13.99

$

In Stock, only 1 left!

0

6

Cub Cadet 931-12495

UPPER DASH CAP

$28.99

$

In Stock, only 4 left!

0

7

Cub Cadet 731-13491

DASH (UPPER)

$33.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-13519

BRAKE LEVER

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 732-05199

TORSION SPRING .330 ID

$2.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$2.99

$

In Stock, Qty 20+

0

11

Cub Cadet 783-08391A

LOWER DASH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08391A-0637

Lower Dash - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-08391A-0606

DASH-LOWER - MAJESTIC ORANGE (0606)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-08391A-0691

DASH-LOWER - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 783-08538A

STEERING MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08538A-0637

Steering Bearing Mounting Bracket - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-10089

DASH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$25.99

$

Usually ships in 3-6 days

0
