XT1-LT 42 e (33ABA7CS710) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2019) Transmission Parts Diagram

42" XT1 Enduro Lawn Tractor

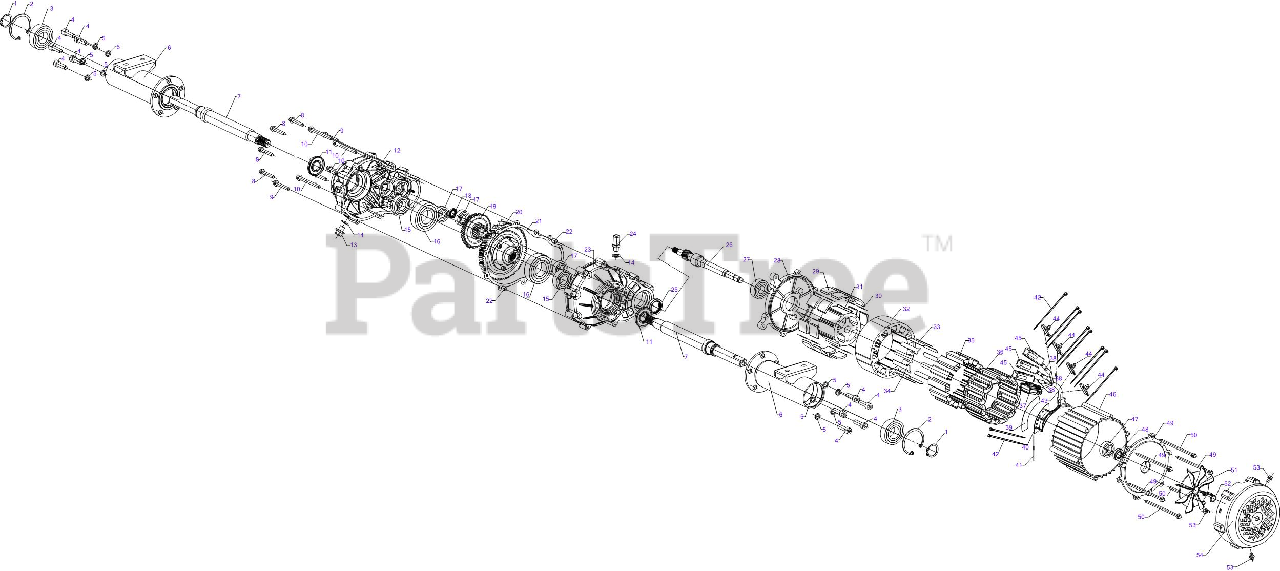

Transmission Parts Diagram

  • Title

1

Cub Cadet 716-05068

EXTERNAL RETAINING RING

$2.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 716-05069

INNER RETAINING RING

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 941-05410

SEALED BALL BEARING (25 x 25 x 15)

$18.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-06934

SCREW (M8-1.25 x 25 GRX STD)

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-05322

SPLIT LOCK WASHER M8

$2.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 618-09316

AXLE SUPPORT (RH)

Note: Right Hand

$70.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 618-09317

AXLE SUPPORT (LH)

Note: Left Hand

$73.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711P09742

AXLE (RH) (12.4 x .75)

Note: Right Hand

$75.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711P09743

AXLE (LH) (12.4 x .75)

Note: Left Hand

$81.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-06935

SCREW (M6-1x35 GRX SPEC)

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-06936

SCREW (M6-1x40 GRX SPEC)

$2.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-06937

SCREW (M6-1x65 GRX SPEC)

$2.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 921-05061

OIL SEAL (20 x 42 x 5)

$7.49

$

Usually ships in 3-6 days

0

12

CRANKCASE COVER

$

$

Not available

13

Cub Cadet 710-06938

SCREW (M10-1.25x10 GRX SPEC)

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-05323

FLAT WASHER (M10 x 16 x 1.5)

$2.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 941-05411

SEALED BALL BEARING (20 x 42 x 12)

$12.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 941-05412

SEALED BALL BEARING (30 x 62 x 16)

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 941-05413

SEALED BALL BEARING (12 x 32 x 10)

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 921-05062

OIL SEAL (12 x 24 x 4)

$7.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 917-05063

SPUR GEAR (72-20)

$102.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 917-05064

DIFFERENTIAL SPUR ASSEMBLY (77T)

$112.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 921-05063

TRANSMISSION HOUSING GASKET

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-06970

SLEEVE (8 x 10 x 6.3)

$2.99

$

Usually ships in 3-6 days

0

23

CRANKCASE

$

$

Not available

24

Cub Cadet 918-05563

TRANSMISSION HOUSING BREATHER

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 921-05064

OIL SEAL (17 x 35 x 7)

$8.49

$

Usually ships in 3-6 days

0

26

MOTOR SHAFT

$

$

Not available

27

BEARING

$

$

Not available

28

CONNECTING COVER

$

$

Not available

29

SHOE

$

$

Not available

30

PIN

$

$

Not available

31

ROTOR CORE

$

$

Not available

32

STATOR CORE

$

$

Not available

33

LAMINATION

$

$

Not available

34

LAMINATION

$

$

Not available

35

PAPER

$

$

Not available

36

WIRE

$

$

Not available

37

CONNECTOR

$

$

Not available

38

PHASE WIRE TERMINAL

$

$

Not available

39

INSULATION BOARD

$

$

Not available

40

ASSEMBLY

$

$

Not available

41

THERMISTOR

$

$

Not available

42

RIBBON

$

$

Not available

43

LEADING WIRE

$

$

Not available

44

ARROW CLIP

$

$

Not available

45

PHASE WIRE CONNECTOR

$

$

Not available

46

STATOR COVER

$

$

Not available

47

BEARING

$

$

Not available

48

REAR COVER OIL SEAL

$

$

Not available

49

REAR COVER

$

$

Not available

50

BOLT

$

$

Not available

51

FAN

$

$

Not available

52

RETAINER

$

$

Not available

53

SCREW

$

$

Not available

54

FAN SHROUD

$

$

Not available
