XT1-LT 42 e (33ABA7ES710) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2021) Battery Parts Diagram
42" XT1 Enduro Lawn Tractor

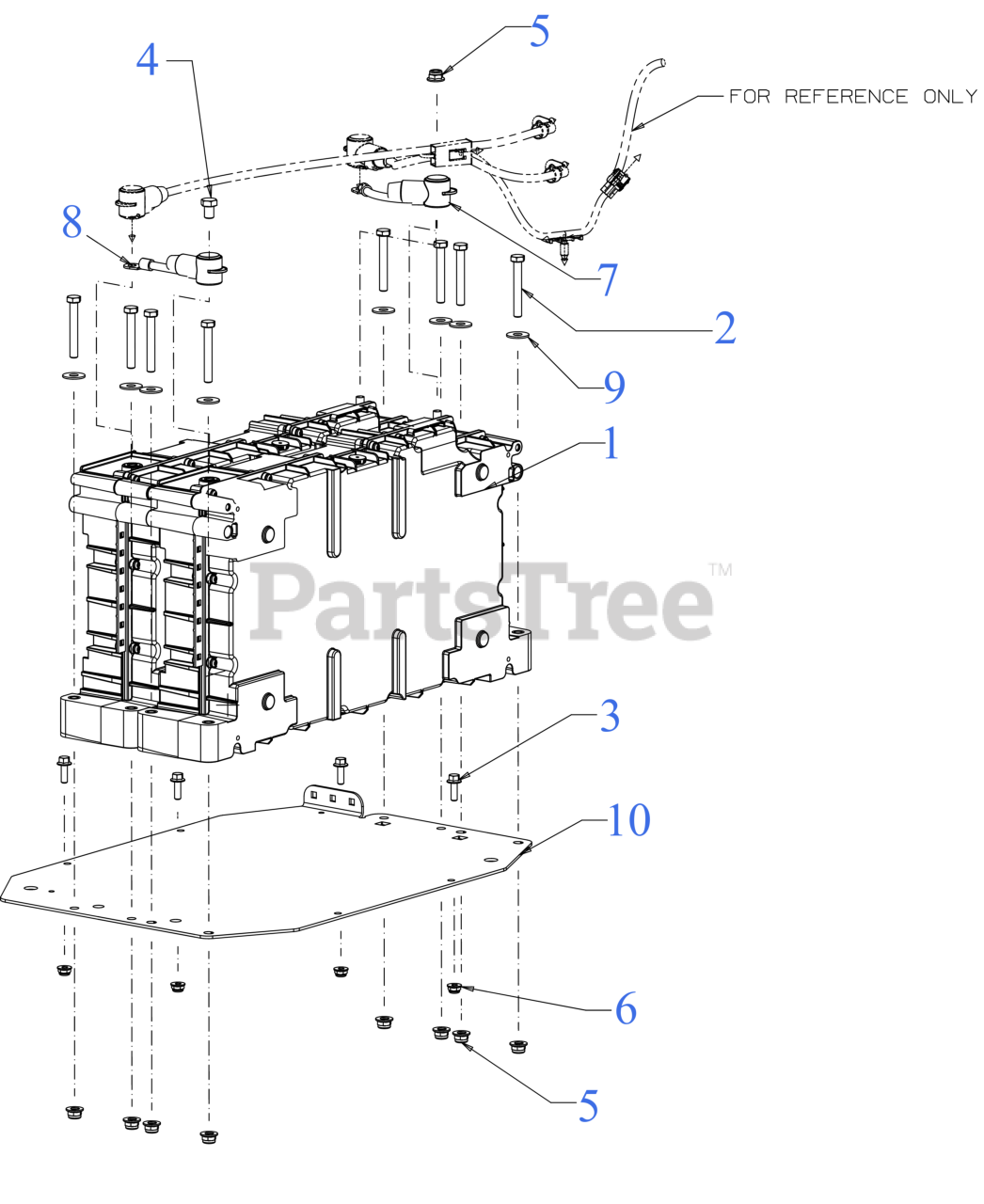

Battery Parts Diagram
1
LI-ION BATTERY (48V 30AH)
Note: (Contact Local Dealer)
$
$
Not available
Cub Cadet 710-0395
HEX SCREW 5/16-18 x 2.25 GR5
$4.99
$
In Stock, Qty 7
Cub Cadet 710-04666
SCREW 1/4-20 x .75 GR5
$6.99
$
In Stock, Qty 7
Cub Cadet 710-08794
SCREW 3/8-24 x .50" GR5 STD
$2.49
$
Usually ships in 3-6 days
Cub Cadet 712-04063
FLANGE LOCK NUT 5/16-18
$3.99
$
In Stock, Qty 20+
Cub Cadet 712-04064
FLANGE LOCK NUT
$3.99
$
In Stock, Qty 20+
Cub Cadet 725P10425
JUMPER BATTERY HARNESS
$35.99
$
Usually ships in 3-6 days
Cub Cadet 725P10505
JUMPER BATTERY HARNESS
$35.99
$
Usually ships in 3-6 days
Cub Cadet 736-0159
FLAT WASHER
$4.49
$
In Stock, Qty 20+
$54.99
$
Usually ships in 3-6 days
