XT1-LT 42 e (33BBA7CS710) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2020) Electrical Parts Diagram

42" XT1 Enduro Lawn Tractor

Electrical Parts Diagram

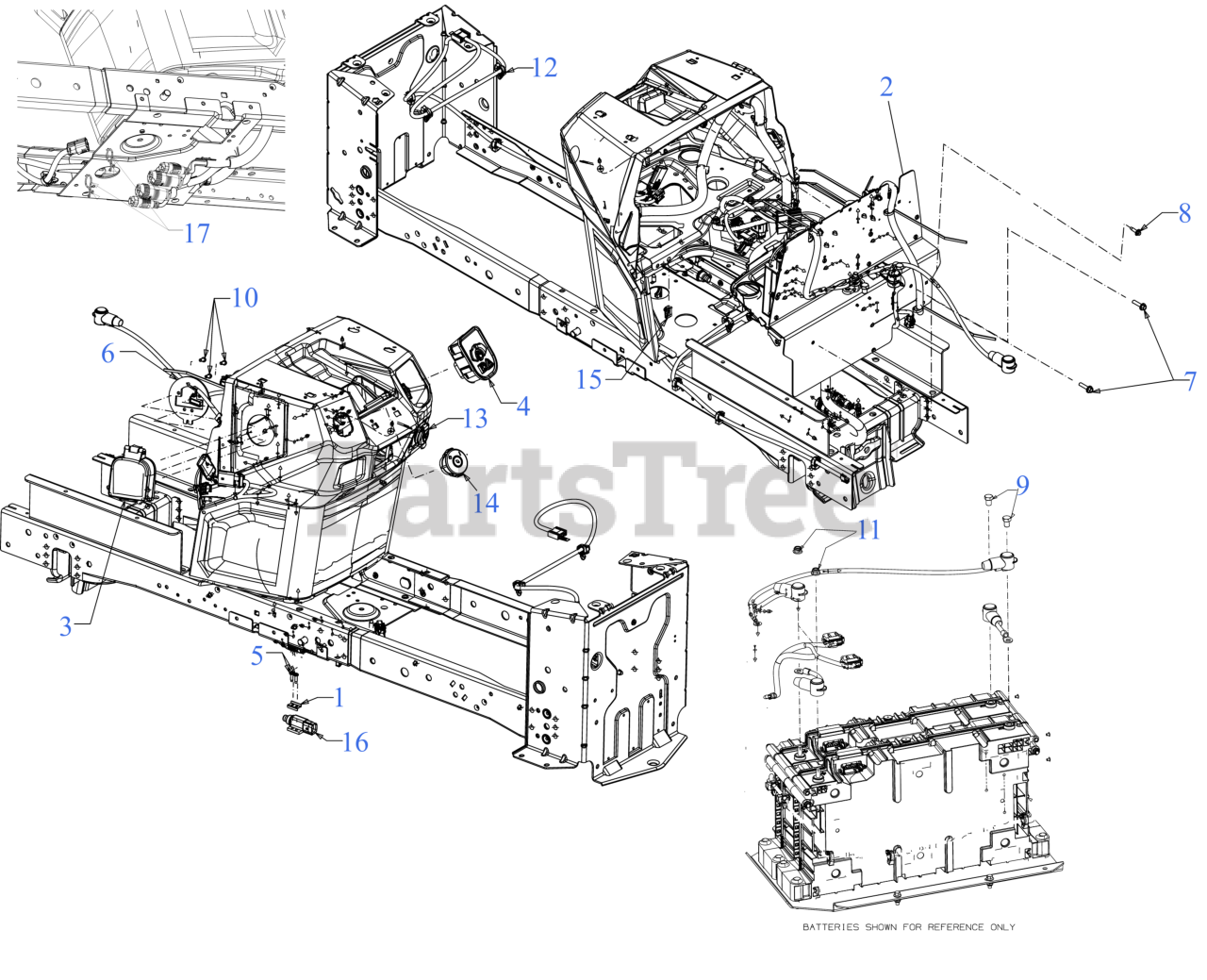

  • Title

1

Cub Cadet 17962

PLATE-SWITCH

$5.49

$

In Stock, Qty 12

0

2

Cub Cadet 625-05200

MOTOR CONTROL PANEL
(Superseded to 625P05200)

$

$

Not available

3

Cub Cadet 625P05390A

LI-ION CHARGE PORT ASSEMBLY

$179.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 625P05470A

VCM MODULE
(Superseded to 753-11122B)

$662.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet 703-08909

CHARGE PORT MOUNTING PLATE

$18.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-05105

SCREW 1/4-20 x 1.0

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 15

0

9

Cub Cadet 710-08794

SCREW 3/8-24 x .50" GR5 STD

$2.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1823

SCREW #12-16 x .625

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 725P09645

HARNESS (VCM HPD BATTERY)

$454.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-09965

USB RECEPTACLE (12V W/JUMPER)

$113.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725P10266

KEY SWITCH (2 POSITION)

$43.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-3054

U-CLIP NUT

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 929-05136

SEALED PLUNGER SWITCH

$45.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 729-07541

TWIST LOCK CLIP

$3.99

$

Usually ships in 3-6 days
