XT2-GX 50 KH FAB (14A7A3TLA10) - Cub Cadet 50" XT2 Enduro Garden Tractor, Fab Deck, Kohler (2024) Transmission Parts Diagram

50" XT2 Enduro Garden Tractor, Fab Deck, Kohler

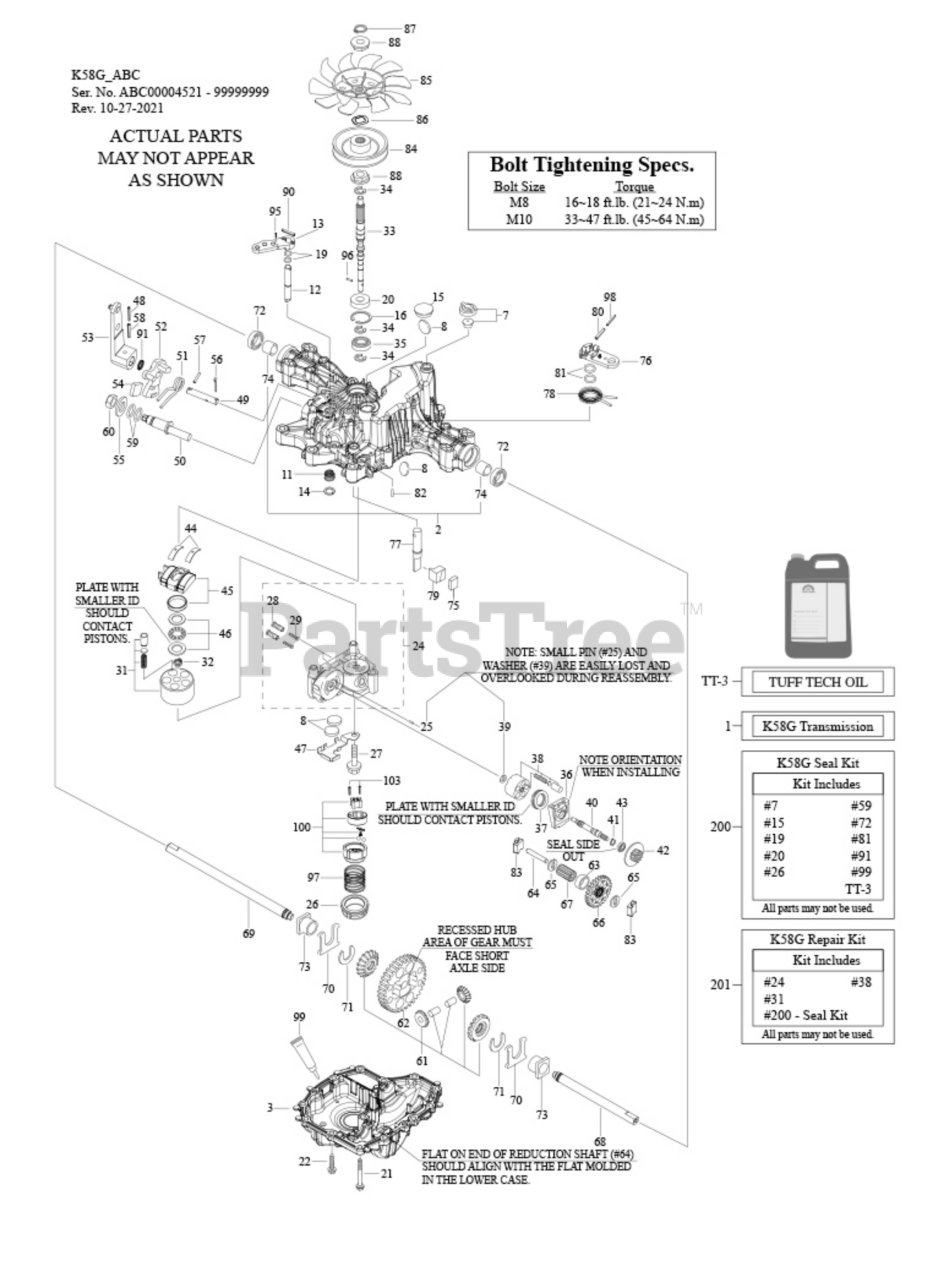

Transmission Parts Diagram

  • Title

1

Cub Cadet 918-07233A

TRANSMISSION ASSEMBLY

$1675.99

$

Usually ships in 3-6 days

0

2

Cub Cadet TT-187Q0024080

UPPER HOUSING KIT

$369.99

$

Usually ships in 3-6 days

0

3

Cub Cadet TT-187Q0024161

LOWER CASE

$160.99

$

Usually ships in 3-6 days

0

7

Cub Cadet TT-168T2024250

VALVE ASSEMBLY-VENT

$30.99

$

In Stock, only 4 left!

0

8

Cub Cadet TT-19216324360

MAGNET

$3.49

$

In Stock, only 2 left!

0

11

Cub Cadet TT-19215427281

SPRING

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet TT-1A646029510

SHAFT-BYPASS

$28.99

$

Usually ships in 3-6 days

0

13

Cub Cadet TT-1A632029520

LEVER-BYPASS

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet TT-22242000100

SNAP RING

$0.99

$

Usually ships in 3-6 days

0

15

Cub Cadet TT-187T0136300

SEALING CAP

$7.99

$

In Stock, Qty 5

0

16

Cub Cadet TT-22252000350

SNAP RING

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet TT-24311240100

O-RING

$2.99

$

In Stock, only 2 left!

0

20

Cub Cadet TT-187T0134380

OIL SEAL

$4.49

$

In Stock, Qty 10

0

21

Cub Cadet TT-26476080552

TAP SCREWPING 8X

$1.99

$

Usually ships in 3-6 days

0

22

Cub Cadet TT-26476080302

TAP SCREWPING 8X

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet TT-1A646099220

SECTION ASSEMBLY-CENTER

$326.99

$

Usually ships in 3-6 days

0

25

Cub Cadet TT-19216824760

PIN

$2.99

$

In Stock, only 2 left!

0

26

Cub Cadet TT-187Q0024950

FILTER

$18.99

$

Usually ships in 3-6 days

0

27

Cub Cadet TT-168T2099990

BOLT-HEX 10X

$2.99

$

Usually ships in 3-6 days

0

28

Cub Cadet TT-1A646024800

VALVE-IDS 1.2

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet TT-168T2084770

SPRING

$0.99

$

Usually ships in 3-6 days

0

31

Cub Cadet TT-168T2025090

BLOCK KIT-PISTON &

$130.99

$

Usually ships in 3-6 days

0

32

Cub Cadet TT-1A646025200

SPRING-CYL BLOCK

$1.99

$

In Stock, only 2 left!

0

33

Cub Cadet TT-1A646088840

SHAFT-PUMP INPUT

$52.99

$

Usually ships in 3-6 days

0

34

Cub Cadet TT-22272000120

E-RING

$2.99

$

In Stock, Qty 11

0

35

Cub Cadet TT-1A646034770

BALL BEARING
(Superseded to TT-1A646034790)

$9.99

$

Usually ships in 3-6 days

0

36

Cub Cadet TT-187Q0024810

HOUSING-MOTOR

$14.99

$

Usually ships in 3-6 days

0

37

Cub Cadet TT-187Q0099760

BRG-THRUST

$62.99

$

Usually ships in 3-6 days

0

38

Cub Cadet TT-168T2025080

BLOCK KIT-PISTON &

$180.99

$

In Stock, only 1 left!

0

39

Cub Cadet TT-19216825230

WASHER

$2.99

$

Usually ships in 3-6 days

0

40

Cub Cadet TT-1A646025271

MOTOR SHAFT

$29.99

$

Usually ships in 3-6 days

0

41

Cub Cadet TT-19215425310

SNAP RING

$0.99

$

Usually ships in 3-6 days

0

42

Cub Cadet TT-187Q0099400

GEAR-MOTOR

$16.99

$

Usually ships in 3-6 days

0

43

Cub Cadet TT-187Q0089300

BEARING

$23.99

$

Usually ships in 3-6 days

0

44

Cub Cadet TT-19216327051

BEARING-CRADLE THRUST

$7.99

$

Usually ships in 3-6 days

0

45

Cub Cadet TT-168T2084570

SWASHPLATE ASSEMBLY

$32.99

$

Usually ships in 3-6 days

0

46

Cub Cadet TT-19216399000

BEARING ASSEMBLY-THRUST PM

$50.99

$

Usually ships in 3-6 days

0

47

Cub Cadet TT-1A646029010

HOLDER-MAGNET

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet TT-22351035040

ROLL PIN 3.5 x 4

$2.99

$

Usually ships in 3-6 days

0

49

Cub Cadet TT-1A646029911

SHAFT-CONTROL

$18.99

$

Usually ships in 3-6 days

0

50

Cub Cadet TT-168T2029920

FULCRUM

$26.99

$

Usually ships in 3-6 days

0

51

Cub Cadet TT-168T2029800

TORSION SPRING

$14.99

$

Usually ships in 3-6 days

0

52

Cub Cadet TT-168T2029740

ARM-CONTROL A

$45.99

$

Usually ships in 3-6 days

0

53

Cub Cadet TT-1A646029400

LEVER-CONTROL F

$12.99

$

Usually ships in 3-6 days

0

54

Cub Cadet TT-168T2029360

PLATE-JERKY

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet TT-22137120000

FLAT WASHER 12

$2.49

$

Usually ships in 3-6 days

0

56

Cub Cadet TT-1A646029940

COTTER PIN 1/8 x .75

$1.99

$

Usually ships in 3-6 days

0

57

Cub Cadet TT-22351060036

SPRING PIN 6 x 3

$0.99

$

Usually ships in 3-6 days

0

58

Cub Cadet TT-22351060040

ROLL PIN 6 x 4

$2.99

$

Usually ships in 3-6 days

0

59

Cub Cadet TT-24311000140

O-RING

$2.49

$

Usually ships in 3-6 days

0

60

Cub Cadet TT-26776120002

HEX NUT 12

$2.49

$

Usually ships in 3-6 days

0

61

Cub Cadet TT-187Q0031501

DIFFERENTIAL GEAR ASSEMBLY

$80.99

$

Usually ships in 3-6 days

0

62

Cub Cadet TT-187Q0033510

FINAL GEAR

$130.99

$

Usually ships in 3-6 days

0

63

Cub Cadet TT-187Q0033250

COLLAR-FINAL PINION

$2.99

$

Usually ships in 3-6 days

0

64

Cub Cadet TT-187Q0033410

SHAFT-REDUCTION

$10.99

$

Usually ships in 3-6 days

0

65

Cub Cadet TT-19216833420

THRUST WASHER

$2.49

$

In Stock, Qty 5

0

66

Cub Cadet TT-187Q0033451

GEAR-REDUCTION

$37.99

$

Usually ships in 3-6 days

0

67

Cub Cadet TT-187Q0033530

GEAR-FINAL PINION

$48.99

$

Usually ships in 3-6 days

0

68

Cub Cadet TT-187Q0034170

AXLE SHAFT (LH)

$96.99

$

Usually ships in 3-6 days

0

69

Cub Cadet TT-187Q0034180

AXLE SHAFT (RH)

$120.99

$

Usually ships in 3-6 days

0

70

Cub Cadet TT-1A632034290

THRUST WASHER

$6.49

$

Usually ships in 3-6 days

0

71

Cub Cadet TT-19216734160

RING-"C" AXLE

$2.49

$

Usually ships in 3-6 days

0

72

Cub Cadet TT-1A632034390

AXLE OIL SEAL

$13.99

$

In Stock, only 2 left!

0

73

Cub Cadet TT-187Q0034350

BUSHING-FLG AXLE

$3.49

$

Usually ships in 3-6 days

0

74

Cub Cadet TT-19215434240

BUSHING AXLE

$7.49

$

Usually ships in 3-6 days

0

75

Cub Cadet TT-1A646036121

BRAKE SHOE

$2.99

$

Usually ships in 3-6 days

0

76

Cub Cadet TT-1A646036160

BRAKE LEVER

$7.99

$

Usually ships in 3-6 days

0

77

Cub Cadet TT-1A646036171

BRAKE SHAFT

$39.99

$

Usually ships in 3-6 days

0

78

Cub Cadet TT-168T2036180

SPRING-BRAKE RETUR

$4.99

$

Usually ships in 3-6 days

0

79

Cub Cadet TT-1A646036200

ACTUATOR-BRAKE

$2.99

$

Usually ships in 3-6 days

0

80

Cub Cadet TT-22351050032

SPRING PIN 5 x 3

$2.99

$

Usually ships in 3-6 days

0

81

Cub Cadet TT-24311000120

O-RING

$2.99

$

In Stock, Qty 7

0

82

Cub Cadet TT-22351040016

SPRING PIN 4 x 1

$2.49

$

In Stock, only 1 left!

0

83

Cub Cadet TT-187Q0033100

BUSHING-SUPPORT

$4.99

$

Usually ships in 3-6 days

0

84

Cub Cadet TT-1A646025760

PULLEY

$24.99

$

In Stock, only 2 left!

0

85

Cub Cadet TT-187Q0083110

HYDRO FAN

$16.99

$

In Stock, only 2 left!

0

86

Cub Cadet TT-1A646083060

WAVE WASHER

$2.99

$

In Stock, only 4 left!

0

87

Cub Cadet TT-19215489090

SNAP RING

$2.99

$

In Stock, Qty 14

0

88

Cub Cadet TT-1A646025300

COLLAR-SPLINE

$3.49

$

In Stock, only 1 left!

0

90

Cub Cadet TT-22351030020

SPRING PIN 3 x 2

$2.99

$

Usually ships in 3-6 days

0

91

Cub Cadet TT-1A646024440

OIL SEAL

$4.49

$

In Stock, only 2 left!

0

95

Cub Cadet TT-22351030016

SPRING PIN 3 x 1

$2.99

$

Usually ships in 3-6 days

0

96

Cub Cadet TT-1A646088410

PIN 2.5 x 9.8

$2.99

$

Usually ships in 3-6 days

0

97

Cub Cadet TT-1A646088450

SPRING-CHARGE PUMP

$4.99

$

Usually ships in 3-6 days

0

98

Cub Cadet TT-22351030032

SPRING PIN 3 x 32

$0.99

$

Usually ships in 3-6 days

0

99

Cub Cadet TT-1A646099500

SEALANT

$28.99

$

Usually ships in 3-6 days

0

100

Cub Cadet TT-187Q0099080

PUMP KIT-CHARGE

$41.99

$

Usually ships in 3-6 days

0

103

Cub Cadet TT-22351030018

PIN 3.0 x 18

$0.99

$

Usually ships in 3-6 days

0

200

Cub Cadet TT-187Q0099203

KIT-SEAL K58G NX-15

$84.99

$

Usually ships in 3-6 days

0

201

Cub Cadet TT-187Q0099063

REPAIR KIT K58G NX-15

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07233A

TRANSMISSION ASSEMBLY

$1675.99

$

Usually ships in 3-6 days

0
