XT2-GX 54D KH FAB (14B7A6TMA10) - Cub Cadet 54" XT2 Enduro Garden Tractor, Fab Deck, Kohler (2024) Deck Parts Diagram

54" XT2 Enduro Garden Tractor, Fab Deck, Kohler

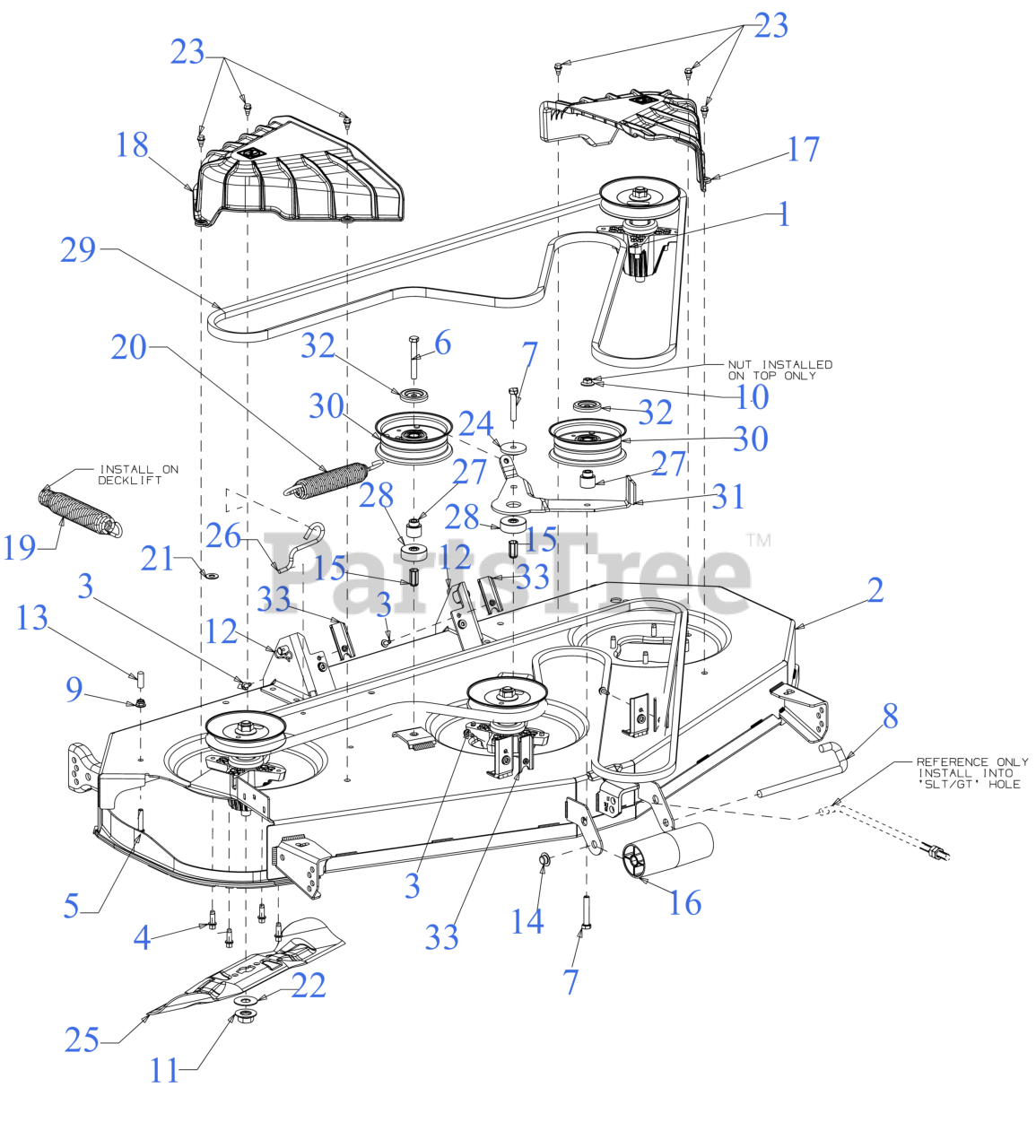

Deck Parts Diagram

  • Title

1

Cub Cadet 618P09236

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$148.99

$

In Stock, Qty 20+

0

2

Cub Cadet 683P06395

54" FAB FLAT TOP DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

3

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet 710-3096

SCREW 3/8-16 x 2.0 GR 8

$8.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-06377

ROLLER PIN 1/2 x 7.31

$22.99

$

In Stock, only 4 left!

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-07050

HEX FLANGE NUT 5/8-18 GR5

$5.99

$

In Stock, Qty 14

0

12

Cub Cadet 714-05005

BOW TIE COTTER PIN

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 720-05075

VINYL CAP

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

15

Cub Cadet 728-05016

NUT RIVET 3/8-16

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet 731-05679B

ROLLER

$19.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-09969C

SPINDLE COVER (LH)

$30.99

$

In Stock, Qty 20+

0

18

Cub Cadet 731-25811

SPINDLE COVER (RH)

$30.99

$

In Stock, only 2 left!

0

19

Cub Cadet 732-05242C

LIFT ASSIST SPRING (LARGE)

$23.99

$

In Stock, Qty 5

0

20

Cub Cadet 732-05360B

SPRING 1.25" DIA x 8.5" LONG

$36.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-05080

FLAT WASHER .401X.88

$3.49

$

In Stock, only 2 left!

0

22

Cub Cadet 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-05082

SHOULDER SPACER

$8.99

$

In Stock, Qty 20+

0

25

Cub Cadet 742P05086

18.611" BLADE (2IN1) (S SHAPE CENTER HOLE)

$32.99

$

In Stock, Qty 16

0

25

Cub Cadet 490-110-C194

Cub Cadet 54" HI LIFT BLADE SET (S SHAPE CENTER HOLE) (-05086)

Note: Retail Package Part

$103.99

$

In Stock, only 3 left!

0

25

Cub Cadet 490-110-Y194

Troy-Bilt 54" HI LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$97.99

$

In Stock, Qty 6

0

25

Cub Cadet 742P05086-X

18.611" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$37.99

$

In Stock, Qty 14

0

25

Cub Cadet 490-110-C205

Cub Cadet 54" XTREME BLADE SET (S SHAPE CENTER HOLE) (-05086-X)

Note: Retail Package Part

$111.99

$

In Stock, only 4 left!

0

25

Cub Cadet 490-110-Y205

Troy-Bilt 54" XTREME BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$105.99

$

In Stock, only 2 left!

0

25

Cub Cadet 742P05086-L

18.611" LOW LIFT (S SHAPE CENTER HOLE)

$37.99

$

In Stock, Qty 9

0

25

Cub Cadet 490-110-C201

Cub Cadet 54" LOW LIFT BLADE SET (S SHAPE CENTER HOLE) (-05086-L)

Note: Retail Package Part

$118.99

$

In Stock, only 2 left!

0

25

Cub Cadet 490-110-Y201

Troy-Bilt 54" LOW LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$112.99

$

In Stock, only 1 left!

0

26

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 748-05037B

SHOULDER SPACER

$5.99

$

In Stock, Qty 20+

0

28

Cub Cadet 750-06184

SPACER .385ID x 1.75OD x .585THK

$12.99

$

In Stock, Qty 20+

0

29

Cub Cadet 954-05025A

V-BELT B SEC x 139

$93.99

$

In Stock, only 3 left!

0

29

Cub Cadet 490-501-C064

Cub Cadet 54" DECK DRIVE BELT

Note: Retail Packaged Part

$93.99

$

In Stock, only 4 left!

0

29

Cub Cadet 490-501-M064

Genuine Factory Parts 54" DECK BELT

Note: Retail Packaged Part

$

$

Not available

30

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$48.99

$

In Stock, Qty 20+

0

31

Cub Cadet 783E08309B

IDLER PIVOT BRACKET

$44.99

$

In Stock, Qty 19

0

32

Cub Cadet 783-08389

IDLER PULLEY CAP

$6.49

$

In Stock, Qty 20+

0

33

Cub Cadet 783-08404A

LIFT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08404A-0606

BRACKET-LIFT STOP - MAJESTIC ORANGE (0606)

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-08404A-0637

BRACKET-LIFT STOP - POWDER BLACK (0637)

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-08404A-4028

BRACKET-LIFT STOP - SEARS YELLOW (4028)

$4.49

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0
