XT2-LX 42 KW (13BGA1CS010) - Cub Cadet 42" XT2 Enduro Lawn Tractor, Kawasaki (2016) Engine Accessories Parts Diagram

42" XT2 Enduro Lawn Tractor, Kawasaki

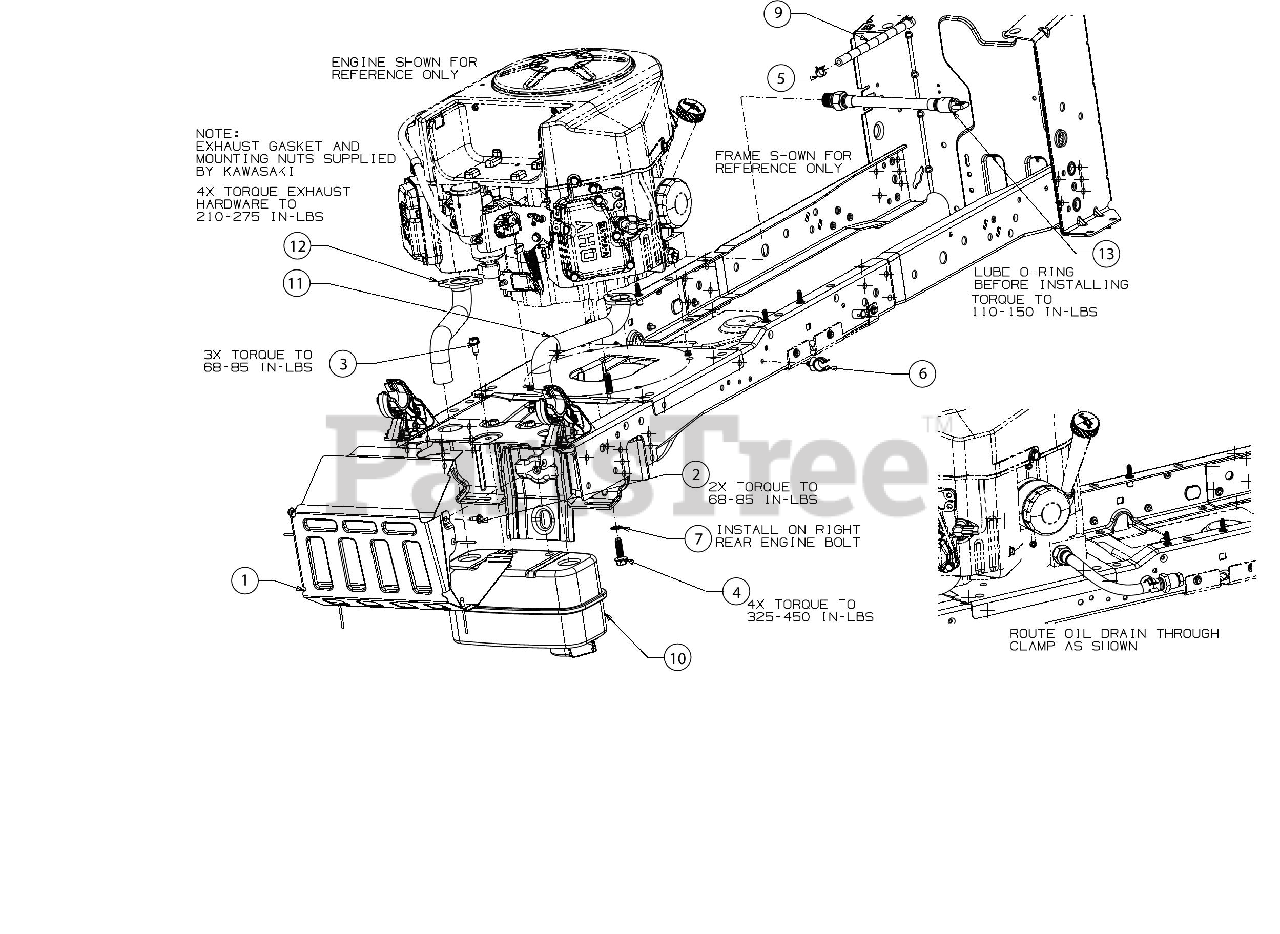

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 983-05142A

MUFFLER SHIELD ASSEMBLY

$

$

Not available

1

Cub Cadet 728-04033

RIVET - 3/16"

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-10746A

DRAIN HOSE CLIP

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 19

0

9

Cub Cadet 751-10349-13

FUEL HOSE LOW PERMEATION

$18.99

$

In Stock, only 3 left!

0

10

Cub Cadet 951-14503A

EXHAUST MUFFLER (TWIN)
(Superseded to 951-14503D)

$78.99

$

In Stock, Qty 7

0

11

Cub Cadet 751-14535

EXHAUST PIPE (LH) (KAWASAKI)

$54.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751-14536

EXHAUST PIPE (RH) (KAWASAKI)

$54.99

$

Usually ships in 3-6 days

0

13

751-14857B

OIL DRAIN HOSE M20 THRD

$

$

Not available
