XT2-LX 46 (13AJA1CT010) - Cub Cadet 46" XT2 Enduro Lawn Tractor (2020) Engine Accessories Parts Diagram

46" XT2 Enduro Lawn Tractor

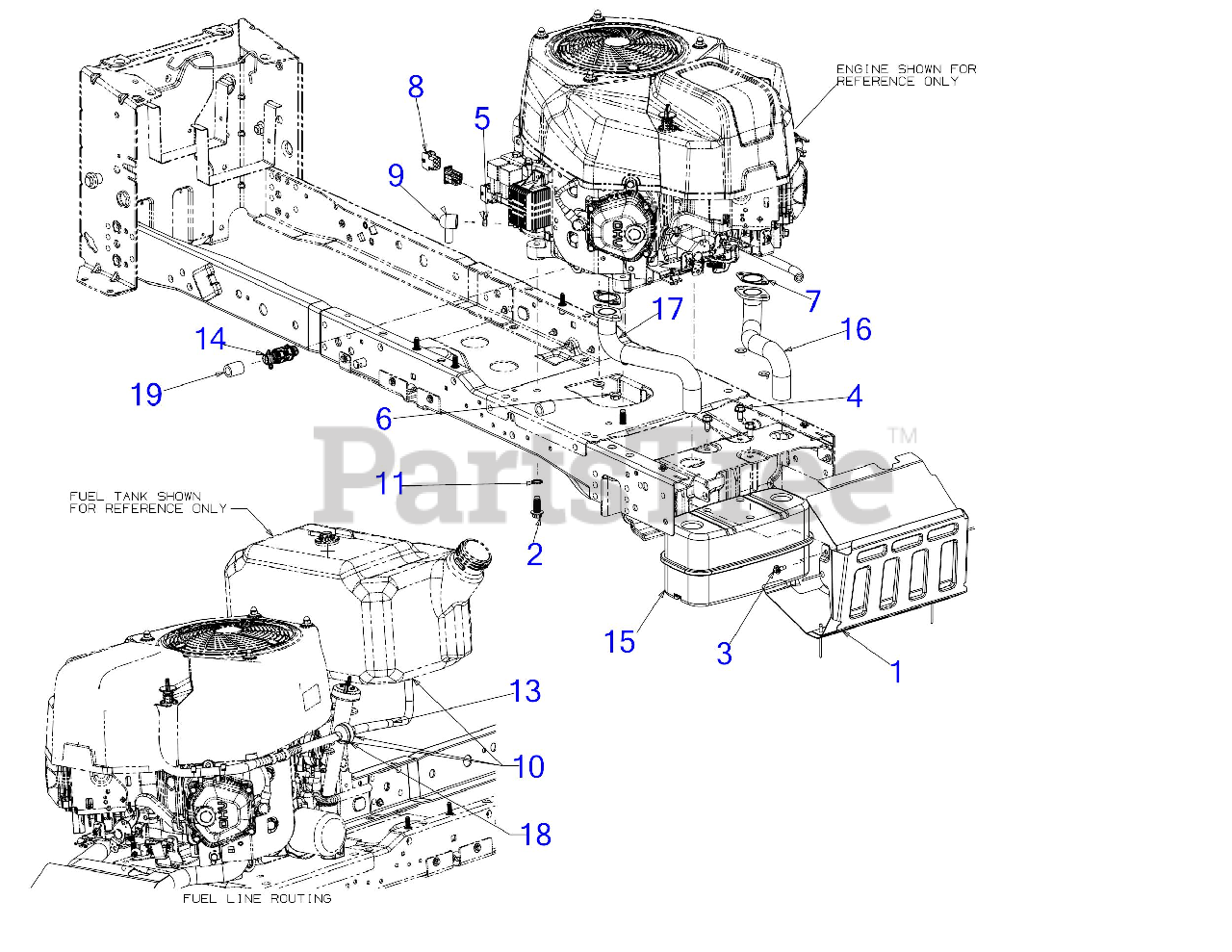

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 983-05142A

MUFFLER SHIELD ASSEMBLY

$

$

Not available

1

Cub Cadet 728-04033

RIVET - 3/16"

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04683C

SCREW 3/8-16 x 1

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 912-0691

HEX NUT
(Superseded to 712-0691)

$

$

Not available

6

Cub Cadet 712-3086

HEX FLANGE NUT M8X

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 921-04936

EXHAUST GASKET

$8.49

$

In Stock, only 2 left!

0

8

Cub Cadet 725-07625

JUMPER HARNESS

$21.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 725-3237

TERMINAL COVER (RED)

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 19

0

13

Cub Cadet 751-10349-13

FUEL HOSE LOW PERMEATION

$18.99

$

In Stock, only 3 left!

0

14

Cub Cadet 951-10517A

OIL DRAIN VALVE

$25.99

$

In Stock, Qty 20+

0

15

Cub Cadet 951-14503A

EXHAUST MUFFLER (TWIN)
(Superseded to 951-14503D)

$78.99

$

In Stock, Qty 7

0

16

Cub Cadet 751-15507

EXHAUST PIPE (LH)

$49.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 751-15860

EXHAUST PIPE (RH)

$48.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-3013

FUEL FILTER

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 751-3141-14

DRAIN HOSE 14''

$12.99

$

In Stock, Qty 18

0

OIL:SAE 10W30

$

$

Not available
