XT3-GS (14B-3JM-010) - Cub Cadet XT3 Enduro Garden Tractor (2015) Kohler CH680-3106 Crankcase Parts Diagram

XT3 Enduro Garden Tractor

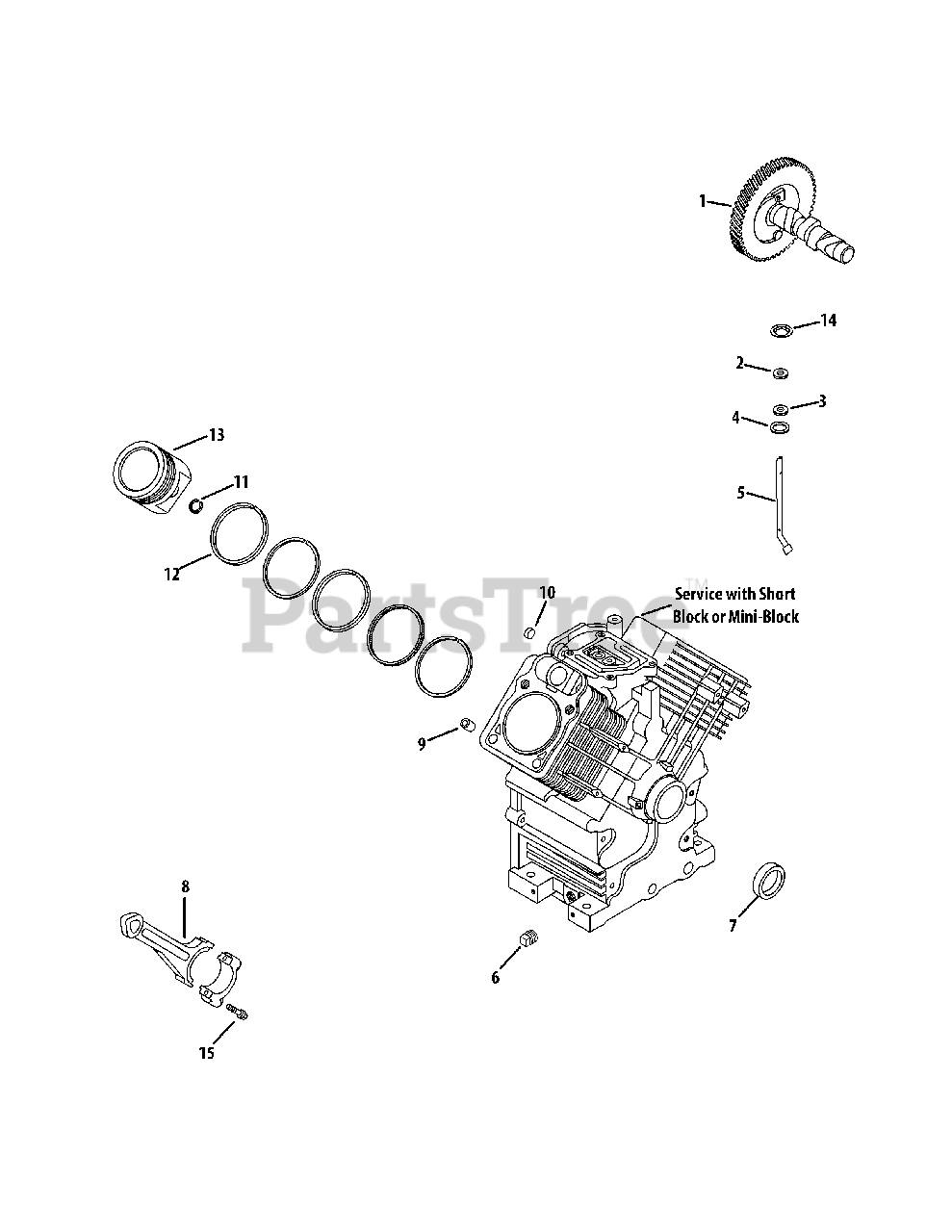

Kohler CH680-3106 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-012-10-S

Camshaft Kit
(Superseded to KH-24-012-23-S)

$153.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-M-931010-S

Flat Washer, 9 MM

$2.49

$

In Stock, Qty 9

0

3

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 19

0

4

Cub Cadet KH-24-468-15-S

Flat Washer, 11/32

$2.49

$

In Stock, Qty 9

0

5

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-139-57-S

Square Headd Pipe Plug, 3/8

$2.49

$

In Stock, Qty 14

0

7

Cub Cadet KH-24-032-19-S

Oil Seal (Helix Lip)

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-24-067-34-S

Connecting Rod Assembly
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 17

0

9

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet KH-52-139-09-S

Cup Plug

$4.99

$

In Stock, Qty 9

0

11

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$2.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-24-108-18-S

Ring Set (Std)

$

$

Not available

12

Cub Cadet KH-24-108-19-S

Ring Set (.08)
(Superseded to KH-24-108-27-S)

$145.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-108-20-S

Ring Set (.25)

$

$

Not available

12

Cub Cadet KH-24-108-21-S

Ring Set (.50)

$

$

Not available

13

Cub Cadet KH-24-874-54-S

Piston Assembly Kit w/ Ring (Std.)

$250.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-24-874-55-S

Piston Assembly Kit w/ Ring Set (.08)

$

$

Not available

13

Cub Cadet KH-24-874-56-S

Piston Assembly Kit w/Ring Set (.25)

$288.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-874-57-S

Piston Assembly Kit w/ Ring Set (.50)

$288.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

In Stock, Qty 8

0

15

Cub Cadet KH-25-086-452-S

Rod Bolts Kit
(Superseded to KH-25-086-677-S)

$2.49

$

In Stock, only 4 left!

0

Cub Cadet KH-CH680-3106

Complete Engine

Note: (not shown)

$3444.99

$

Usually ships in 3-6 days

0
