XT3-GS (14W-3JM-010) - Cub Cadet XT3 Enduro Garden Tractor (2016) Front Pivot Axle Parts Diagram

XT3 Enduro Garden Tractor

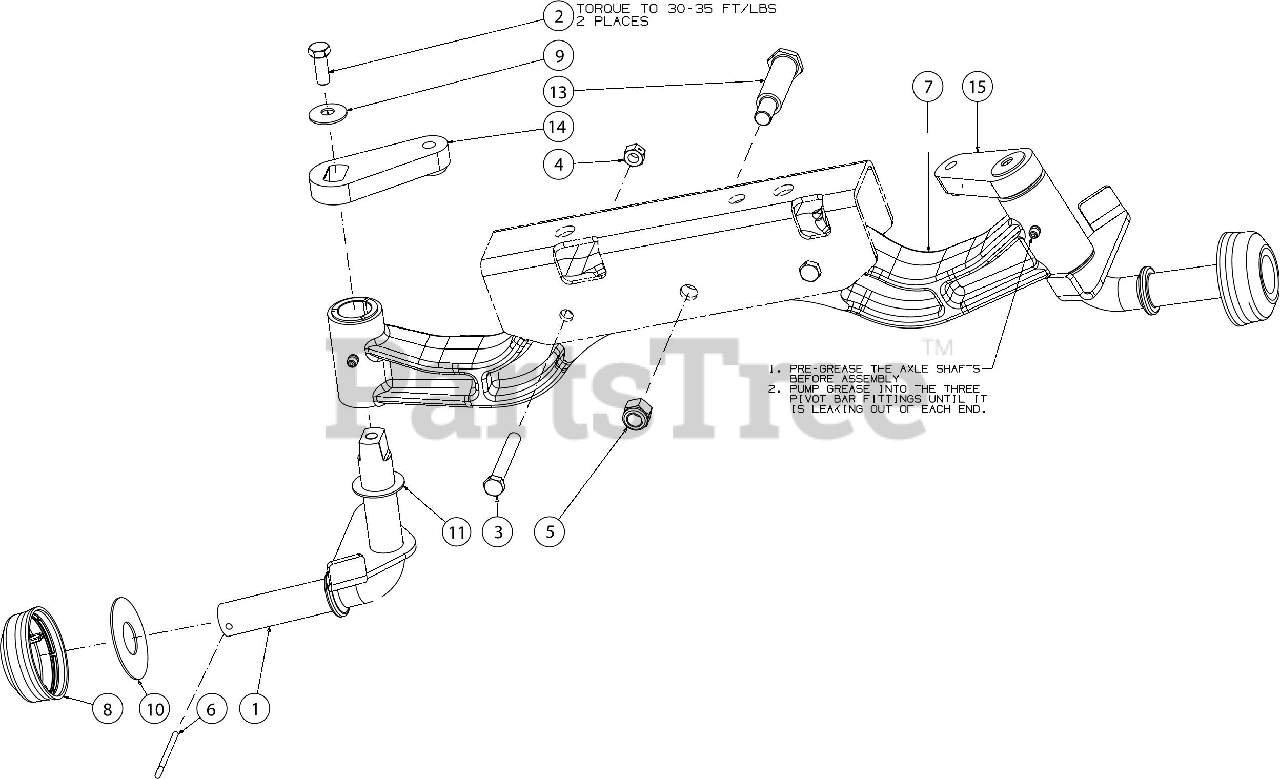

Front Pivot Axle Parts Diagram

  • Title

1

Cub Cadet 903-04913

FRONT AXLE ASSEMBLY

$98.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0591

SCREW 3/8-24 x 1.00 GR5

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 710-3066

SCREW 3/8-16 x 2.75 GR8

$5.49

$

In Stock, Qty 9

0

4

Cub Cadet 712-0375

HEX NUT

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0211

COTTER PIN

$3.99

$

In Stock, Qty 6

0

7

Cub Cadet 719-04721B

PIVOT BAR

$296.99

$

In Stock, only 1 left!

0

7

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-09347

CASTER AXLE CAP

$5.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0331

BELL WASHER .390x1.130x.062

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-05026

FLAT WASHER 1.05X2.50X.060

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0745

WASHER 1.010X1.560X.060

$11.99

$

In Stock, Qty 7

0

13

Cub Cadet 938-3110

SHOULDER SCREW

$30.99

$

In Stock, Qty 7

0

14

Cub Cadet 748-04286

STEERING ARM (LH)

$39.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 748-04290

STEERING ARM (RH)

$39.99

$

In Stock, only 1 left!

0
