XT3-GSE (14Z-3GE-010) - Cub Cadet XT3 Enduro Garden Tractor (2015) Drive Assembly Parts Diagram

XT3 Enduro Garden Tractor

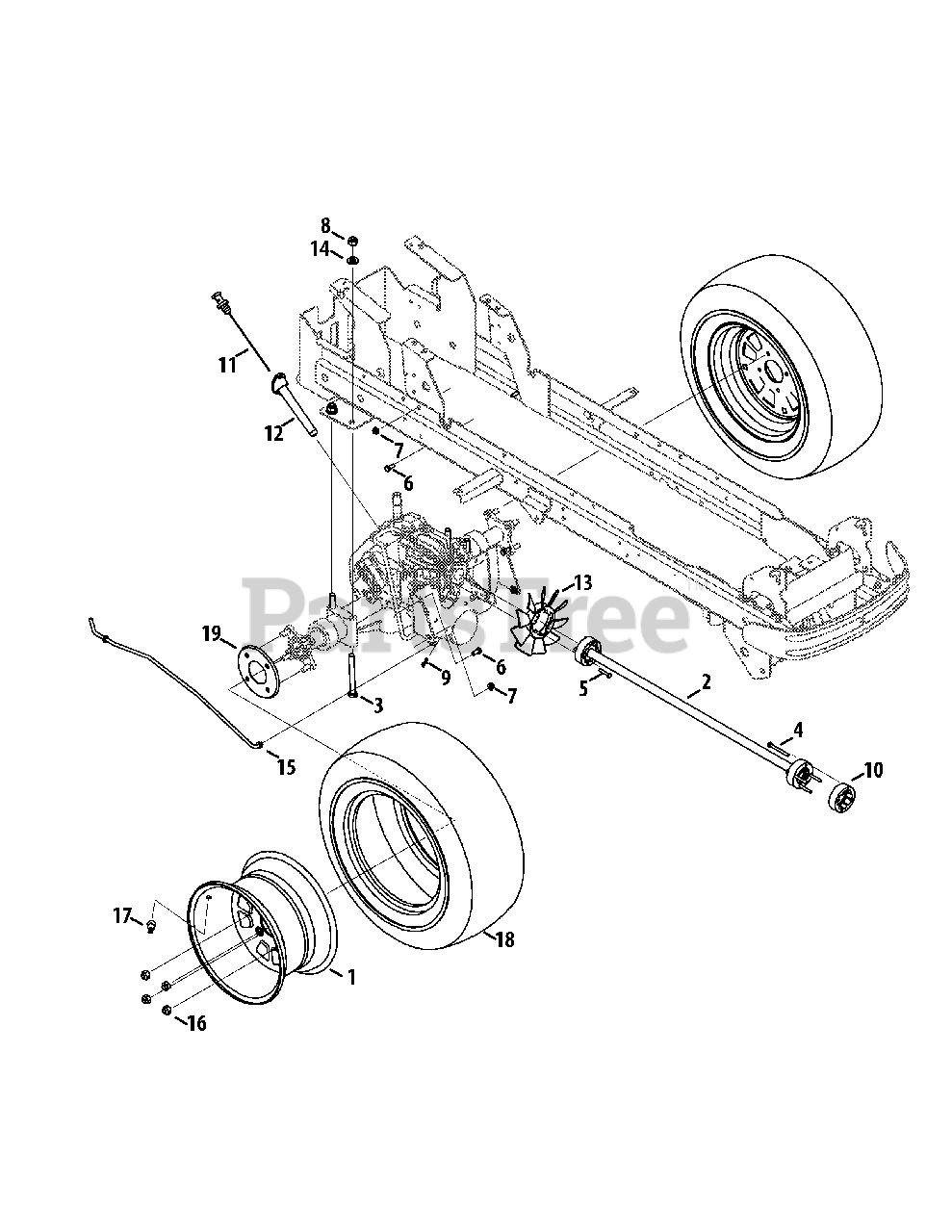

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 634-05112-0499

Rim Assembly, 12.0 x 7.0
(Superseded to 753-10244)

$197.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04993

Shaft Assembly, 30.55

$313.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 759-3764

Drive Barrel Kit

Note: (not shown)

$29.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0465

Hex Screw, 1/2-20 x 4.50

$12.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04743

Hex Screw, 1/4-20 x 2.50

$5.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1062

Hex Screw, 1/4-20 x 1.25

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 13

0

9

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

10

Cub Cadet 718-04428A

Drive Shaft Adapter

$63.99

$

In Stock, only 2 left!

0

11

Cub Cadet 727-3148

Transaxle Dipstick

$31.99

$

In Stock, Qty 5

0

12

Cub Cadet 731-3245

Dipstick Holder

$34.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-3297

Pump Fan, 7.0

$40.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$6.49

$

In Stock, only 1 left!

0

15

Cub Cadet 747-05509B

Hydro Relief Lever

$39.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-3050

Lug Nut, 7/16-14

$10.99

$

In Stock, Qty 20+

0

17

Cub Cadet 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 734-05116-0901

Tire, 23.0 x 10.5 x 12

$347.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-06936-0637

Rim Plate

$26.99

$

Usually ships in 3-6 days

0
