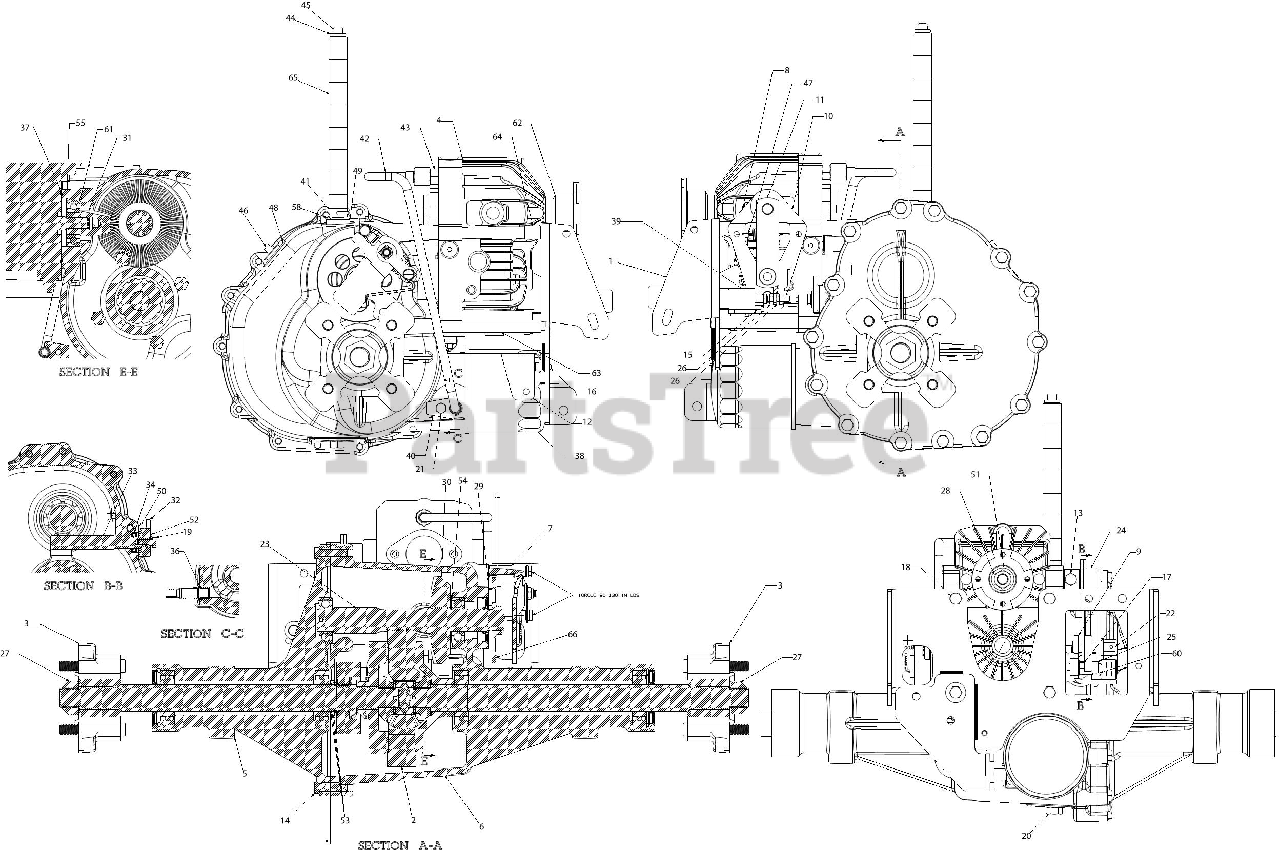

XT3-GSX (14RD3LE-010) - Cub Cadet XT3 Enduro Garden Tractor (2022) Transmission Parts Diagram

XT3 Enduro Garden Tractor

Transmission Parts Diagram

  • Title

1

Cub Cadet 603-05250-0637

TORQUE BRACKET ASSEMBLY

$93.99

$

Usually ships in 3-6 days

0

2

DIFFERENTIAL ASSEMBLY

$

$

Not available

2

Cub Cadet 911-1308

AXLE SHAFT

Note: (Not Shown)

$212.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 916-0172

RETAINING RING

Note: (Not Shown)

$8.99

$

In Stock, only 3 left!

0

2

Cub Cadet 717-1119

DIFFERENTIAL GEAR

Note: (Not Shown)

$47.99

$

In Stock, only 3 left!

0

2

Cub Cadet 918-07164

DIFF LOCK COLLAR ASSEMBLY

Note: (Not Shown)

$184.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 711-1309

AXLE SHAFT

Note: (Not Shown)

$248.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 916-0172

RETAINING RING

Note: (Not Shown)

$8.99

$

In Stock, only 3 left!

0

2

Cub Cadet 716-3018

SNAP RING

Note: (Not Shown)

$7.49

$

In Stock, only 2 left!

0

2

Cub Cadet 717-1119

DIFFERENTIAL GEAR

Note: (Not Shown)

$47.99

$

In Stock, only 3 left!

0

2

Cub Cadet 718-3099B

DIFF LOCK HOUSING

Note: (Not Shown)

$312.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 732-0856

COMPRESSION SPRING

Note: (Not Shown)

$33.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0615

THRUST WASHER

Note: (Not Shown)

$9.49

$

In Stock, only 1 left!

0

2

Cub Cadet 619-3086

DIFF LOCK HOUSING

Note: (Not Shown)

$82.99

$

In Stock, only 3 left!

0

2

Cub Cadet 710-1254

SCREW 3/8-24X2.25 GR8

Note: (Not Shown)

$7.99

$

In Stock, only 1 left!

0

2

Cub Cadet 717-1120

MITER GEAR

Note: (Not Shown)

$34.99

$

In Stock, only 4 left!

0

2

Cub Cadet 717-1173

CROSS SHAFT

Note: (Not Shown)

$41.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 717-1178

CROSS SHAFT

Note: (Not Shown)

$30.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 717-1180

DIFFERENTIAL PINION BLOCK

Note: (Not Shown)

$35.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 717-3466

SPUR GEAR 60T

Note: (Not Shown)

$296.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 718-3101

THRUST MITER BLOCK

Note: (Not Shown)

$13.99

$

In Stock, only 2 left!

0

2

Cub Cadet 736-0558

FLAT WASHER 1.187X1.56X.062

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 936-0864

THRUST WASHER

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-3210A

WHEEL HUB ASSEMBLY

$152.99

$

In Stock, only 1 left!

0

4

Cub Cadet 918-3243

HYDRO PUMP

Note: (See Separate Breakdown)

$1598.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 919-05134

TRANSMISSION HOUSING (LH)

$342.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 921-3020A

OIL SEAL

Note: (Not Shown)

$12.99

$

In Stock, Qty 20+

0

5

Cub Cadet 741-3114

BALL BEARING

Note: (Not Shown)

$27.99

$

In Stock, Qty 20+

0

5

Cub Cadet 716-0180

RETAINING RING

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 941-3033A

BALL BEARING

Note: (Not Shown)

$57.99

$

In Stock, only 2 left!

0

6

Cub Cadet 919-3066A

TRANSMISSION HOUSING (RH)

$1034.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 721-0523

OIL SEAL 1.0X2.04X.27

Note: (Not Shown)

$16.99

$

In Stock, Qty 9

0

6

Cub Cadet 921-3020A

OIL SEAL

Note: (Not Shown)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet 741-3114

BALL BEARING

Note: (Not Shown)

$27.99

$

In Stock, Qty 20+

0

6

Cub Cadet 941-3033A

BALL BEARING

Note: (Not Shown)

$57.99

$

In Stock, only 2 left!

0

6

Cub Cadet 716-0180

RETAINING RING

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

7

BRACKET ASSEMBLY (RH)

Note: (Components Only)

$

$

Not available

7

Cub Cadet 761-3074

BRAKE ACTUATOR ARM

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0641

SCREW 1/4-20 x 2.25 GR5

Note: (Not Shown)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 936-0142

FLAT WASHER .281 x .50 x .063
(Superseded to 736-0142)

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 761-0208

BRACKET

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 761-0207A

BRAKE YOKE

Note: (Not Shown)

$42.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 917-0682

PUCK PLATE

Note: (Not Shown)

$10.99

$

In Stock, Qty 16

0

7

Cub Cadet 941-0343

ACTUATING PIN
(Superseded to 741-0343)

Note: (Not Shown)

$

$

Not available

7

Cub Cadet 732-0925

TORSION SPRING

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0371

FLAT WASHER

Note: (Not Shown)

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 917-0678

BRAKE PUCK

Note: (Not Shown)

$7.99

$

In Stock, Qty 20+

0

7

Cub Cadet 912-0273

NUT

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05042

NEUTRAL ARM (LH)

$46.99

$

Usually ships in 3-6 days

0

9

NEUTRAL RETURN ARM

Note: (Not Serviceable)

$

$

Not available

10

Cub Cadet 703-08779

NEUTRAL ARM (RH)

$28.99

$

Usually ships in 3-6 days

0

11

NEUTRAL CONTROL ARM

Note: (Not Serviceable)

$

$

Not available

12

Cub Cadet 703-4093-0637

DUMP VALVE PLATE

$30.99

$

In Stock, Qty 6

0

13

Cub Cadet 710-04171

BOLT 5/16-24 x .625 GR2

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0573

SCREW 5/16-18 x 1.25 GR5

$6.99

$

In Stock, only 4 left!

0

15

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-06331

SCREW 5/16-18 x 5.19 GR5

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-1633

SCREW M14X1.5X.827

$15.99

$

In Stock, only 1 left!

0

21

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$4.49

$

In Stock, Qty 20+

0

22

NEUTRAL CONTROL WELD PIN

Note: (Not Serviceable)

$

$

Not available

23

Cub Cadet 711-1385A

OUTPUT SHAFT 9T

$191.99

$

Usually ships in 3-6 days

0

24

ADAPTOR HUB

Note: (Not Serviceable)

$

$

Not available

25

WELD PIN

Note: (Not Serviceable)

$

$

Not available

26

Cub Cadet 912-0298

HEX NUT

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0682

HEX NUT

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-3059

HEX NUT

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 917-0678

BRAKE PUCK

$7.99

$

In Stock, Qty 20+

0

30

Cub Cadet 717-3449

BEVEL GEAR 54T

$452.99

$

Usually ships in 3-6 days

0

31

BEVEL GEAR

Note: (Not Serviceable)

$

$

Not available

32

Cub Cadet 718-05395

DIFF LOC ACTUATE ARM

$15.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 918-05400

DIFF LOC ACTUATOR YOKE

$89.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 721-0393

OIL SEAL .5000 x .8750 x .2500

$13.99

$

In Stock, Qty 5

0

36

Cub Cadet 721-0459

O-RING .426X.566X.070

$8.49

$

In Stock, Qty 6

0

37

Cub Cadet 721-0519

GLAND SEAL

$37.99

$

In Stock, only 2 left!

0

38

Cub Cadet 923-3014

HYDRAULIC FILTER

$21.99

$

In Stock, Qty 20+

0

39

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$16.99

$

In Stock, Qty 20+

0

40

Cub Cadet 726-0295

TUBE CLAMP

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 926-0324

FUEL HOSE CLAMP

$7.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 727-0636

HYDRO PICKUP TUBE

$87.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 927-3002

SWIVEL CONNECTOR

$13.99

$

In Stock, only 2 left!

0

44

Cub Cadet 731-1480

PLASTIC VENT

$16.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 731-1481

VENT CAP

$10.99

$

Usually ships in 3-6 days

0

46

SHIPPING PART

Note: (Not Serviceable)

$

$

Not available

47

Cub Cadet 732-3119A

EXTENSION SPRING

$24.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 735-0277A

RUBBER GROMMET

$10.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 735-0279

VENT FITTING GROMMET

$7.99

$

In Stock, only 2 left!

0

50

Cub Cadet 936-0208

WASHER .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

51

Cub Cadet 936-0253

BELL WASHER
(Superseded to 736-0253)

$

$

Not available

52

Cub Cadet 736-0270

SPRING WASHER BELL

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0558

FLAT WASHER 1.187X1.56X.062

$5.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-0615

THRUST WASHER

$9.49

$

In Stock, only 1 left!

0

55

Cub Cadet 736-0619

SPRING WASHER

$19.99

$

In Stock, Qty 5

0

58

Cub Cadet 737-3092

VENT TUBE FITTING

$14.99

$

In Stock, only 1 left!

0

60

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, only 2 left!

0

61

Cub Cadet 941-3037

PTO SHAFT BALL BEARING

$44.99

$

In Stock, Qty 14

0

62

Cub Cadet 748-3093

PUMP ADAPTER SPLINED

$149.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 750-06421

HYDRO SPACER .364 x .540 x 3.51

$11.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 750-3350

SPACER-HYDRO .323X.600 x .740

$8.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 751-0588-8

FUEL LINE 1/2" ID

$13.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 761-0215

BRAKE-DISC 43TEETH

$22.99

$

In Stock, Qty 6

0

Cub Cadet 937-3022

OIL FILTER NIPPLE

Note: (Not Shown)

$16.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07213

SERVICE TRANSMISSION

Note: (W/O hubs & pump)

$2206.99

$

Usually ships in 3-6 days

0
