XT3-GSX (14WD3LE-010) - Cub Cadet XT3 Enduro Garden Tractor (2015) Transaxle Assembly Parts Diagram

XT3 Enduro Garden Tractor

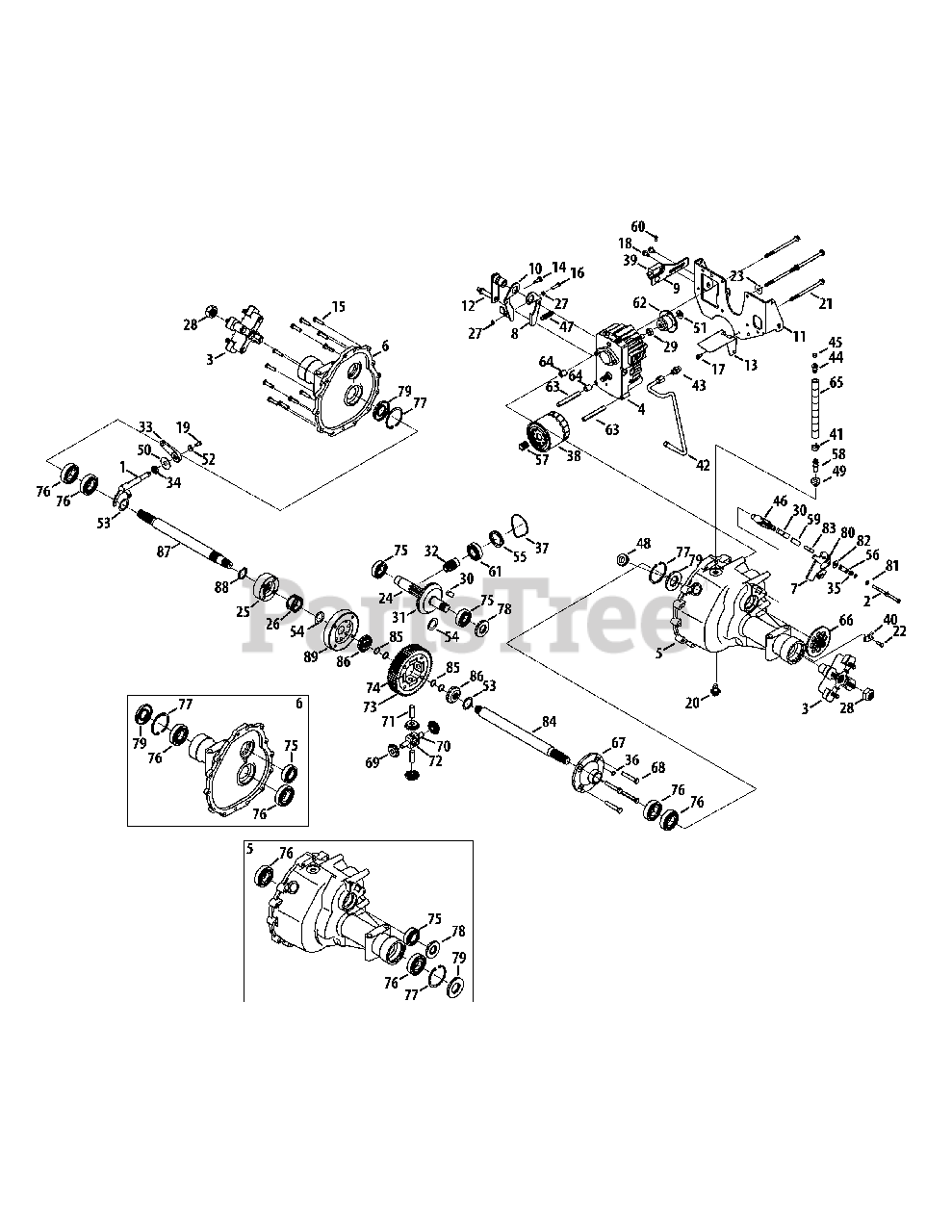

Transaxle Assembly Parts Diagram

  • Title

1

Cub Cadet 918-05400

Actuator Shift Assembly

$83.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0641

Hex Washer Screw, 1/4-20 x 2.25

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet 618-3210A

Wheel Hub Assembly

$144.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-3243

Pump Assembly

$1508.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 919-3066A

RH Housing

$975.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 919-05134

LH Housing

$322.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 761-3074

Brake Arm Actuator

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05042

Neutral Arm, LH

$43.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 603-04921

Neutral Return Arm

$26.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08779

Neutral Arm

$26.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 603-0707B

Torque Bracket

$41.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 603-04340A

Neutral Control Arm

$47.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-4093-0637

Hydro Dump Spring Plate

$28.99

$

In Stock, only 2 left!

0

14

Cub Cadet 710-04171

Hex Screw, 5/16-24 x .625

$5.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0573

Hex Lock Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0597

Hex Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 18

0

17

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-1633

Plug Screw, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

21

Cub Cadet 710-1888

Hex Washer Screw, 5/16-18 x 5.350

$9.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3089

Flat Washer, .345 x 1.00 x .07

$

$

Not available

24

Cub Cadet 711-1385A

Output Shaft, 9T

$180.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 918-07164

Differential Collar Assembly

$174.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0856

Spring, Compression

$31.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0682

Nut, Lock, 7/8-14

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-3059

Jam Lock Nut, 1/2-20

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 917-0678

Brake Pad

$7.49

$

In Stock, Qty 20+

0

31

Cub Cadet 717-3449

Bevel Gear, 54T

$427.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 617-3002

Bevel Gear, 13T

Note: (Incl. Ref 61)

$

$

Not available

33

Cub Cadet 718-05395

Actuator Arm

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 721-0393

Oil Seal

$12.99

$

In Stock, only 2 left!

0

35

Cub Cadet 912-0273

Hex Lock Nut, 5/16-24

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 721-0459

0-Ring, .426 x .566 x .070

$7.99

$

In Stock, Qty 11

0

37

Cub Cadet 721-0519

Gland Seal

$35.99

$

In Stock, only 1 left!

0

38

Cub Cadet 923-3014

Oil Filter

$20.99

$

In Stock, Qty 20+

0

39

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

40

Cub Cadet 726-0295

Tube Clamp, .500

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 926-0324

Fuel Clamp

$7.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 727-0636

Hydro Pick-Up Tube

$82.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 927-3002

Straight Fitting

$12.99

$

In Stock, only 1 left!

0

44

Cub Cadet 731-1480

Plastic Vent

$15.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 731-1481

Plastic Vent Cap

$10.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 761-0207A

Brake Yoke

$40.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 732-3119A

Extension Spring, .50 x 1.98

$23.99

$

In Stock, only 2 left!

0

48

Cub Cadet 735-0277A

Rubber Grommet, .750 x 1.063 x .4375

$10.99

$

In Stock, only 2 left!

0

49

Cub Cadet 735-0279

Grommet, .362 x .56 x .63

$7.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 936-0208

Flat Washer, .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

51

Cub Cadet 936-0253

Bell Washer, .525 x 1.00 x .050
(Superseded to 736-0253)

$

$

Not available

52

Cub Cadet 736-0270

Bell Washer, .265 x .750 x .060

$3.99

$

In Stock, Qty 9

0

53

Cub Cadet 736-0558

Washer, Flat, 1.187 x 1.56 x .062

$5.49

$

In Stock, only 2 left!

0

54

Cub Cadet 736-0615

Thrust Washer, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 3 left!

0

55

Cub Cadet 736-0619

Spring Washer, 1.595 x 2.011 x .030

$18.99

$

In Stock, only 1 left!

0

56

Cub Cadet 761-0208

Anti-Rotation Brake Bracket

$7.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 937-3022

Filter Nipple Fitting

$15.99

$

In Stock, only 1 left!

0

58

Cub Cadet 737-3092

Tube Fitting, .500

$14.99

$

In Stock, only 1 left!

0

59

Cub Cadet 917-0682

Puck Plate

$9.99

$

In Stock, Qty 7

0

60

Cub Cadet 738-04237A

Shoulder Screw, 10-32 x .500

$6.49

$

In Stock, Qty 20+

0

61

Cub Cadet 941-3037

Ball Bearing

$41.99

$

In Stock, Qty 17

0

62

Cub Cadet 748-3093

Hydro Pump Adaopter

$140.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 750-3349

Hydro Spacer, .323 x .443 x 3.51

$10.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 750-3350

Hydro Spacer, .323 x .600 x .740

$7.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 751-0588-18

Fuel Line, 1/2

$31.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 761-0215

Disc Brake

$20.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 619-3086

Housing, Diff. Cover

$77.99

$

In Stock, only 3 left!

0

68

Cub Cadet 710-1254

Hex Cap Screw, 3/8-24 x 2.25 GR8

$7.99

$

In Stock, Qty 9

0

69

Cub Cadet 717-1120

Gear, Differential 10T

$32.99

$

In Stock, only 4 left!

0

70

Cub Cadet 717-1173

Shaft, Cross, .5 x 3.485

$38.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 717-1178

Shaft, Cross, Special

$28.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 717-1180

Differential Pinion Block

$33.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 717-3466

Gear, Spur 60T

$280.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 718-3101

Block, Thrust Miter

$13.99

$

In Stock, only 2 left!

0

75

Cub Cadet 741-3114

Ball Bearing, 1 x 52 x 15

$26.99

$

In Stock, only 3 left!

0

76

Cub Cadet 941-3033A

Ball Bearing

$53.99

$

In Stock, Qty 8

0

77

Cub Cadet 716-0180

Retainer Ring

$11.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 721-0523

Oil Seal, 1.00 x 2.047 x .2755

$15.99

$

In Stock, Qty 8

0

79

Cub Cadet 921-3020A

Seal, Oil, 1.181 x 2.453 x .276

$12.99

$

In Stock, Qty 20+

0

80

Cub Cadet 732-0925

Torsion Spring, .75 x 3

$9.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 936-0142

Flat Washer, .281 x .50 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, only 3 left!

0

82

Cub Cadet 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, Qty 7

0

83

Cub Cadet 941-0343

Brake Actuator Pin
(Superseded to 741-0343)

$

$

Not available

84

Cub Cadet 911-1308

Axle Shaft, 1.181 x 15.08

$200.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 916-0172

Retaining Ring

$8.49

$

In Stock, Qty 5

0

86

Cub Cadet 717-1119

Gear, 14T Differential Side

$44.99

$

In Stock, only 3 left!

0

87

Cub Cadet 711-1309

Axle Shaft, 1.181 x 15.08, LH

$233.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 716-3018

Retaining Ring

$6.99

$

In Stock, only 2 left!

0

89

Cub Cadet 718-3099B

Housing, Diff Lock

$295.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07213

Service Replacement Transmission w/Diff Lock

Note: (without wheel hubs and hydro pump)

$2082.99

$

Usually ships in 3-6 days

0
