Y 1238 E - Electrolux/AYP Lawn Tractor (1991) STEERING, FRONT AXLE AND WHEELS Parts Diagram

Lawn Tractor

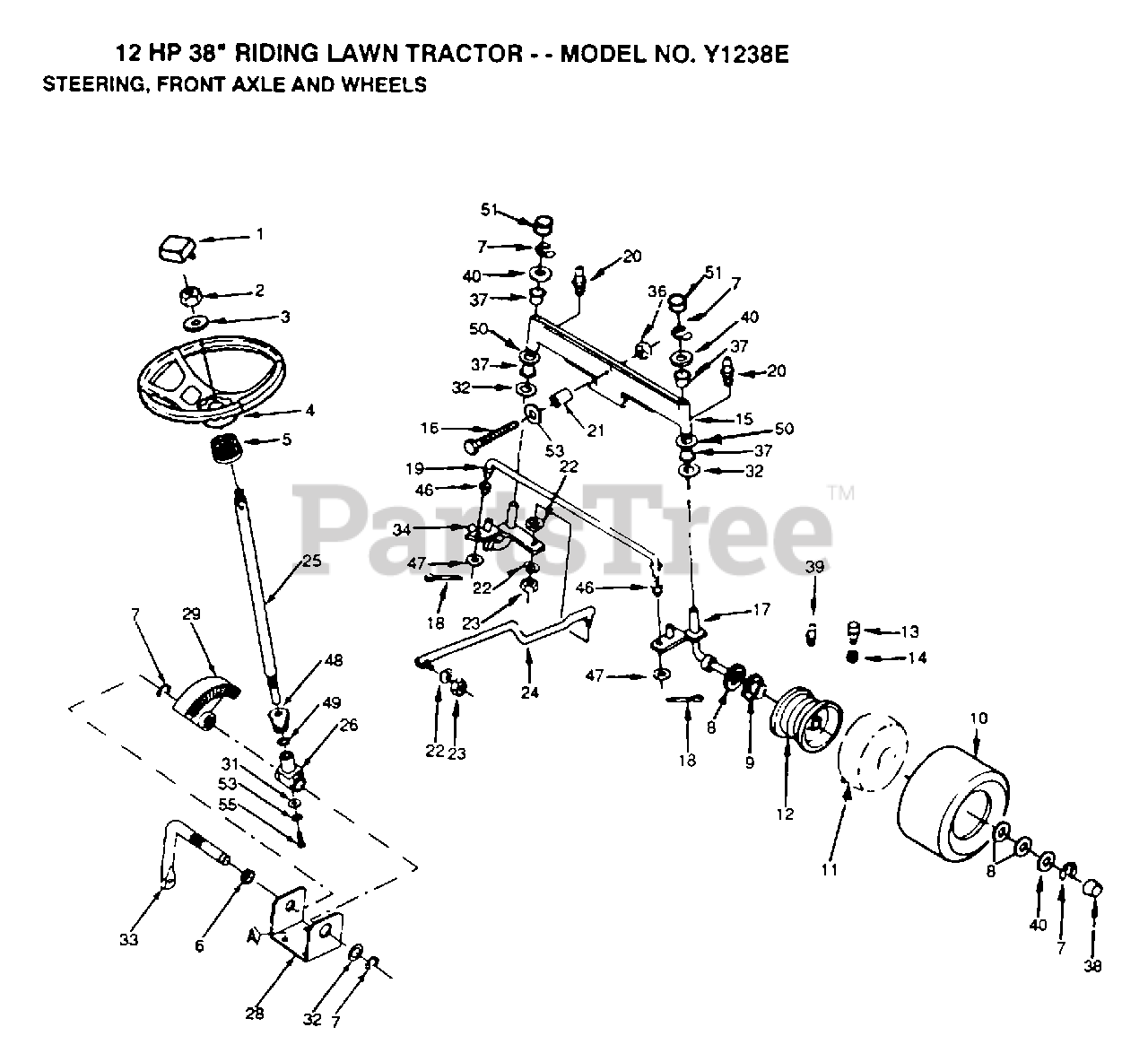

STEERING, FRONT AXLE AND WHEELS Parts Diagram

  • Title

1

Electrolux/AYP 121584X

INSERT STEERING
(Superseded to 583665801)

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, Qty 11

0

3

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

4

Electrolux/AYP 121472X

SUB= 150546

$

$

Not available

5

Electrolux/AYP 110711L

SUB= 100711L

$

$

Not available

6

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 3 left!

0

7

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

In Stock, Qty 20+

0

9

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$6.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 106222X

SUB= 122073X
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 106732X361

SUB= 106732X417

$

$

Not available

13

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, only 1 left!

0

15

Electrolux/AYP 108076X

SUB= 108075X

$

$

Not available

16

Electrolux/AYP 74761060

BOLT LT
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 105654X

SUB= 130524

$

$

Not available

18

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 105715X

ROD-TIE LT

$

$

Not available

20

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 110438X

BEARING
(Superseded to 532110438)

$

$

Not available

22

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 124032X

SUB= 532130468

$

$

Not available

25

Electrolux/AYP 124042X

SUB= 128758

$

$

Not available

26

Electrolux/AYP 124035X

SUPPORT.SHAFT
(Superseded to 532160395)

$9.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 124036X

"BRKT,STEERING"
(Superseded to 532124036)

$

$

Not available

29

Electrolux/AYP 124034X

SUB= 136874

$

$

Not available

31

Electrolux/AYP 126684X

SUB= 532126684

$

$

Not available

32

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 124033X

SUB= 156365

$

$

Not available

34

Electrolux/AYP 105656X

SPINDLE-LH LT
(Superseded to 532105656)

$

$

Not available

36

Electrolux/AYP 73601000

SUB= 73901000

$

$

Not available

37

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0

38

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$3.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$3.49

$

In Stock, Qty 20+

0

46

Electrolux/AYP 120754X

SUB= 126847X

$

$

Not available

47

Electrolux/AYP 19131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, Qty 5

0

48

Electrolux/AYP 124037X

"GEAR,PINION"
(Superseded to 532124037)

$

$

Not available

49

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 20+

0

50

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 4 left!

0

51

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 19212010

WASHER

$2.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 71070410

"SCREW,SPECIAL"
(Superseded to 71070510)

$

$

Not available
