Y 125 (21AK125G800) - Yard Machines Tiller (2015) Engine Assembly Parts Diagram

Tiller

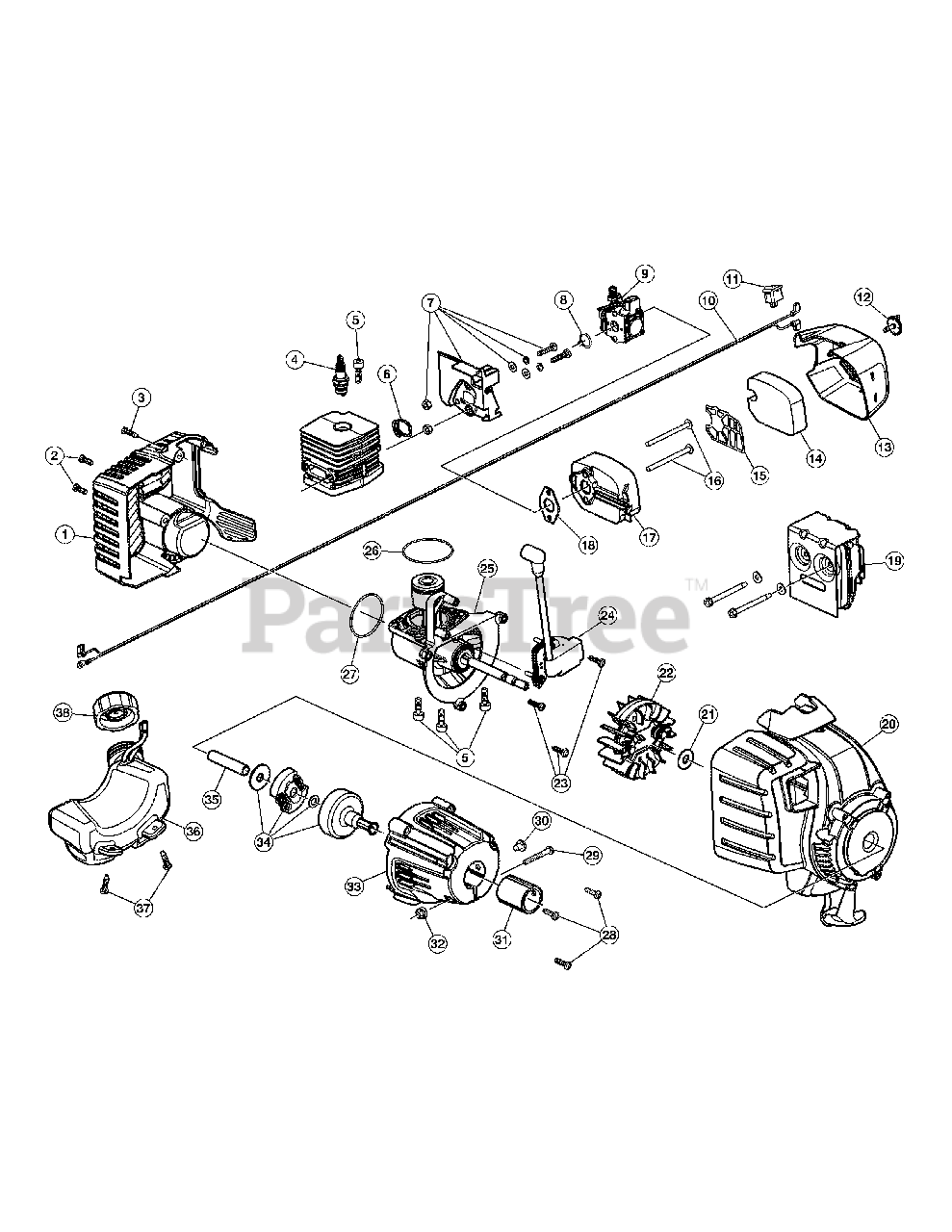

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06833

Rear Housing Assembly (Incl. 2 and 3)

$11.99

$

In Stock, Qty 6

0

2

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

3

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 17

0

4

MTD 753-08216

Spark Plug
(Superseded to 794-00097)

$6.99

$

In Stock, only 1 left!

0

5

MTD 791-182723

Screw

$4.49

$

In Stock, Qty 20+

0

6

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

7

MTD 753-06189

Insulator Assembly (Incl. 6 and 8)

$7.99

$

In Stock, Qty 20+

0

8

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

9

MTD 753-06423

Carburetor
(Superseded to 753-06190)

$35.99

$

In Stock, Qty 20+

0

10

MTD 725-06303

Lead Wire

$13.99

$

Usually ships in 3-6 days

0

11

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

12

MTD 753-06838

Screw

$3.49

$

In Stock, Qty 20+

0

13

MTD 753-06837

Air Cleaner Cover

$3.99

$

Usually ships in 3-6 days

0

14

MTD 753-06836

Air Filter

$3.49

$

In Stock, only 1 left!

0

15

MTD 753-06835

Plate

$3.49

$

In Stock, only 4 left!

0

16

MTD 710-04517

Screw

$5.49

$

In Stock, Qty 6

0

17

MTD 753-06834

Air Cleaner Base

$

$

Not available

18

MTD 753-06253

Gasket

$3.49

$

In Stock, Qty 20+

0

19

MTD 753-06792

Muffler Assembly

$30.99

$

Usually ships in 3-6 days

0

20

MTD 753-08374

Starter Housing Assembly

$27.99

$

Usually ships in 3-6 days

0

21

MTD 753-06247

Washer

$3.49

$

In Stock, Qty 5

0

22

MTD 753-06175

Flywheel

$19.99

$

In Stock, Qty 7

0

23

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

24

MTD 753-08255

Module Assembly

$36.99

$

Usually ships in 3-6 days

0

25

MTD 753-06841

Shortblock (Incl. 4, 5, 19, 21, 22, 23)

$106.99

$

Usually ships in 3-6 days

0

26

MTD 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 20+

0

27

MTD 753-06174

O-Ring

$2.99

$

In Stock, Qty 20+

0

28

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 17

0

29

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

30

MTD 710-05401

Bolt

$3.49

$

Usually ships in 3-6 days

0

31

MTD 735-04278

Rubber Spacer

$4.49

$

Usually ships in 3-6 days

0

32

MTD 712-0161

Nut

$4.49

$

In Stock, Qty 8

0

33

MTD 753-06843

Clutch Cover

$11.99

$

Usually ships in 3-6 days

0

34

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 20+

0

35

MTD 753-06218

Spacer

$2.99

$

In Stock, only 1 left!

0

36

MTD 753-06846

Fuel Tank (Incl. 37 and 38)

$16.99

$

In Stock, Qty 6

0

37

MTD 791-181930

Fuel Tank Screw

$6.99

$

In Stock, Qty 9

0

38

MTD 791-182612

Fuel Tank Cap

$20.99

$

In Stock, Qty 18
