Y 125H42 A - Electrolux/AYP Lawn Tractor (1995) TRANSAXLE Parts Diagram

Lawn Tractor

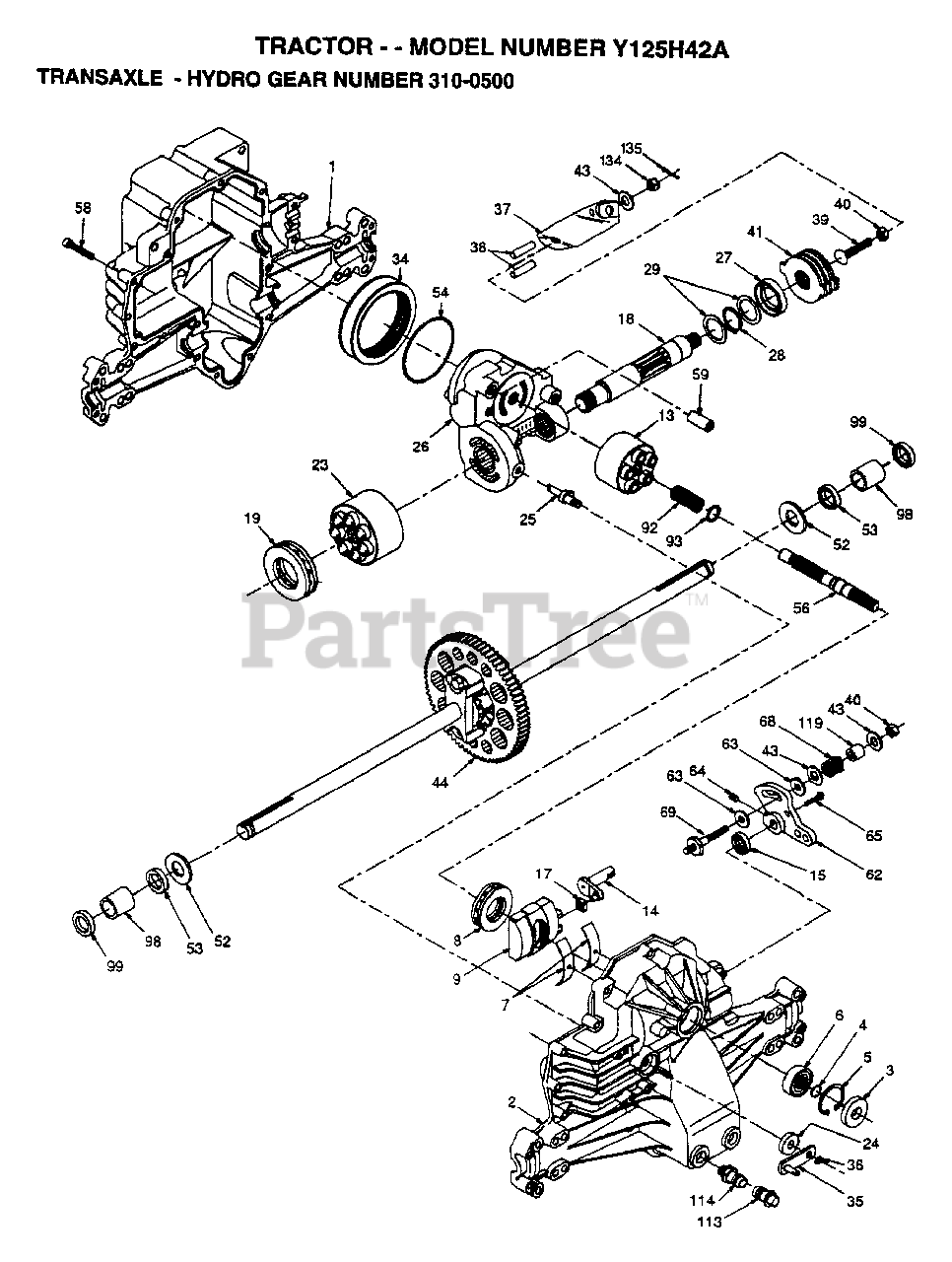

TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 142969

SPRING.HYD.50277
(Superseded to 532142969)

$

$

Not available

2

Electrolux/AYP 142987

HOUSING.UPR.70122
(Superseded to 532142987)

$

$

Not available

3

Electrolux/AYP 142932

SEAL.9008000-0128
(Superseded to 532142932)

$

$

Not available

4

Electrolux/AYP 142928

RING.RET.2003016.
(Superseded to 532142928)

$

$

Not available

5

Electrolux/AYP 142933

RING.RET.2003052.
(Superseded to 532142933)

$

$

Not available

6

Electrolux/AYP 142934

BEARING.(50552)42X68X16
(Superseded to 122745X)

$136.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 142935

CRADLE- 2003023.
(Superseded to 532142935)

$45.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 142936

BEARING.2003044.
(Superseded to 532150771)

$

$

Not available

9

Electrolux/AYP 142937

SWASHPLT.2003087.
(Superseded to 532142937)

$

$

Not available

13

Electrolux/AYP 142938

BLOCK.CLYN.70079.
(Superseded to 532169898)

$

$

Not available

14

Electrolux/AYP 142939

ARM.TRUN.2003005.
(Superseded to 532142939)

$

$

Not available

15

Electrolux/AYP 142940

SEAL.9008000-0126
(Superseded to 532142940)

$

$

Not available

17

Electrolux/AYP 142941

GUIDE.2000015.
(Superseded to 532142941)

$

$

Not available

18

Electrolux/AYP 142988

SHAFT.HYD.2003557

$102.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 142943

BEARING.THS.50019
(Superseded to 532142943)

$

$

Not available

23

Electrolux/AYP 142944

BLOCK.CYLIN.70082
(Superseded to 532142944)

$

$

Not available

24

Electrolux/AYP 142945

SEAL.LIP.45074
(Superseded to 532142945)

$

$

Not available

25

Electrolux/AYP 142946

ACTUATOR.2003555
(Superseded to 532142946)

$

$

Not available

26

Electrolux/AYP 142947

KIT.CENTER.70133
(Superseded to 532142947)

$

$

Not available

27

Electrolux/AYP 142948

SEAL.LIP.45075
(Superseded to 532142948)

$

$

Not available

28

Electrolux/AYP 142949

RING RETAIN 50007
(Superseded to 532142949)

$

$

Not available

29

Electrolux/AYP 142950

WASHER.44872
(Superseded to 532142950)

$

$

Not available

34

Electrolux/AYP 142951

ELEMENT.OIL.44964
(Superseded to 532169893)

$159.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 142952

ARM.BYPASS.50270
(Superseded to 532142952)

$

$

Not available

36

Electrolux/AYP 142953

RING.RETAIN.44870
(Superseded to 532142953)

$

$

Not available

37

Electrolux/AYP 142954

ARM.ACTUAT.23710
(Superseded to 583156301)

$96.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 142955

PIN.ACTUAT.44891
(Superseded to 532142955)

$

$

Not available

39

Electrolux/AYP 142956

SUB= 149705
(Superseded to 582974501)

$

$

Not available

40

Electrolux/AYP 142957

NUT.LOCK.HX.50108
(Superseded to 532142957)

$

$

Not available

41

Electrolux/AYP 142958

KIT.BRAKE.70135
(Superseded to 532142958)

$

$

Not available

43

Electrolux/AYP 142884

WASHER HYD 44130
(Superseded to 532142884)

$

$

Not available

44

Electrolux/AYP 142990

DIFFERNTIAL.70126
(Superseded to 532142990)

$

$

Not available

52

Electrolux/AYP 142991

WASHER.HYD.44875
(Superseded to 532142991)

$

$

Not available

53

Electrolux/AYP 142961

SEAL.HYDRO.45076
(Superseded to 532142961)

$11.99

$

In Stock, only 2 left!

0

54

Electrolux/AYP 142962

O RING.HYD.45077
(Superseded to 532142962)

$

$

Not available

56

Electrolux/AYP 142963

SHAFT.INPUT.50005
(Superseded to 532142963)

$

$

Not available

58

Electrolux/AYP 142965

PIN.HYDRO.50002
(Superseded to 532142965)

$

$

Not available

59

Electrolux/AYP 142965

PIN.HYDRO.50002
(Superseded to 532142965)

$

$

Not available

62

Electrolux/AYP 142966

ARM.CONTROL.50254
(Superseded to 532142966)

$56.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 142967

PUCK.DAMPER.50281
(Superseded to 532142967)

$

$

Not available

64

Electrolux/AYP 142920

SCREW.SET.50018.
(Superseded to 532142920)

$20.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 142968

BOLT #8-32 X .875
(Superseded to 532142968)

$

$

Not available

68

Electrolux/AYP 142969

SPRING.HYD.50277
(Superseded to 532142969)

$

$

Not available

69

Electrolux/AYP 144610

STUD.5/16-24.DANA
(Superseded to 532144610)

$20.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 142677

GEAR SPUR 37 TTH
(Superseded to 582959701)

$

$

Not available

93

Electrolux/AYP 142978

WASHER.2003017
(Superseded to 532142978)

$13.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 142993

BEARING.SLV.50137
(Superseded to 532142993)

$

$

Not available

99

Electrolux/AYP 142976

SEAL.WIPER.50941
(Superseded to 532169054)

$

$

Not available

113

Electrolux/AYP 142917

CAP.VENT.70109
(Superseded to 532142578)

$

$

Not available

114

Electrolux/AYP 142918

O-RING.ASM.70110
(Superseded to 532142918)

$

$

Not available

119

Electrolux/AYP 142980

SPACER.HYD.50278
(Superseded to 532142980)

$

$

Not available

134

Electrolux/AYP 144607

NUT.CAS.HYD.44142
(Superseded to 532144607)

$

$

Not available

135

Electrolux/AYP 144608

PIN.COT.HYD.44101
(Superseded to 532142886)

$

$

Not available
