Y 146 EC (21AK146G800) - Yard Machines Tiller (2016) Engine Assembly Parts Diagram

Tiller

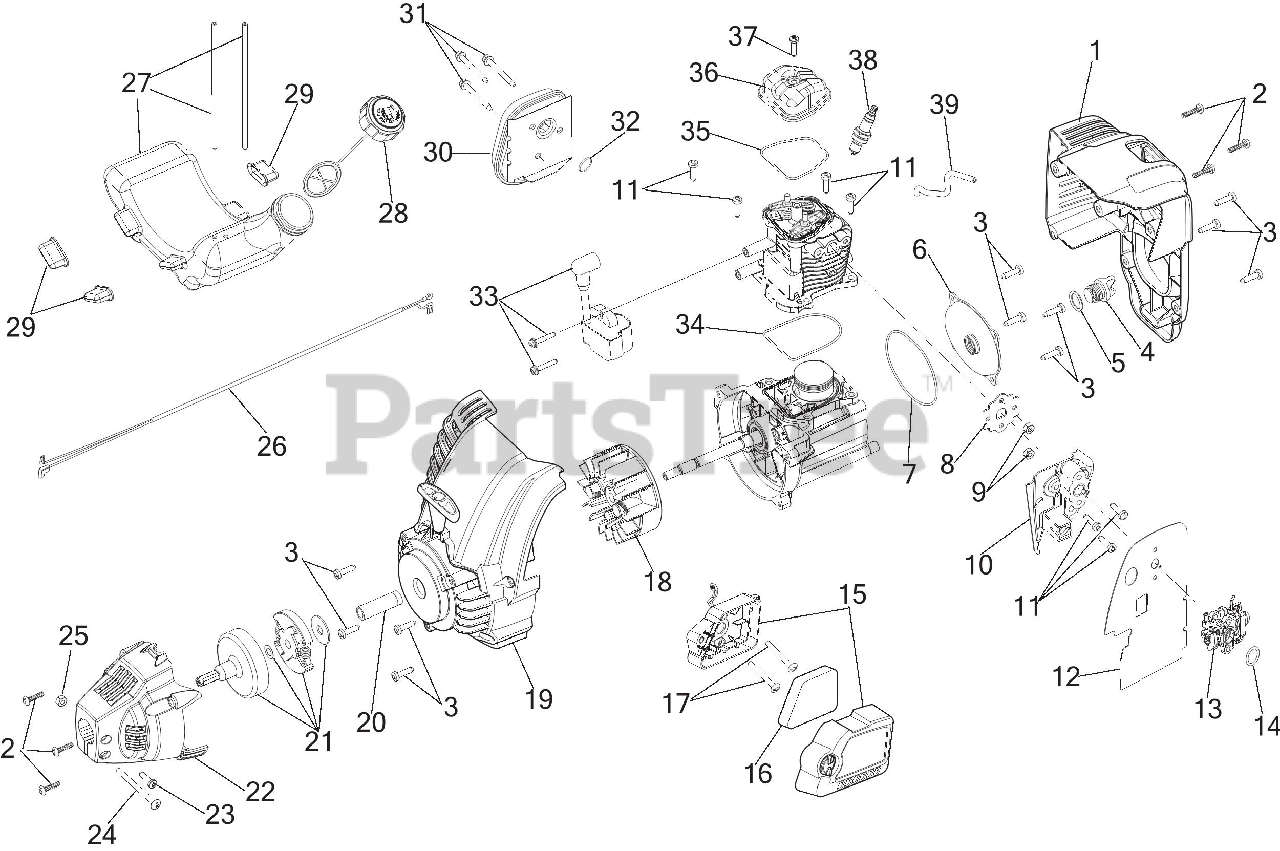

Engine Assembly Parts Diagram

  • Title

MTD 753-06799

SHORTBLOCK AC3.2

Note: (not shown)

$98.99

$

In Stock, only 4 left!

0

1

MTD 753-06237

ENGINE COVER ASSEMBLY RR

Note: (includes 2 & 3)

$20.99

$

In Stock, only 1 left!

0

2

MTD 710-04194

SCREW 8-16 x 3/4

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-04604

SCREW

$3.99

$

In Stock, Qty 12

0

4

MTD 753-05408

OIL PLUG

Note: (includes 5)

$27.99

$

In Stock, only 1 left!

0

5

MTD 791-182290

RING, OIL PLUG (AC

$4.99

$

Usually ships in 3-6 days

0

6

MTD 753-06111

CRANKCASE COVER
(Superseded to 841-020721S)

$12.99

$

In Stock, only 2 left!

0

7

MTD 753-05238

O-RING CRNKCSE CVR

$9.99

$

In Stock, only 1 left!

0

8

MTD 753-05247

GASKET/INSULATOR

$7.99

$

In Stock, Qty 7

0

9

MTD 712-04099

NUT 10-32

$6.49

$

In Stock, only 1 left!

0

10

MTD 753-05249

INSULATOR

$17.99

$

In Stock, only 1 left!

0

11

MTD 791-181003

SCREW, M5 x 18.7MM
(Superseded to 9052-1)

$

$

Not available

12

MTD 753-05366

CARBURETOR GASKET

$18.99

$

In Stock, Qty 14

0

13

MTD 753-08174

CARBURETOR

Note: (with Primer)

$32.99

$

In Stock, Qty 20+

0

14

MTD 791-181751

O-RING

$4.49

$

In Stock, Qty 20+

0

15

MTD 753-06020

AIR CLNR COVER

Note: (includes 16)

$8.99

$

In Stock, only 4 left!

0

16

MTD 753-05996

AIR FILTER

$3.49

$

In Stock, Qty 15

0

17

MTD 710-04517

SCREW 10-32X2.5

$4.99

$

Usually ships in 3-6 days

0

18

MTD 753-06221

FLYWHEEL ASSEMBLY AC3.1

$19.99

$

In Stock, only 1 left!

0

19

MTD 753-06666

STARTER HOUSING ASSEMBLY

Note: (includes 3)

$22.99

$

In Stock, Qty 7

0

20

MTD 750-04434

SPACER :2.165"

$6.49

$

In Stock, Qty 5

0

21

MTD 753-06281

CLUTCH ASSEMBLY

$20.99

$

In Stock, Qty 20+

0

22

MTD 753-05263

CLUTCH COVER ASSEMBLY

Note: (includes 2)

$25.99

$

In Stock, only 1 left!

0

23

MTD 710-04165

SCREW 8-18X.375 T-20

$2.49

$

In Stock, only 1 left!

0

24

MTD 753-04003

SCREW
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

25

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

26

MTD 725-06185

WIRE LEAD

$16.99

$

Usually ships in 3-6 days

0

27

MTD 753-06797

FUEL TANK ASSEMBLY

Note: (includes 28)

$20.99

$

Usually ships in 3-6 days

0

28

MTD 753-1229

FUEL CAP ASSEMBLY 43MM-6 W/O HOLE

$21.99

$

In Stock, only 2 left!

0

29

MTD 753-05259

FUEL TANK PADS

$6.49

$

In Stock, only 1 left!

0

30

MTD 753-06238

MUFFLER ASSEMBLY

Note: (includes 31 & 32)

$28.99

$

Usually ships in 3-6 days

0

31

MTD 710-04487

SCREW/MUFFLER
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

32

MTD 753-05244

GASKET/MUFFLER

$5.49

$

In Stock, Qty 11

0

33

MTD 753-08376

MODULE ASSEMBLY RFI

$28.99

$

Usually ships in 3-6 days

0

34

MTD 753-05910

O-RING CYL AC5

$2.99

$

In Stock, only 3 left!

0

35

MTD 753-05902

O-RING

$4.99

$

Usually ships in 3-6 days

0

36

MTD 753-05901

ROCKER COVER

$7.99

$

Usually ships in 3-6 days

0

37

MTD 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

38

MTD 794-00098

SPARK PLUG 10MM:EM

$6.49

$

In Stock, only 2 left!

0

39

MTD 791-182379

HOSE, BREATHER

$4.49

$

In Stock, only 1 left!

0
