Y 146 EC (21AK146G800) - Yard Machines Tiller (2016) General Assembly Parts Diagram

Tiller

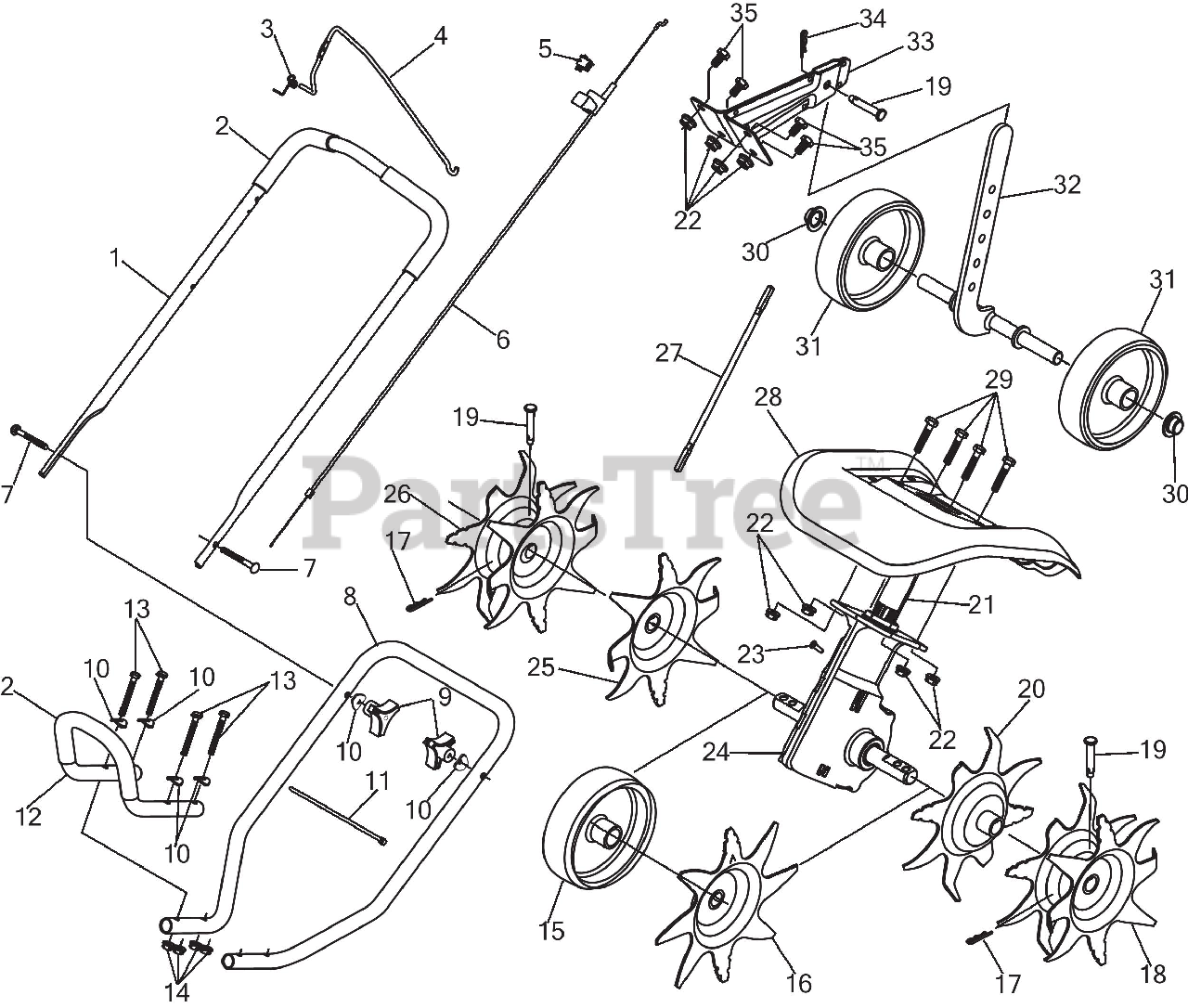

General Assembly Parts Diagram

  • Title

1

MTD 753-06319

HANDLE UPR

$23.99

$

Usually ships in 3-6 days

0

2

MTD 720-0294

FOAM GRIP 9"
(Superseded to 720-0294A)

$7.99

$

In Stock, only 3 left!

0

3

MTD 753-05940

TORSION SPRING

$3.99

$

In Stock, only 4 left!

0

4

MTD 753-04042

THROTTLE CONTROL BAIL

$

$

Not available

5

MTD 791-182405

SW, MOMENTARY ON/O

$11.99

$

In Stock, Qty 7

0

6

MTD 753-06050

THROTTLE CABLE

$27.99

$

In Stock, only 3 left!

0

7

MTD 791-182899

BOLT, CARRIAGE CRV

$8.49

$

Usually ships in 3-6 days

0

8

MTD 749-1295A-0637

LOWER HANDLE

$63.99

$

In Stock, only 1 left!

0

9

MTD 791-182677

KNOB, 3-PRONG ? "-

$15.99

$

In Stock, only 1 left!

0

10

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

11

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

12

MTD 753-04055

FRONT HANDLE

$36.99

$

Usually ships in 3-6 days

0

13

MTD 710-0805A

SCREW

$4.99

$

In Stock, Qty 20+

0

14

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

15

MTD 753-04068

PLASTIC WHEEL 5.0X1.38

$17.99

$

Usually ships in 3-6 days

0

16

MTD 753-05988

EDGER TINE

$19.99

$

In Stock, only 1 left!

0

17

MTD 753-06013

COTTER PIN

$4.49

$

Usually ships in 3-6 days

0

18

MTD 753-06015

TINE ASSEMBLY (LH)

$27.99

$

Usually ships in 3-6 days

0

19

MTD 711-1017

CLEVIS PIN

$7.99

$

In Stock, only 1 left!

0

20

MTD 753-05987

TINE ASSEMBLY (LH)I (RH)O

$42.99

$

In Stock, only 2 left!

0

21

MTD 753-06242

BOOM ASSEMBLY CULT

$23.99

$

Usually ships in 3-6 days

0

22

MTD 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

24

MTD 753-06063

GEARBOX ASSEMBLY CULT

$141.99

$

Usually ships in 3-6 days

0

25

MTD 753-05986

TINE ASSEMBLY (LH)O (RH)I

$42.99

$

In Stock, only 2 left!

0

26

MTD 753-06016

TINE ASSEMBLY (RH)

$27.99

$

In Stock, only 4 left!

0

27

MTD 753-04499

SHAFT-FLEX

$31.99

$

In Stock, only 2 left!

0

28

MTD 753-06010

TINE SHEILD RED

$54.99

$

Usually ships in 3-6 days

0

29

MTD 6109

HEX SCREW 1/4-20X.

$4.99

$

Usually ships in 3-6 days

0

30

MTD 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

31

MTD 734-04261

WHEEL 5-1.5 GRAY

$22.99

$

In Stock, only 1 left!

0

32

MTD 753-04063

BRACKET ASSEMBLY

$61.99

$

In Stock, only 1 left!

0

33

MTD 753-04058

TAILPIECE BRACKET ASSEMBLY

$44.99

$

Usually ships in 3-6 days

0

34

MTD 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 16

0

35

MTD 710-3013

HEX SCREW 1/4-20

$4.99

$

In Stock, Qty 7

0
