Y 1642 A - Electrolux/AYP Lawn Tractor (1992) ENGINE Parts Diagram

Lawn Tractor

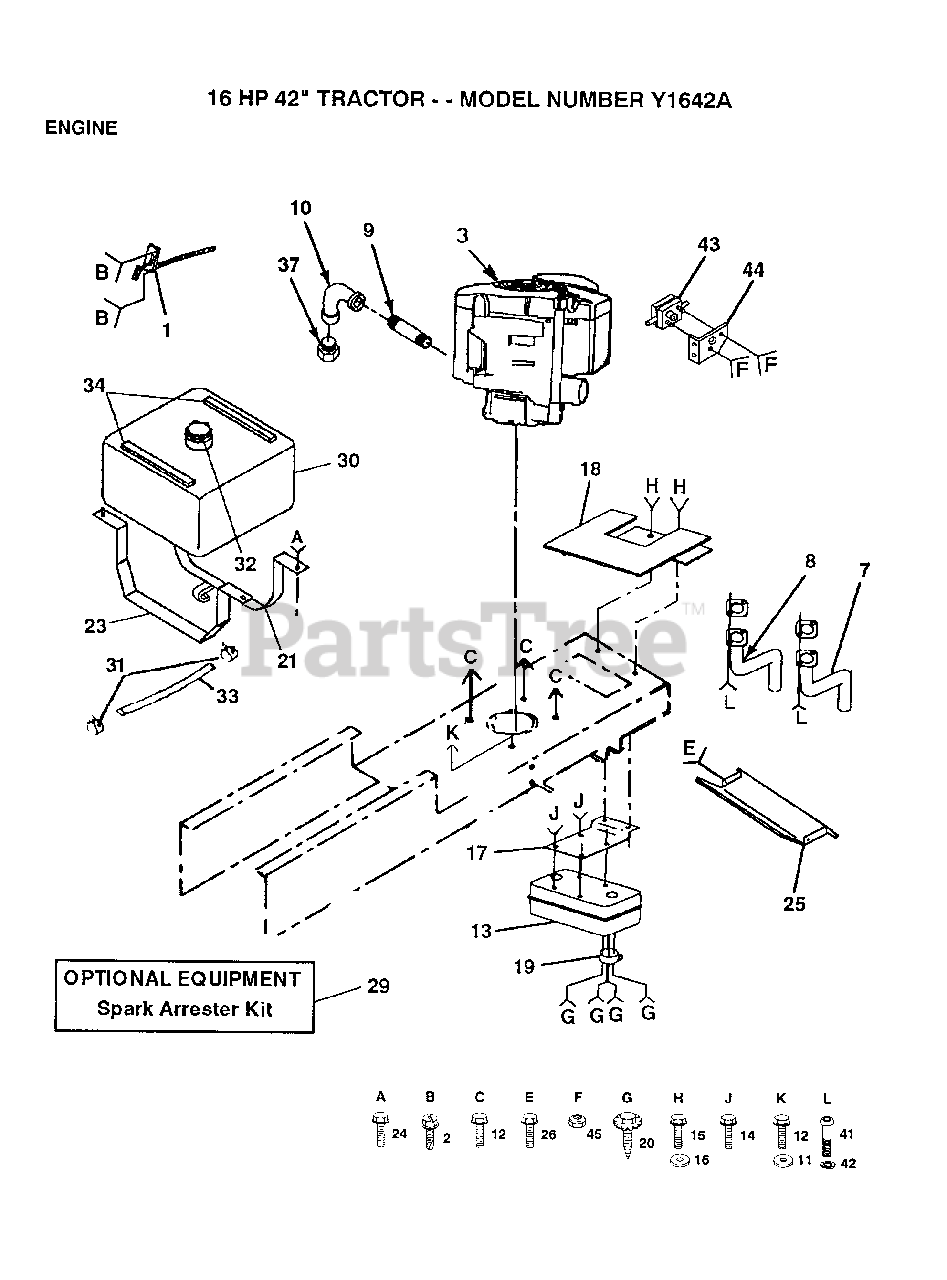

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 134372

THROTTLE CONTROL

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

7

Electrolux/AYP 136216

"TUBE,MANIFOLD RH"
(Superseded to 532136216)

$

$

Not available

8

Electrolux/AYP 136215

"TUBE,MANIFOLD LH"
(Superseded to 532136215)

$

$

Not available

9

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 129464

MUFFLER

$

$

Not available

14

Electrolux/AYP 17190408

SCREW ST
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

16

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 122439X

BRACKET MUFFLER
(Superseded to 532122439)

$

$

Not available

18

Electrolux/AYP 128199

SUB= 145552

$

$

Not available

19

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

20

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

21

Electrolux/AYP 136360

STRAP ASM. F.TANK

$

$

Not available

23

Electrolux/AYP 123803X

"STRAP,TANK"

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

26

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 121851X

SUB= 532137180

$

$

Not available

30

Electrolux/AYP 127813

SUB= 141291

$

$

Not available

31

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, Qty 16

0

32

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

In Stock, Qty 8

0

33

Electrolux/AYP 8542R

FUEL LINE T
(Superseded to 532008542)

$

$

Not available

34

Electrolux/AYP 126564X

"STRIP,FORM"
(Superseded to 583671601)

$2.99

$

Usually ships in 3-10 days

0

37

CHECK WITH SUPPLIER

$

$

Not available

41

Electrolux/AYP 74570512

SCREW
(Superseded to 874570512)

$3.99

$

In Stock, only 4 left!

0

42

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 121366X

FUEL PUMP

$

$

Not available

44

Electrolux/AYP 136217

"BRKT, FUEL PUMP"

$3.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 73631000

SUB= 69180

$

$

Not available
