Y 25 BT (41AD25BT900) - Yard Machines String Trimmer Trimmer - General Assembly Parts Diagram

String Trimmer

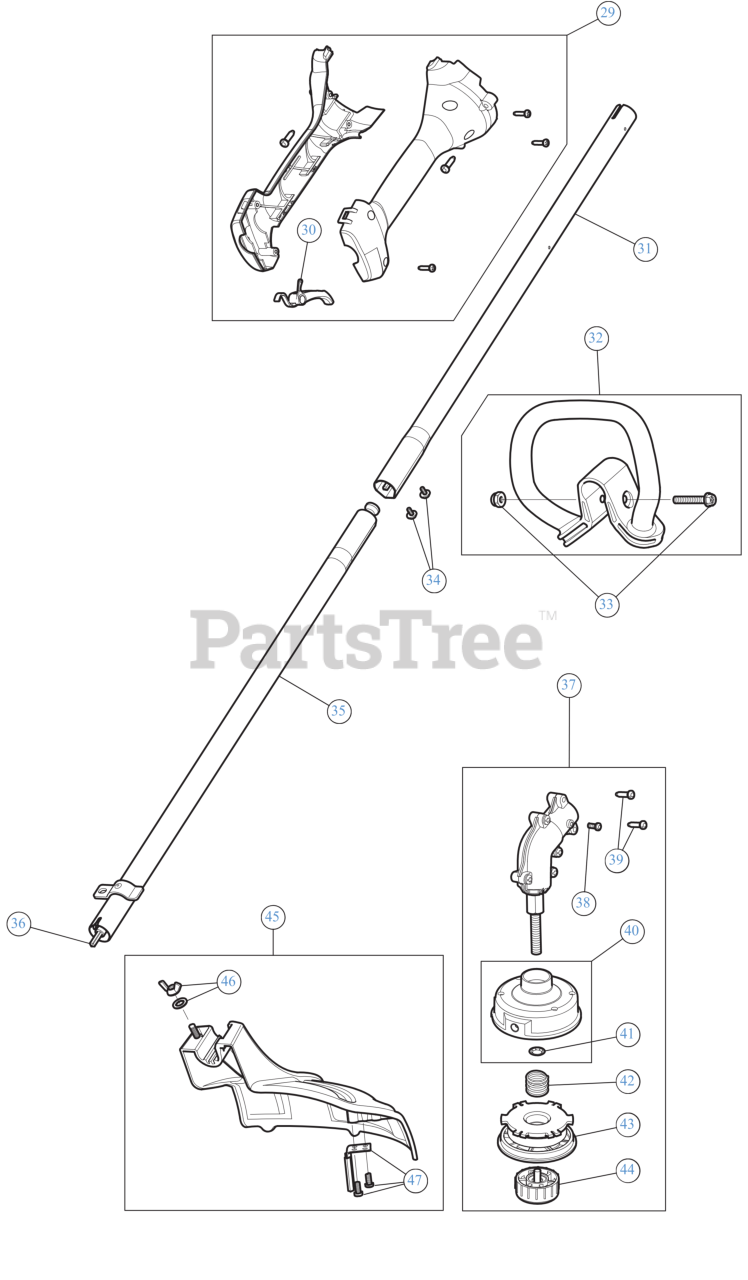

Trimmer - General Assembly Parts Diagram

  • Title

29

MTD 753-09146

THROTTLE GRIP ASSEMBLY

Note: (Incl. 30)

$8.49

$

In Stock, Qty 6

0

30

MTD 731-13693

THROTTLE TRIGGER

$2.99

$

In Stock, Qty 11

0

31

MTD 753-09147

UPPER BOOM ASSEMBLY

$7.49

$

In Stock, Qty 12

0

32

MTD 753-08042

D-HANDLE

Note: (Incl. 33)

$4.99

$

In Stock, Qty 5

0

33

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, Qty 7

0

34

MTD 710-06562

SCREW 8-32X3/8

$2.99

$

In Stock, Qty 20+

0

35

MTD 753-08686

LOWER BOOM ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

36

MTD 711-06722

FLEX SHAFT

$19.99

$

Usually ships in 3-6 days

0

37

MTD 753-11186

GEARBOX

Note: (Incl. 38 - 44)

$40.99

$

Usually ships in 3-6 days

0

38

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

39

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 11

0

40

MTD 753-04284

OUTER REEL W/RETAINING RING

Note: (Incl. 41)

$28.99

$

In Stock, Qty 20+

0

41

MTD 791-610660

RETAINER .625 OD 2

$4.99

$

In Stock, Qty 20+

0

42

MTD 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, Qty 20+

0

43

MTD 753-1155

REEL-INNER SPOOL

$22.99

$

In Stock, Qty 20+

0

44

MTD 791-153066B

BUMP HEAD KNOB ASSEMBLY

$13.99

$

In Stock, Qty 20+

0

45

MTD 753-08360

GUARD & BLADE ASSEMBLY

Note: (Incl. 46 & 47)

$15.99

$

In Stock, Qty 7

0

46

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 3 left!

0

47

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 18

0
