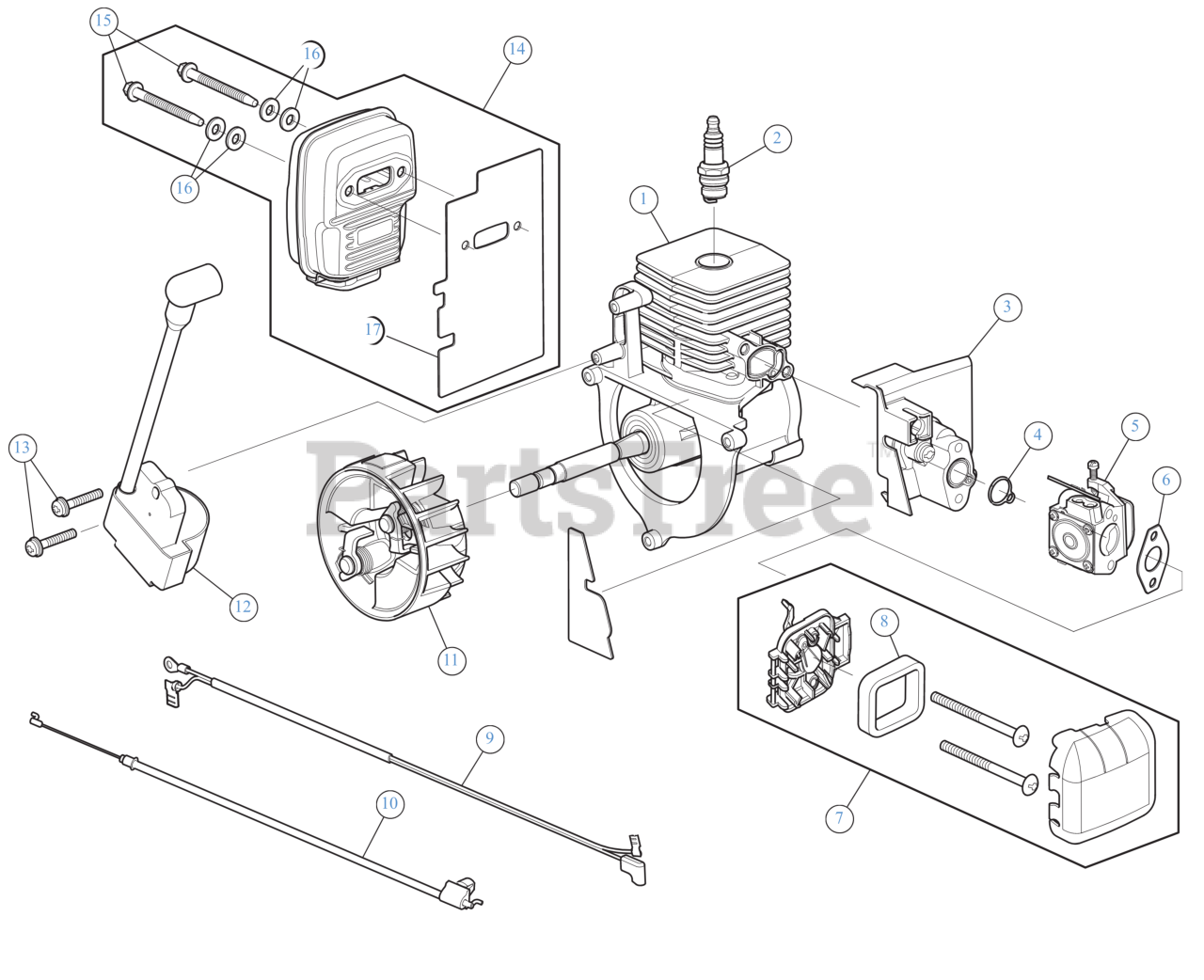

Y 25 PB (41AR25PB900) - Yard Machines Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title

1

MTD 753-08712

SHORT BLOCK

$68.99

$

Usually ships in 3-6 days

0

2

MTD 753-06847

SPARK PLUG

$7.99

$

In Stock, Qty 20+

0

3

MTD 753-06189

INTAKE ASSEMBLY

$8.49

$

In Stock, Qty 19

0

4

MTD 753-06185

O-RING

$3.99

$

In Stock, Qty 18

0

5

MTD 753-06190

CARBURETOR

$37.99

$

In Stock, Qty 20+

0

6

MTD 753-06253

GASKET CARB

$3.99

$

In Stock, Qty 20+

0

7

MTD 753-08498

AIR CLEANER ASSEMBLY

$9.49

$

In Stock, only 2 left!

0

8

MTD 791-181757

AIR FILTER

$4.49

$

In Stock, Qty 11

0

9

MTD 725-06313

WIRE LEAD

$3.49

$

In Stock, only 1 left!

0

10

MTD 746-05226

THROTTLE CABLE

$4.99

$

In Stock, only 2 left!

0

11

MTD 753-08490

FLYWHEEL ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

12

MTD 753-08489

MODULE

$18.99

$

In Stock, Qty 14

0

13

MTD 710-06301

SCREW 8-32X.750

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-08488

MUFFLER ASSEMBLY

Note: (Incl. 15, 16 and 17)

$31.99

$

In Stock, only 1 left!

0

15

MTD 753-06294

MUFFLER SCREW

$3.49

$

In Stock, only 2 left!

0

16

MTD 791-182568

WASH, FLAT .480X.1

$4.49

$

Usually ships in 3-6 days

0

17

MTD 721-04801

GASKET

$3.49

$

Usually ships in 3-6 days

0
