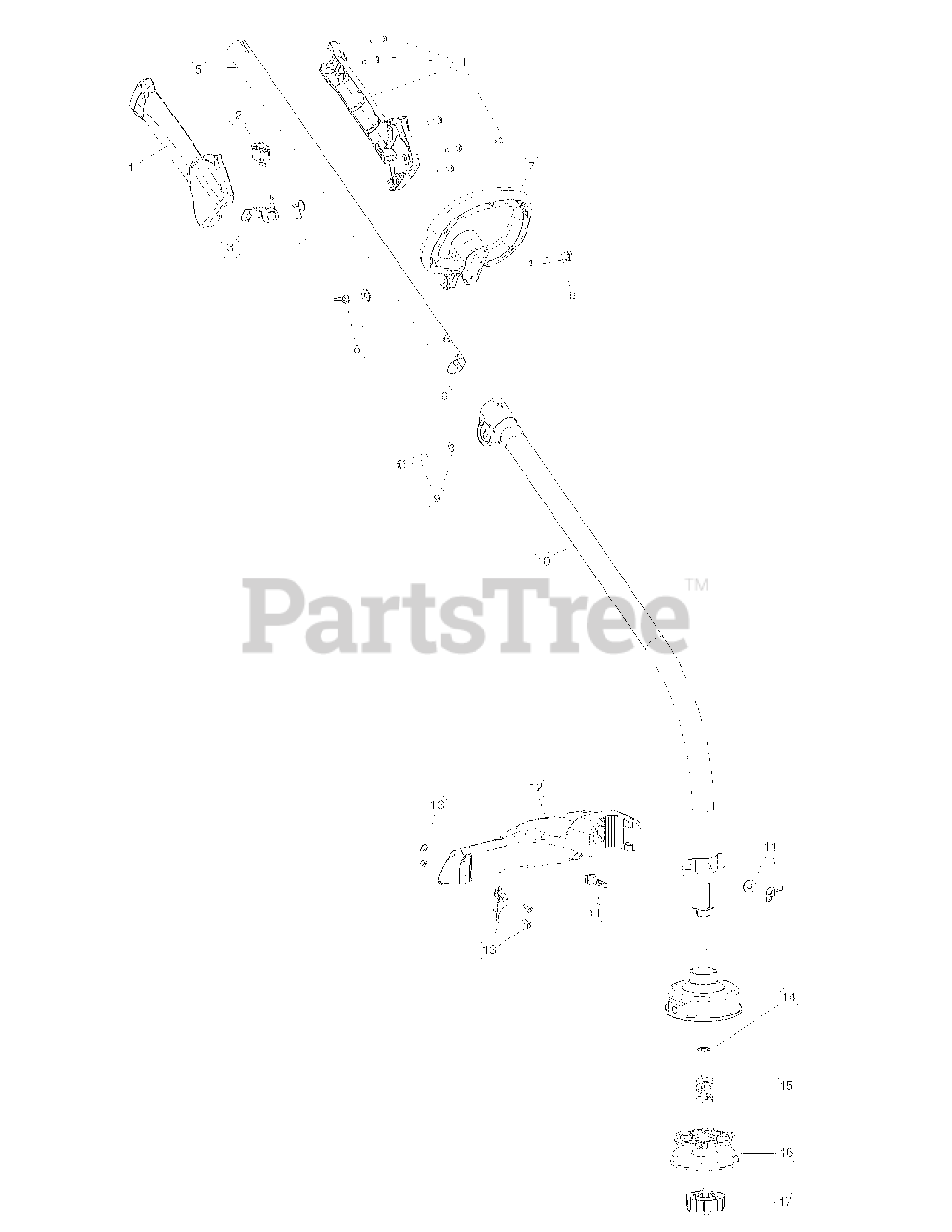

Y 2500 (41AD25CC900) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-1211

Throttle Housing Assembly (Incl. Ref No. 3-4)
(Superseded to 753-04234)

$19.99

$

In Stock, Qty 20+

0

2

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

3

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

4

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

5

MTD 753-06217

Upper Shaft Housing Assembly (Incl. Ref No. 6)

$13.99

$

In Stock, only 1 left!

0

6

MTD 753-06216

Upper Flexible Drive Shaft

$6.99

$

In Stock, Qty 9

0

7

MTD 753-06198

D-Handle (Incl. Ref No. 8)

$4.49

$

Usually ships in 3-6 days

0

8

MTD 753-06199

D-Handle Hardware Assembly

$2.49

$

Usually ships in 3-6 days

0

9

MTD 753-06215

Clamp Hardware

$2.99

$

Usually ships in 3-6 days

0

10

MTD 753-06214

Lower Shaft Housing Assembly (Incl. Ref No. 9 & 14)

$36.99

$

In Stock, Qty 20+

0

11

MTD 753-04282

Shield Mounting Hardware

$23.99

$

In Stock, only 4 left!

0

12

MTD 753-06200

Shield Assembly (Incl. Ref No. 11 & 13)

$22.99

$

In Stock, Qty 6

0

13

MTD 753-05033

Blade Assembly

$8.99

$

Usually ships in 3-6 days

0

14

MTD 753-04284

Outer Spool w/Retainer

$26.99

$

In Stock, Qty 20+

0

15

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

16

MTD 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

17

MTD 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Reel & Line Assembly .080 Line

Note: Not Shown

$26.99

$

In Stock, only 4 left!

0

MTD 753-06276

Allen Wrench

Note: Not Shown

$2.49

$

In Stock, only 2 left!

0
