Y 26 CS (41AD26CC900) - Yard Machines String Trimmer Engine Assembly Parts Diagram

String Trimmer

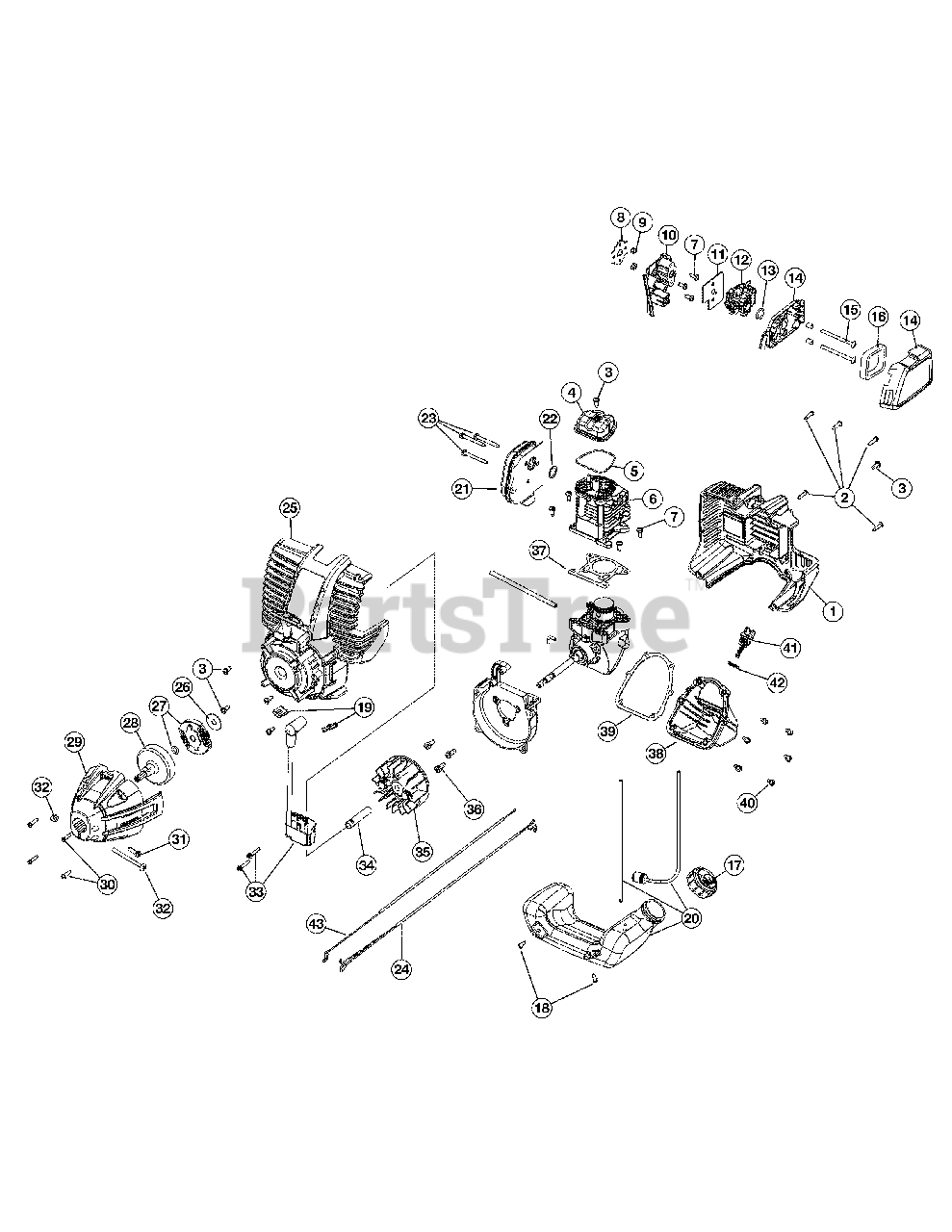

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05449

Engine Cover

$23.99

$

Usually ships in 3-6 days

0

2

MTD 791-181345

Screw

$3.99

$

In Stock, Qty 17

0

3

MTD 710-04604

Screw

$3.99

$

In Stock, Qty 13

0

4

MTD 753-05209

Valve Cover

$18.99

$

Usually ships in 3-6 days

0

5

MTD 721-04132

Valve Cover Gasket

$9.49

$

Usually ships in 3-6 days

0

6

MTD 753-05438

Cylinder Assembly (Incl. Ref No. 5, 7 & 43)

$114.99

$

Usually ships in 3-6 days

0

7

MTD 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

8

MTD 753-05247

Insulator Gasket

$7.99

$

In Stock, Qty 7

0

9

MTD 712-04099

Nut

$6.49

$

In Stock, only 1 left!

0

10

MTD 753-05452

Insulator (Incl. Ref No. 11)

$16.99

$

Usually ships in 3-6 days

0

11

MTD 753-05439

Carburetor Gasket

$

$

Not available

12

MTD 753-1225

Carburetor w/Primer

$66.99

$

In Stock, Qty 16

0

13

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 20+

0

14

MTD 753-06061

Air Filter Cover Assembly (Incl. Ref No. 16)

$

$

Not available

15

MTD 710-04517

Air Filter Mounting Screw

$4.99

$

In Stock, only 3 left!

0

16

MTD 753-05442

Air Filter

$12.99

$

In Stock, Qty 20+

0

17

MTD 753-05289

Fuel Cap

$21.99

$

In Stock, Qty 10

0

18

MTD 791-181930

Screw

$6.49

$

In Stock, Qty 9

0

19

MTD 791-182366

Clip Nut

$5.49

$

In Stock, only 2 left!

0

20

MTD 753-05443

Fuel Tank Assembly (Incl. Ref No. 17)

$

$

Not available

21

MTD 753-05444

Muffler Assembly (Incl. Ref No. 22 & 23)

$43.99

$

Usually ships in 3-6 days

0

22

MTD 753-05244

Muffler Gasket

$5.49

$

In Stock, Qty 11

0

23

MTD 710-04487

Muffler Mounting Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

24

MTD 753-05264

Lead Wire

$15.99

$

In Stock, only 1 left!

0

25

MTD 753-06062

Starter Housing Assembly (Incl. Ref No. 3)

$32.99

$

Usually ships in 3-6 days

0

26

MTD 9162-1

Washer

$4.49

$

In Stock, Qty 8

0

27

MTD 753-1238

Clutch Assembly

$41.99

$

In Stock, Qty 18

0

28

MTD 791-153592

Clutch Drum

$48.99

$

In Stock, Qty 15

0

29

MTD 753-05446

Clutch Cover Assembly (Incl. Ref No. 30-32)

$

$

Not available

30

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

31

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

32

MTD 753-04291

Clamping Screw Assembly

$

$

Not available

33

MTD 753-05243

Ignition Module Assembly
(Superseded to 753-05301)

$105.99

$

Usually ships in 3-6 days

0

34

MTD 750-04434

Spacer

$6.49

$

In Stock, Qty 5

0

35

MTD 753-05240

Flywheel

$71.99

$

In Stock, only 3 left!

0

36

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

37

MTD 791-182374

Cylinder Gasket

$

$

Not available

38

MTD 791-182377

Oil Pan (Incl. Ref No. 39 & 40)

$

$

Not available

39

MTD 791-181018

Oil Pan Gasket

$

$

Not available

40

MTD 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, Qty 5

0

41

MTD 791-182378

Dipstick Assembly (Incl. Ref No. 42)

$9.99

$

Usually ships in 3-6 days

0

42

MTD 791-182290

O-Ring

$4.99

$

Usually ships in 3-6 days

0

43

MTD 753-05266

Throttle Cable

$19.99

$

In Stock, Qty 20+

0

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

MTD 753-06117

Shortblock Assembly (Incl. Ref No. 3-7 & 33-42)

Note: Not Shown

$

$

Not available
