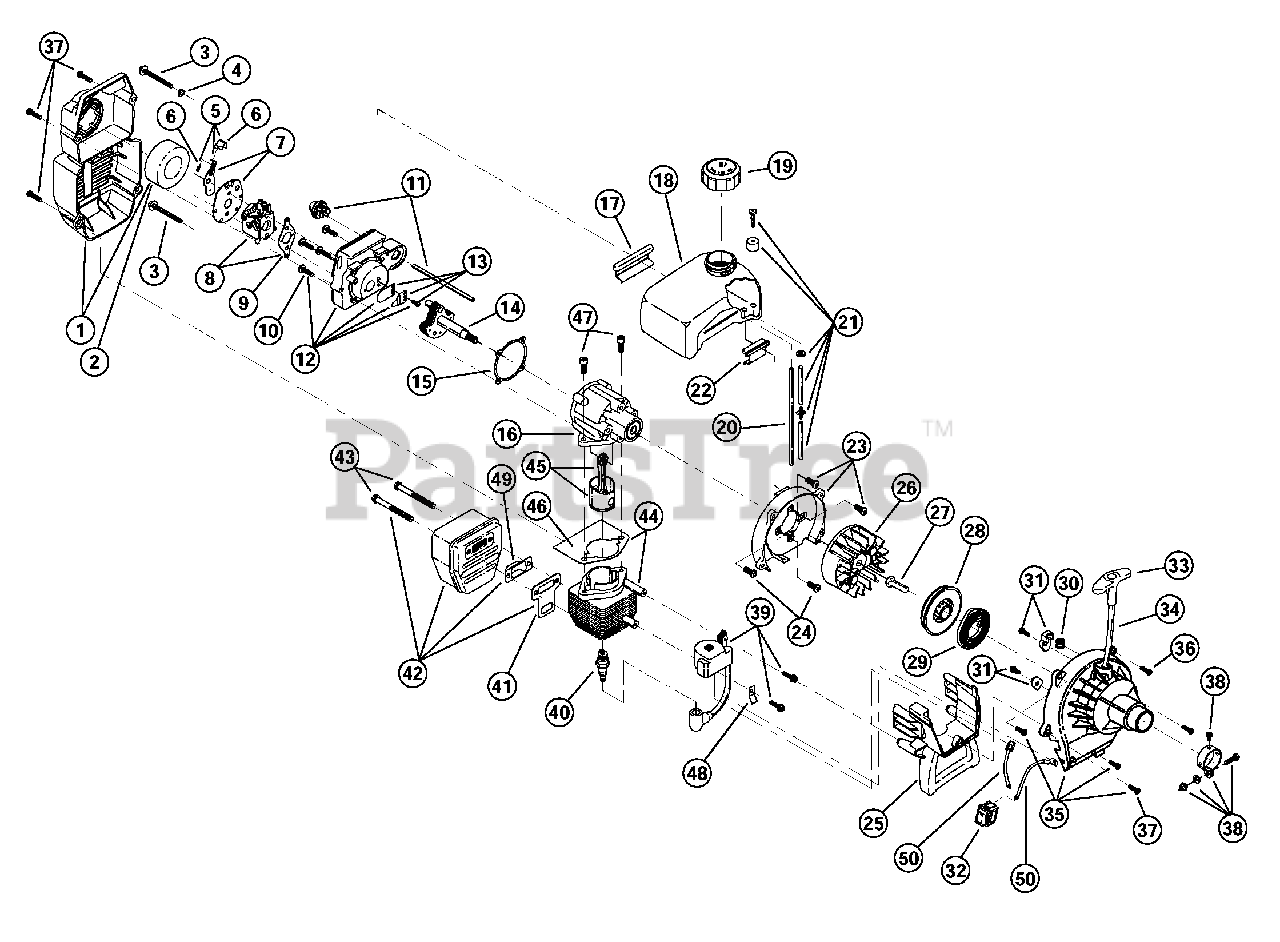

Y 28 (41ADY28G000) - Yard Machines String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (Incl. Ref No. 2 & 37)

$41.99

$

In Stock, only 1 left!

0

2

MTD 791-180350B

Air Cleaner Filter

$10.99

$

In Stock, Qty 5

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.99

$

In Stock, Qty 8

0

5

MTD 791-182201

Choke Lever Assembly

Note: (Incl. Ref No. 6)

$

$

Currently unavailable

6

MTD 791-182202

Choke Knob and Screw

$

$

Not available

7

MTD 791-182203

Choke Lever and Plate

Note: (Incl. Ref No. 5)

$

$

Currently unavailable

8

MTD 791-182875

Carburetor Assembly W/Limiter Caps

Note: (Incl. Ref No. 9 & 21)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$

$

Not available

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$24.99

$

In Stock, Qty 9

0

12

MTD 791-182063

Carb Mount Assembly
(Superseded to 753-1196)

Note: (Incl. Ref No. 10, 13, 15)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 791-181866

Power Shaft Assembly

$

$

Not available

15

MTD 791-612115

Carburetor Mount Gasket
(Superseded to 753-1208)

$17.99

$

In Stock, Qty 6

0

16

MTD 791-181865

Crank Case Service Assembly
(Superseded to 753-04272)

Note: (Incl. Ref No. 10, 14 & 24)

$

$

Not available

17

MTD 791-612134

Rear Mounting Pad

$

$

Not available

18

MTD 791-181908

Fuel Tank Assembly

Note: (Incl. Ref No. 19-21)

$

$

Not available

19

MTD 791-160187

Fuel Cap Assembly
(Superseded to 753-04084)

$22.99

$

Usually ships in 3-6 days

0

20

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 9

0

21

MTD 791-682039

Fuel Line Assembly

$17.99

$

In Stock, Qty 15

0

22

MTD 791-145308

Front Mounting Pad

$

$

Not available

23

MTD 791-153520

Shroud Assembly

$

$

Not available

24

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

25

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

26

MTD 791-181867

Flywheel Assembly
(Superseded to 753-05240)

$81.99

$

In Stock, only 2 left!

0

27

MTD 791-610303

Nut

$

$

Not available

28

MTD 791-181597

Recoil Pulley Assembly
(Superseded to 753-04232)

$

$

Not available

29

MTD 791-613102

Recoil Spring

$27.99

$

Usually ships in 3-6 days

0

30

MTD 791-611061

Rope Guide

$11.99

$

In Stock, only 2 left!

0

31

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

32A

MTD 791-182673

Positive Switch

$11.99

$

In Stock, only 2 left!

0

32B

MTD 791-182441

Momentary Switch

$

$

Not available

33

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$4.49

$

In Stock, Qty 7

0

34

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

35

MTD 791-182721

Starter Housing Assembly

Note: (Incl. Ref No. 28-31, 33-34, 36-37)

$

$

Not available

36

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

37

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 1 left!

0

38

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

39A

MTD 791-182879

Governed Module Assembly

$

$

Currently unavailable

39B

MTD 791-791-00056

Pulse Module Assembly

$

$

Currently unavailable

40

MTD 791-147095

Spark Plug
(Superseded to 791-610311B)

$15.99

$

In Stock, Qty 5

0

41

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$9.99

$

In Stock, only 3 left!

0

42

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (Incl. Ref No. 41 & 43)

$118.99

$

Usually ships in 3-6 days

0

43

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

44

MTD 791-181622

Cylinder Assembly
(Superseded to 753-04814)

Note: (Incl. Ref No. 43, 46 & 47)

$88.99

$

In Stock, only 1 left!

0

45

MTD 791-684449

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

46

MTD 791-610674

Cylinder Gasket

$4.49

$

Usually ships in 3-6 days

0

47

MTD 791-182723

Cylinder Bolt

$4.99

$

In Stock, Qty 11

0

48

MTD 791-611063

Male Tab

Note: (For use with 32A & 39B only)

$

$

Not available

49

MTD 791-182747

Spark Arrestor

$

$

Not available

50

MTD 791-181936

Lead Wires

$

$

Not available

MTD 791-182067

Engine Gasket Kit
(Superseded to 753-04134)

Note: Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: Not Shown

$71.99

$

Usually ships in 3-6 days

0

MTD 791-180090

O.E.M. Carburetor Repair Kit (Zama)

Note: Not Shown

$63.99

$

Usually ships in 3-6 days

0

MTD 791-181069

Gasket Diaphragm Repair Kit (Walbro)

Note: Not Shown

$42.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit (Zama)

Note: Not Shown

$34.99

$

Usually ships in 3-6 days

0

MTD 791-180530

Piston Ring

Note: Not Shown

$

$

Not available

MTD 791-181863

Short Block Assembly

Note: Not Shown (Incl. Ref No. 10, 14, 16, 24, 40, 44-47)

$

$

Not available

MTD 791-181501

Starter Housing Screw Set

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0

MTD 791-610309

Crankcase Seal

Note: Not Shown

$

$

Not available
