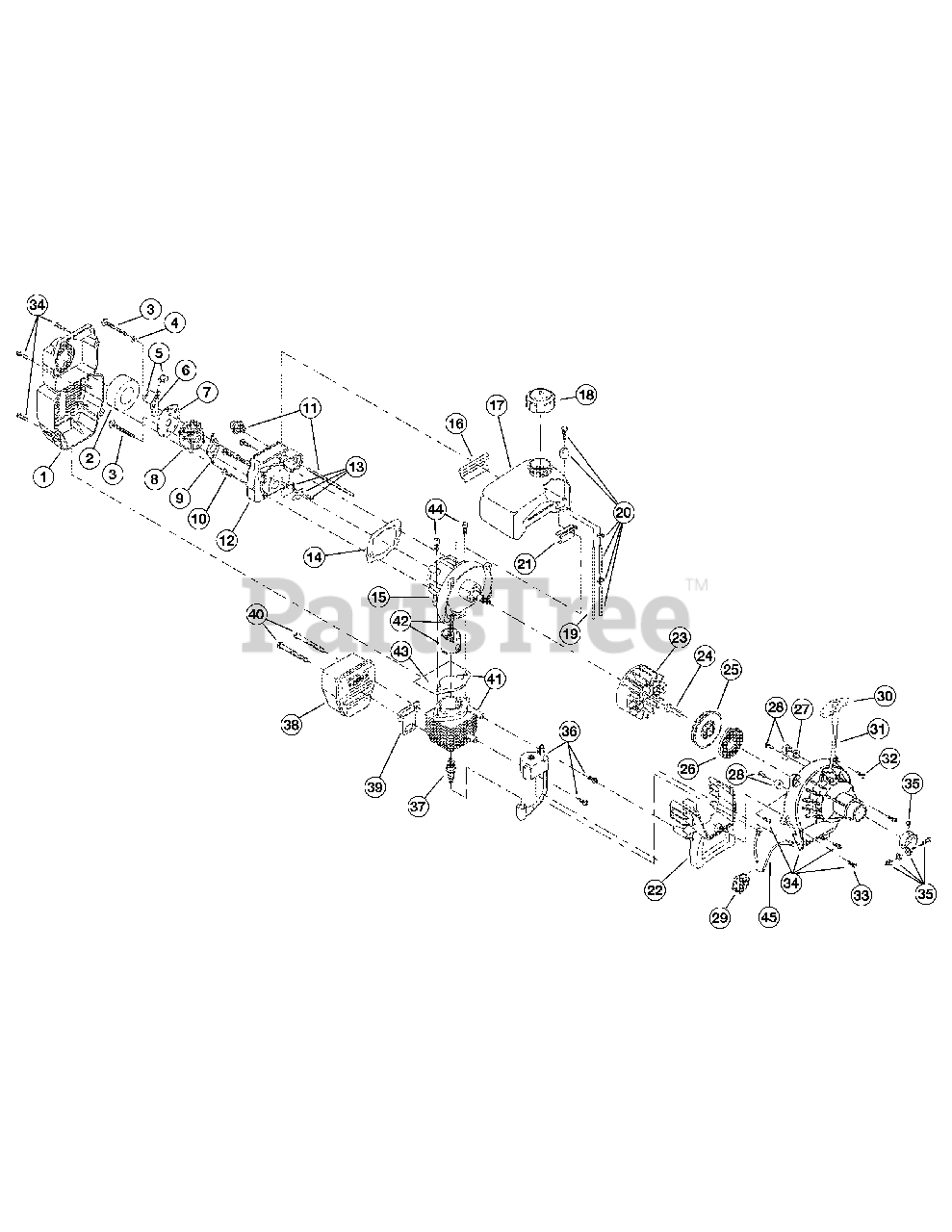

Y 28 (41ADY28G900) - Yard Machines String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (includes 2 & 34)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, Qty 8

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182202

Choke Knob Assembly

$15.99

$

Usually ships in 3-6 days

0

6

MTD 753-04418

Choke Lever Assembly (includes 5)

$10.99

$

Usually ships in 3-6 days

0

7

MTD 753-04419

Choke Plate Assembly (includes 6)

$

$

Not available

8

MTD 753-04408

Carburetor Assembly (includes 9, 19 & 20)

$71.99

$

In Stock, only 2 left!

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly (includes 10 & 13)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 3 left!

0

15

MTD 753-04321

Crank Case Service Assembly (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04306

Fuel Tank Assembly (includes 19-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 18

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 753-04702

Shroud Extension and Stand

$29.99

$

Usually ships in 3-6 days

0

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 3 left!

0

24

MTD 791-610303

Nut

$

$

Not available

25

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, Qty 5

0

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

29

MTD 791-182441

Momentary Switch

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 3 left!

0

32

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 17

0

34

MTD 753-04342

Starter Housing Assembly (includes 25-28, 30-33)

$

$

Not available

35

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

36

MTD 753-04336

Module Assembly MA-57 792-10527A (mfg date 6/21/05 and prior)

$107.99

$

Usually ships in 3-6 days

0

36

MTD 753-04109

Module Assembly M-56 7181B (mfg date 6/21/05 and after)

$

$

Not available

37

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, Qty 7

0

38

MTD 753-04618

Muffler Assembly (includes 39 & 40)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

39

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

40

MTD 7953-04620

Muffler Mounting Bolts

$

$

Currently unavailable

41

MTD 753-04814

Cylinder Assembly (includes 43)

$83.99

$

In Stock, only 1 left!

0

42

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

43

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

44

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

45

MTD 791-181936

Lead Wires

$

$

Not available

MTD 753-04689

Spark Arrestor Items Not Shown)

$

$

Not available

MTD 753-04134

Engine Gasket Kit (Items Not Shown)

$

$

Not available

MTD 753-1209

Piston Ring (Items Not Shown)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04826

Short Block Assembly (includes 10, 15, 37, 41-45)

$195.99

$

Usually ships in 3-6 days

0
