Y 28 (41BDY28G000) - Yard Machines String Trimmer Boom & Trimmer Parts Parts Diagram

String Trimmer

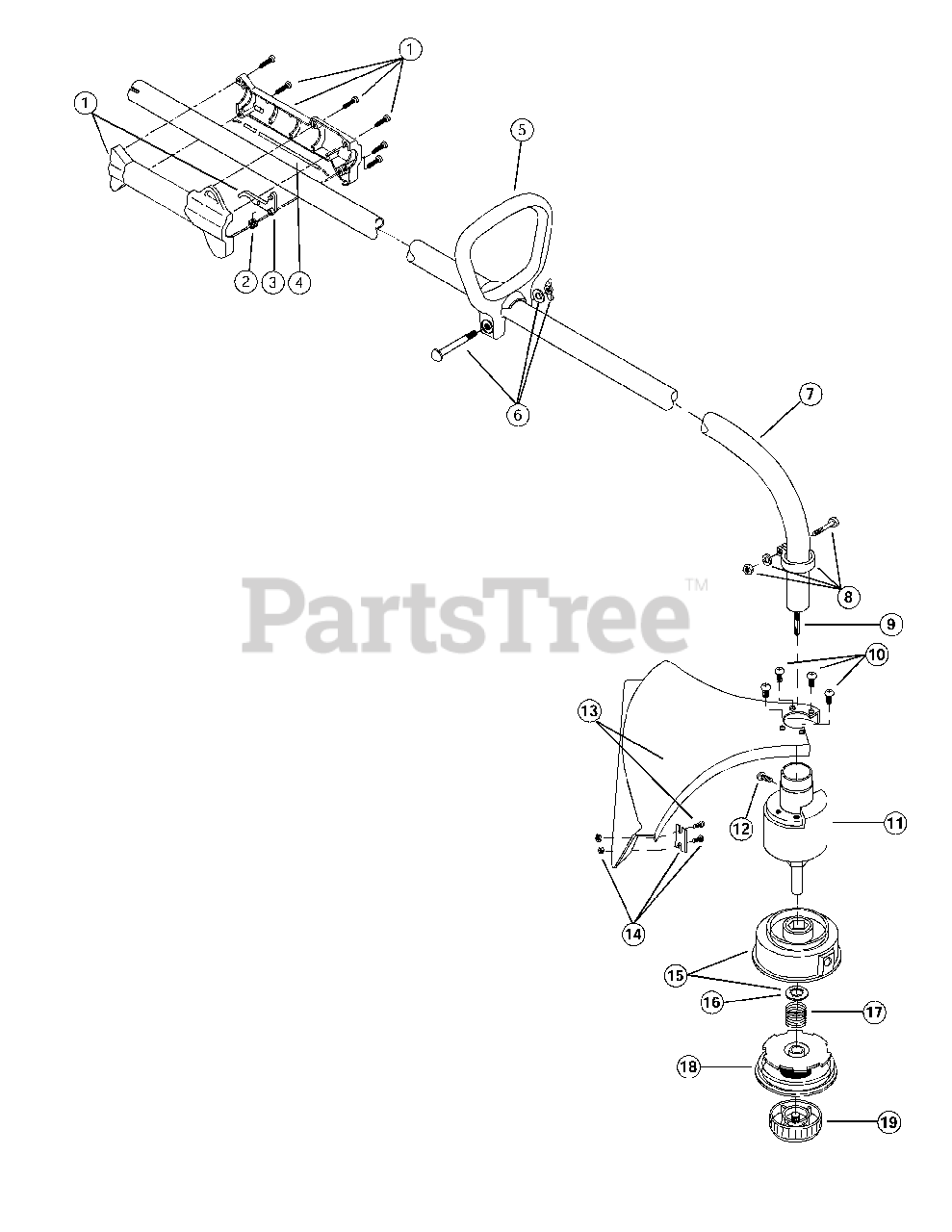

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 791-00059

Throttle Housing and Trigger Assembly
(Superseded to 753-04279)

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

MTD 791-181807

Throttle Trigger

$10.99

$

In Stock, Qty 6

0

4

MTD 791-182068

Throttle Cable Assembly

$21.99

$

Usually ships in 3-6 days

0

5

MTD 791-153064

D-Handle Assembly

Note: (includes 6)

$

$

Not available

6

MTD 791-181587

D-Handle Hardware

$20.99

$

In Stock, only 1 left!

0

7

MTD 7911-181893

Drive Housing

$

$

Currently unavailable

8

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

9

MTD 753-04280

Flexshaft

$86.99

$

Usually ships in 3-6 days

0

10

MTD 791-180531

Shield Mounting Screw Assembly
(Superseded to 791-181858)

$

$

Not available

11

MTD 791-181784

Bushing Housing Assembly with Spool Shaft

$

$

Not available

12

MTD 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

13

MTD 791-683274

Shield & Blade Assembly

Note: (includes 14)

$38.99

$

In Stock, only 2 left!

0

14

MTD 791-682061

Blade Assembly

$15.99

$

In Stock, only 2 left!

0

15

MTD 791-153619

Outer Spool & Eyelet

Note: (includes 16)

$29.99

$

Usually ships in 3-6 days

0

16

MTD 791-610660

Retainer

$5.49

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

18

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$24.99

$

In Stock, Qty 20+

0

19

MTD 791-153066B

Bump Head (TM) Assembly

$14.99

$

In Stock, Qty 20+

0

MTD 791-610375

Replacement Line

Note: Optional Accessory; Not Shown

$

$

Not available

MTD 791-153577B

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$29.99

$

In Stock, only 2 left!

0

MTD 791-180897B

Bump Head (TM) Assembly

Note: Optional Accessory; (includes 15-19); Not Shown

$79.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap

Note: Optional Accessory; Not Shown

$41.99

$

Usually ships in 3-6 days

0
