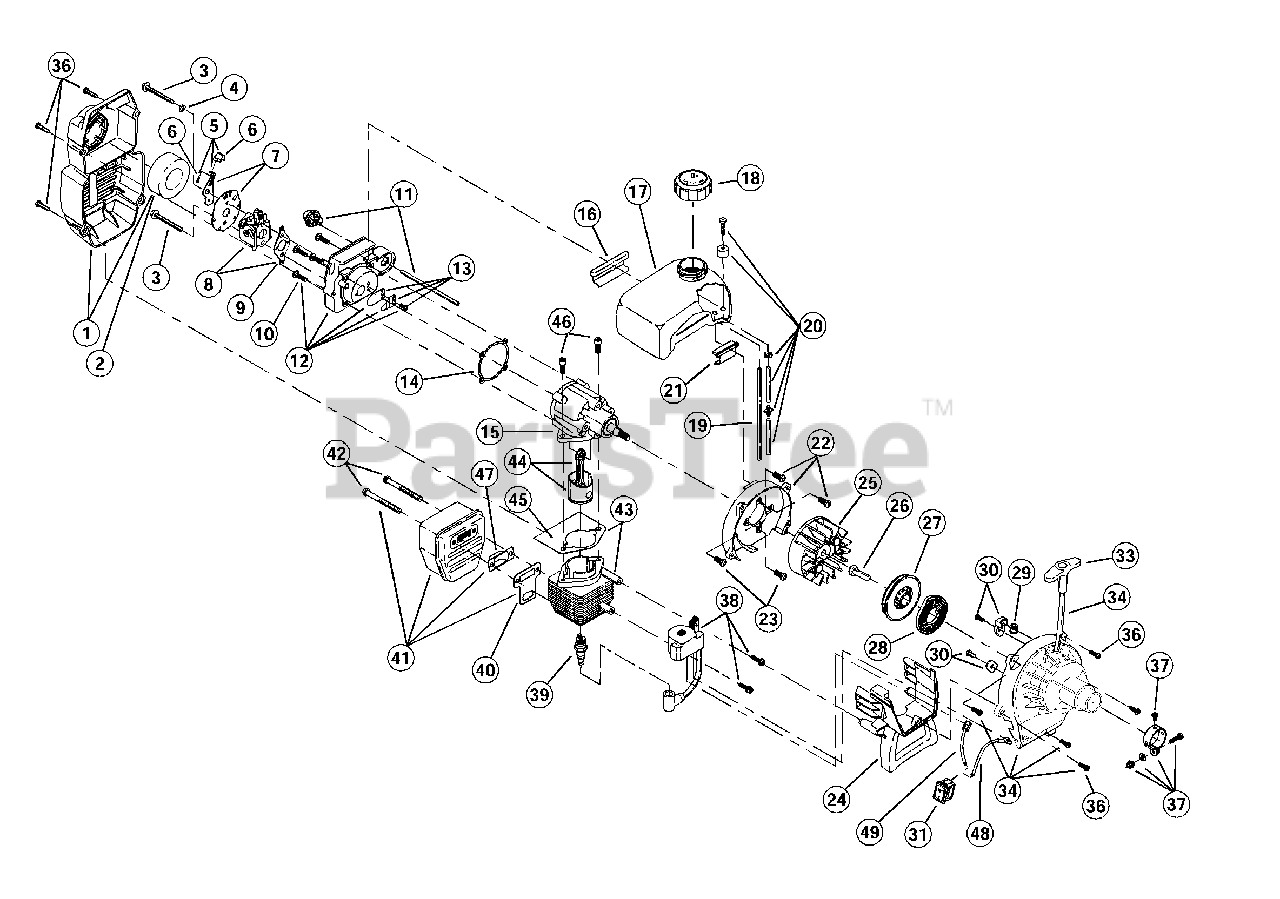

Y 28 (41BDY28G000) - Yard Machines String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 36)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 781-180226

Wavey Washer

$

$

Currently unavailable

5

MTD 791-182201

Choke Lever Assembly

Note: (includes 6)

$

$

Currently unavailable

6

MTD 791-182161

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182203

Choke Lever and Plate

Note: (includes 5)

$

$

Currently unavailable

8

MTD 753-04144

Carburetor Assembly W/Limiter Caps
(Superseded to 753-04408)

Note: (includes 9 & 21)

$66.99

$

In Stock, only 2 left!

0

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13, 15)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

15

MTD 791-181865

Crank Case Service Assembly
(Superseded to 753-04272)

Note: (includes 10, 14 & 24)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04306

Fuel Tank Assembly

Note: (includes 19-21)

$

$

Not available

18

MTD 791-160187

Fuel Cap Assembly
(Superseded to 753-04084)

$21.99

$

Usually ships in 3-6 days

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

26

MTD 791-610303

Nut

$

$

Not available

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

31

MTD 791-182441

Momentary Switch

$

$

Not available

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

33

MTD 791-613103

Rope

$9.99

$

In Stock, only 3 left!

0

34

MTD 753-04342

Starter Housing Assembly

Note: (includes 28-31, 33-34, 36, 37)

$

$

Not available

35

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

37

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

38

MTD 753-1205

Governed Module Assembly

$96.99

$

Usually ships in 3-6 days

0

39

MTD 791-147095

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

40

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

41

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 41 & 43)

$104.99

$

Usually ships in 3-6 days

0

42

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

43

MTD 753-1206

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 43, 46 & 47)

$78.99

$

In Stock, only 1 left!

0

44

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

45

MTD 753-1197

Cylinder Gasket

$

$

Not available

46

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

47

MTD 791-182747

Spark Arrestor

$

$

Not available

48

MTD 791-181936

Lead Wires

$

$

Not available

MTD 753-04134

Engine Gasket Kit

Note: Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: Not Shown

$66.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Not Shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04173

Short Block Assembly

Note: (includes 10, 14, 16, 24, 40, 44-47); Not Shown

$

$

Not available
