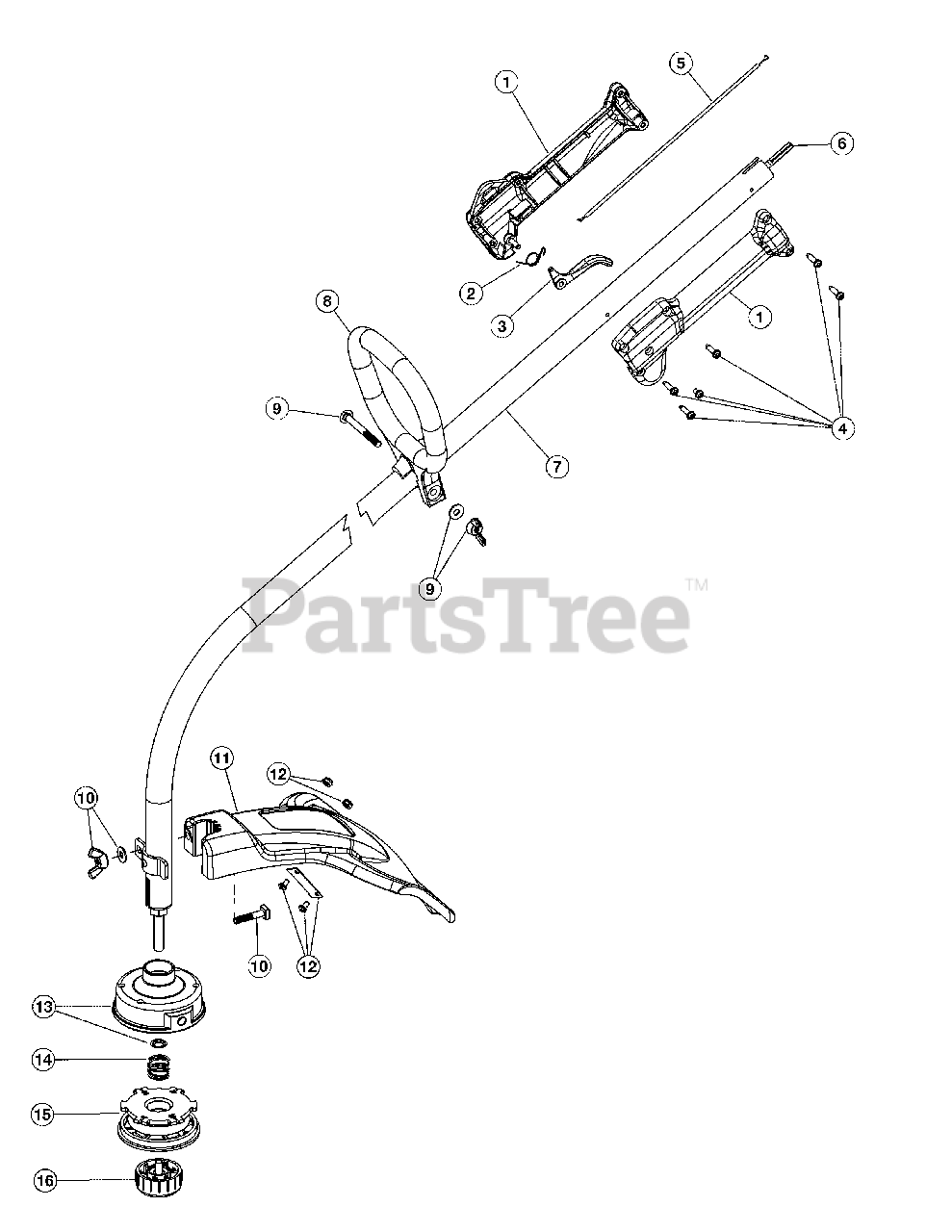

Y 28 VP (41ADYVPG900) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04927

Throttle Housing and Trigger Assembly

Note: (Incl. Ref No. 2-4)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

MTD 791-181807

Throttle Trigger

$10.99

$

In Stock, only 2 left!

0

4

MTD 753-04917

Throttle Housing Screws

$

$

Not available

5

MTD 753-04901

Throttle Cable

$9.49

$

In Stock, only 1 left!

0

6

MTD 753-04280

Flexible Drive Shaft

$86.99

$

Usually ships in 3-6 days

0

7

MTD 753-04921

Drive Shaft Housing

$

$

Not available

8

MTD 791-153064

D-Handle Assembly

Note: (Incl. Ref No. 9)

$

$

Not available

9

MTD 791-181587

D-Handle Hardware

$20.99

$

Usually ships in 3-6 days

0

10

MTD 753-04282

Guard Mounting Hardware

$27.99

$

In Stock, only 3 left!

0

11

MTD 753-04283

Guard

$54.99

$

In Stock, only 1 left!

0

12

MTD 791-180553

Blade Assembly

$15.99

$

In Stock, Qty 5

0

13

MTD 753-04284

Outer Reel w/Retainer

$29.99

$

In Stock, Qty 17

0

14

MTD 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

15

MTD 753-1155

Inner Reel

$24.99

$

In Stock, Qty 16

0

16

MTD 791-153066B

Bump Knob

$14.99

$

In Stock, Qty 19

0

MTD 753-04281

Drive Shaft Housing Assembly

Note: Not Shown (Incl. Ref No. 6, 7 & 13)

$

$

Not available

MTD 791-153577B

Inner Reel and Line

Note: Not Shown

$29.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Not Shown

$41.99

$

Usually ships in 3-6 days

0
