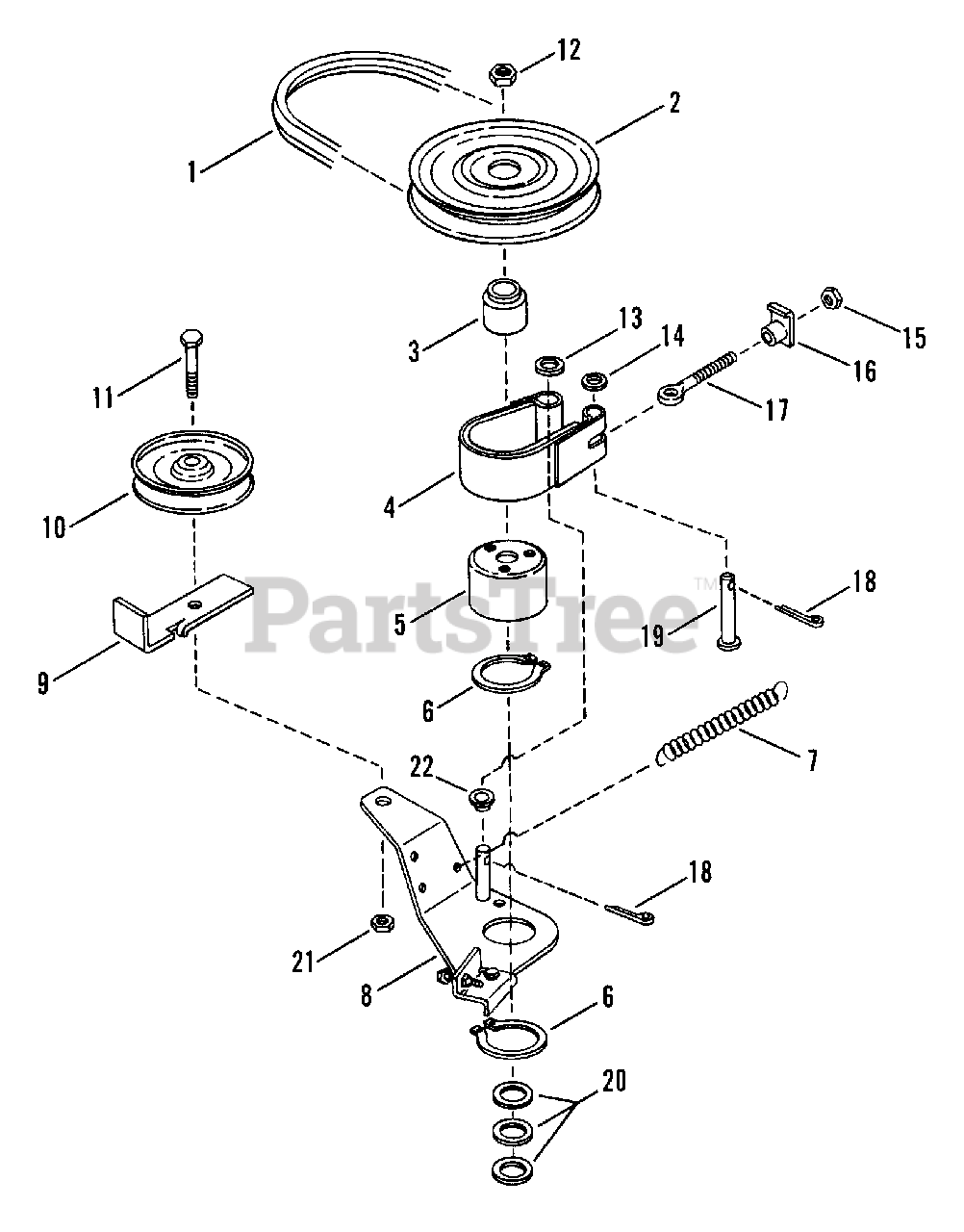

Y 30081B (80168) - Snapper 30" Walk-Behind Mower, 8hp Belt, Brake, Idler Arm Parts Diagram

30" Walk-Behind Mower, 8hp

Belt, Brake, Idler Arm Parts Diagram

  • Title

1

Snapper 7015757

BELT, Blade
(Superseded to 7015757YP)

$50.99

$

Usually ships in 2-12 days

0

2

Snapper 7018781

PULLEY, Spindle
(Superseded to 7018781BMYP)

$45.99

$

In Stock, only 2 left!

0

3

Snapper 7015290

HUB, Pulley
(Superseded to 7015290YP)

$6.49

$

In Stock, only 2 left!

0

4

Snapper 7052886

BAND, Brake Assembly
(Superseded to 7503086YP)

Note: Was 57307

$38.99

$

In Stock, only 2 left!

0

5

Snapper 7032169

DRUM, Blade Brake
(Superseded to 7035378YP)

$12.99

$

In Stock, Qty 8

0

6

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.99

$

In Stock, Qty 18

0

7

Snapper 7015926

SPRING, Blade Brake
(Superseded to 7015926YP)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 7057487

ASSEMBLY, Idler Arm
(Superseded to 7057487YP)

$

$

Not available

9

Snapper 7032111

RESTRICTOR, Belt
(Superseded to 7032111YP)

$7.49

$

In Stock, Qty 7

0

10

Snapper 7018574

PULLEY, Idler
(Superseded to 7018574SM)

$40.99

$

In Stock, Qty 20+

0

11

Snapper 7090161

SCREW, 3/8-24 x 1-3/4" Hex Head Cap
(Superseded to 703866)

$4.49

$

In Stock, Qty 5

0

12

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 13

0

16

Snapper 7014303

TEE-NUT, 1/4-20
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

17

Snapper 7014302

EYE-BOLT, 1/4-20
(Superseded to 7014302YP)

$4.99

$

In Stock, only 3 left!

0

18

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 91082

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7014304

PIN, 1/4 Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7010935

WASHER
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 20+

0

22

Snapper 7014314

SPACER
(Superseded to 7014314YP)

$5.49

$

Usually ships in 2-12 days

0
