Y 700 (41AD7VPG900) - Yard Machines String Trimmer Boom & Trimmer Parts Parts Diagram

String Trimmer

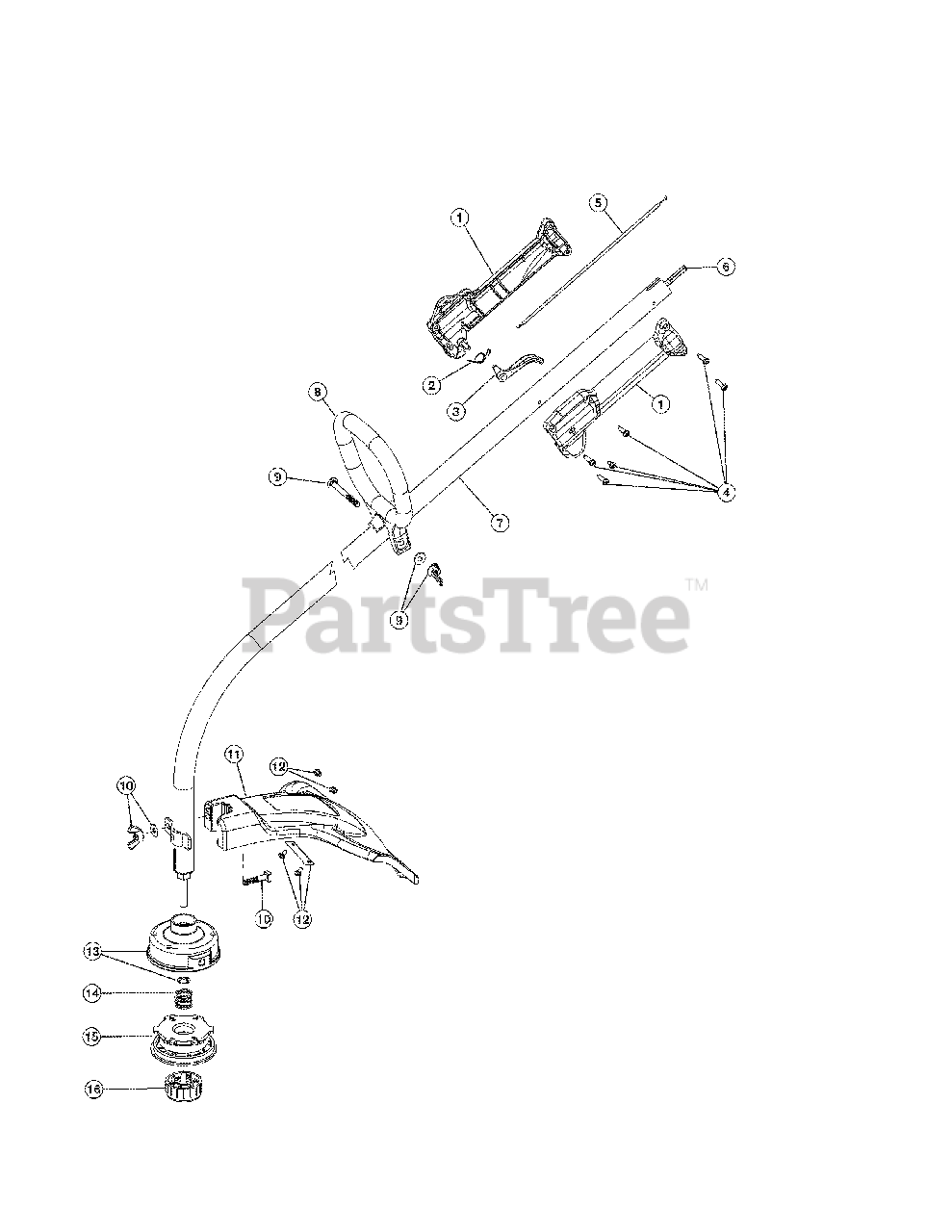

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04927

Throttle Housing Assembly (includes 2-4)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 9

0

4

MTD 753-04917

Throttle Housing Screws

$

$

Not available

5

MTD 753-04405

Throttle Cable

$7.99

$

In Stock, only 1 left!

0

6

MTD 753-04280

Flexible Drive Shaft

$81.99

$

Usually ships in 3-6 days

0

7

MTD 753-05052

Drive Shaft Housing

$

$

Not available

8

MTD 791-153064

D-Handle Assembly (includes 9)

$

$

Not available

9

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

10

MTD 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 3 left!

0

11

MTD 753-04283

Guard

$50.99

$

In Stock, only 3 left!

0

12

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

13

MTD 753-04284

Outer Reel w/Retainer

$28.99

$

In Stock, Qty 20+

0

14

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

15

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

16

MTD 791-153066B

Bump Knob

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Inner Reel and Line (NOT SHOWN)

Note: Opional Accessories

$28.99

$

In Stock, only 3 left!

0

MTD 791-682075B

Shoulder Strap Assembly (NOT SHOWN)

Note: Opional Accessories

$38.99

$

Usually ships in 3-6 days

0
