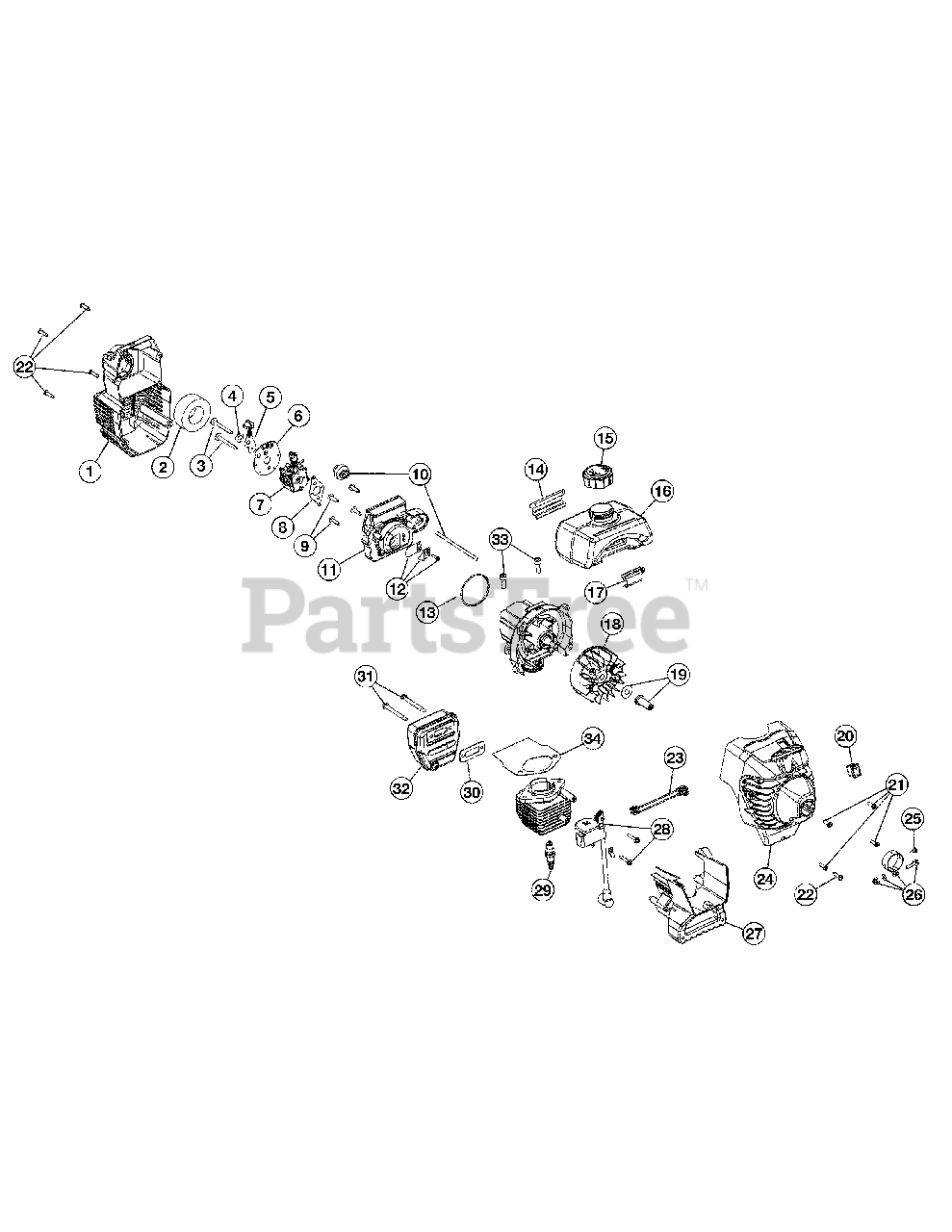

Y 765 (41DD765G900) - Yard Machines String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (Incl. Ref No. 2 & 22)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, Qty 8

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 936-0271

Wavey Washer

$4.49

$

In Stock, Qty 12

0

5

MTD 753-04418

Choke Lever Assembly

$10.99

$

Usually ships in 3-6 days

0

6

MTD 753-04419

Choke Lever & Plate (Incl. Ref No. 5)

$

$

Not available

7

MTD 753-04408

Carburetor Assembly (Incl. Ref No. 8 & 18)

$71.99

$

In Stock, only 2 left!

0

8

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 20+

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 20+

0

11

MTD 753-1196

Carburetor Mount Assembly (Incl. Ref No. 9, 12 & 13)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 721-04163

O-Ring

$3.99

$

In Stock, Qty 8

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 18

0

16

MTD 791-182767

Fuel Tank Assembly (Incl. Ref No. 15)

$

$

Not available

17

MTD 791-145308

Front Mounting Pad

$

$

Not available

18

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 3 left!

0

19

MTD 791-610303

Square Nut Drive

$

$

Not available

20

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 20+

0

21

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

22

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 17

0

23

MTD 794-00028

Wire Lead

$9.49

$

Usually ships in 3-6 days

0

24

MTD 753-06169

Starter Housing Assembly (Incl. Ref No. 20-23)

$

$

Not available

25

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

26

MTD 753-05056

Clamp Assembly (Incl. Ref No. 25)

$

$

Not available

27

MTD 753-05091

Shroud Extension and Stand (Incl. Ref No. 22)

$19.99

$

Usually ships in 3-6 days

0

28

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

29

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, Qty 7

0

30

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

31

MTD 710-04188A

Muffler Mounting Bolt Assembly

$4.49

$

Usually ships in 3-6 days

0

32

MTD 753-05169

Muffler Assembly (Incl. Ref No. 30 & 31)

$112.99

$

Usually ships in 3-6 days

0

33

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

34

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04826

Short Block Assembly (Incl. Ref No. 9, 29, 33 & 34)

Note: Not Shown

$195.99

$

Usually ships in 3-6 days

0
